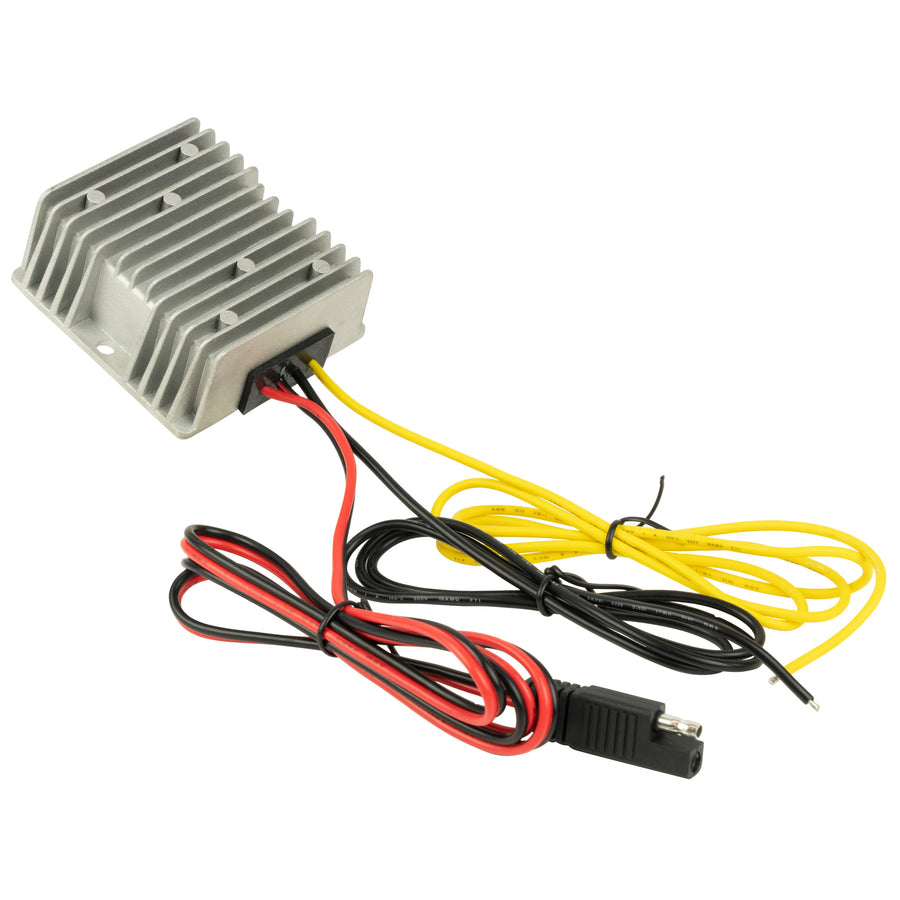

GDS® 24-60VDC Input (12VDC Output) Hardwire Charger With SAE Connector

Always Protected. Always Connected.®
Part#: RAM-GDS-CHARGE-V16U
UPC: 793442007262
$51.99

Overview

This hardwire charger (RAM-GDS-CHARGE-V16U) is a 24VDC-60VDC swappable hardwire charger for the RAM® Temp-Right™ heater module needing an upgrade in power compatibility. Always Protected. Always Connected.®

Features

  • 24VDC-60VDC swappable hardwire charger for the RAM® Temp-Right™ heater module
  • Backed by a 3-year warranty

packaging type:

Poly Bag

input voltage:

24-60VDC

output voltage:

12VDC

output current:

7A max

input connector:

SAE Connector

input cable length:

1 Meter

output cable length:

1 Meter

operating temperature:

-10°C to +70°C

storage temperature:

-20°C to +80°C

regulatory:

Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Over Current (Input) Protection
Over Load Protection
Auto Recovery
RoHS Compliance
WEEE Compliance
FCC, CE

Warranty:

3 year warranty

Weight:

0.75 lb

Additional Information:

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
