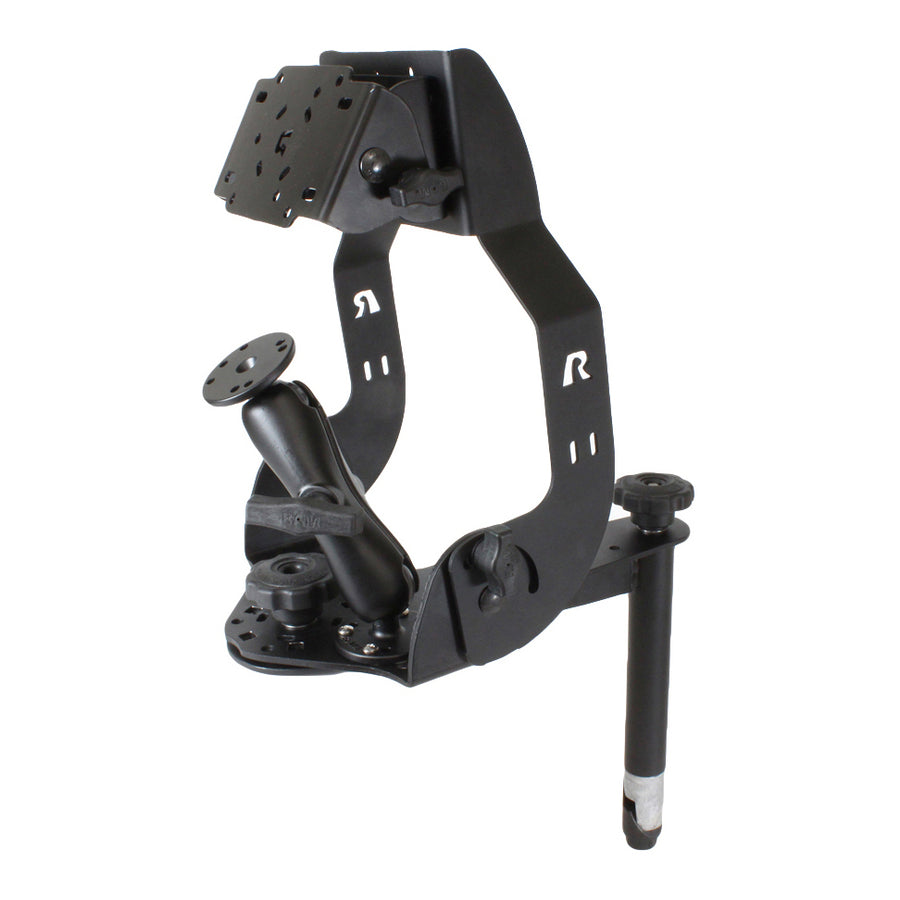

RAM® MDT Display Mount with Long Flange, Ball Mount & 8" Upper Pole
Part #: RAM-DIS-MDT2-8-101 UPC: 793442927362 Patented

Product Information
Overview	Mobile Data Terminal display mount with 8" flanged upper Tele-Pole™ and double socket arm mount for RAM vehicle mounting systems. The double socket arm mount contains two 2.5" diameter round bases that have pre-drilled holes, including the universal AMPS hole pattern, which will attach to most keyboards. This mount is also compatible with all RAM lower Tele-Poles™ and vehicle mounting systems.

Product Information

Overview

Mobile Data Terminal display mount with 8" flanged upper Tele-Pole™ and double socket arm mount for RAM vehicle mounting systems. The double socket arm mount contains two 2.5" diameter round bases that have pre-drilled holes, including the universal AMPS hole pattern, which will attach to most keyboards. This mount is also compatible with all RAM lower Tele-Poles™ and vehicle mounting systems.

Specifications
hardware included	Assembly Hardware
socket to socket length	Medium Arm: 4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	15.69 lb

RAM® MDT Display Mount with Long Flange, Ball Mount & 8" Upper Pole

Questions about our products? Email us for support.

Patented

RAM® MDT Display Mount with Long Flange, Ball Mount & 8" Upper Pole

Part#: RAM-DIS-MDT2-8-101

UPC: 793442927362

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
