RAM® Large Round Plate with Ball & Steel Reinforced Bolt - D Size

Part#: RAM-D-202U-IN1
UPC: 793442901867
$46.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size 1.5" ball
  • D Size — this product 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D — this product2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Overview

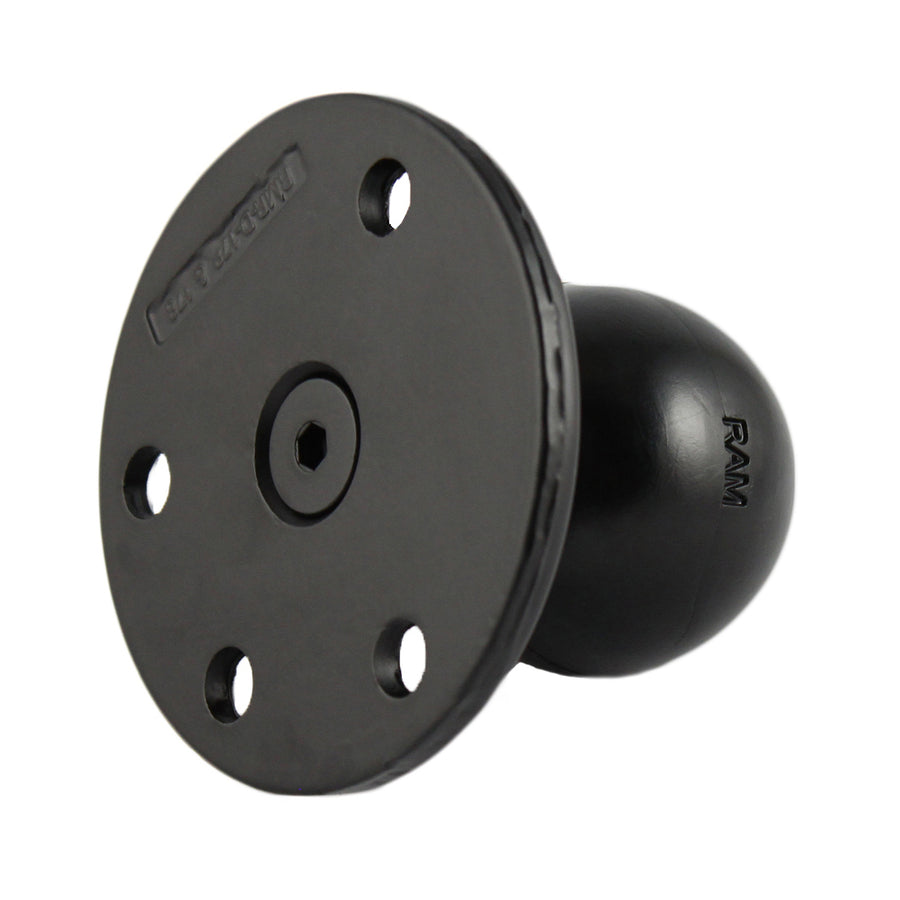

The RAM-D-202U-IN1 consists of a reinforced post, 2.25" diameter rubber ball, connected at right angles to a 3.68" diameter round base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

hole pattern:

See Drawing

plate size:

3.68" Diameter

ball size:

D Size (2.25")

weight capacity:

6 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.75 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Drawing File: D Size Round Ball Plate
Knowledge Base: Ball Sizes
Knowledge Base: Ball Sizes
