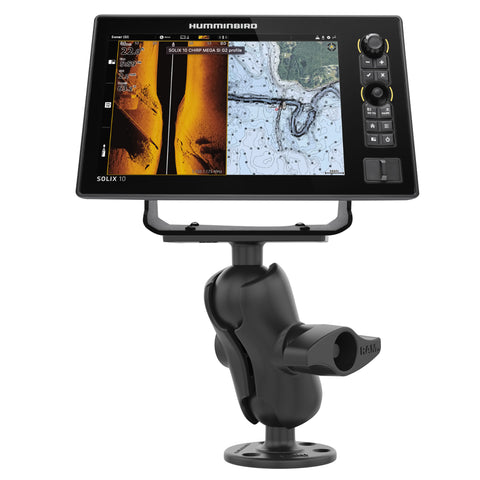

RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
D Size
Short Arm
$136.49
Overview

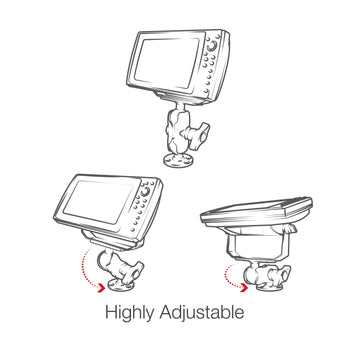

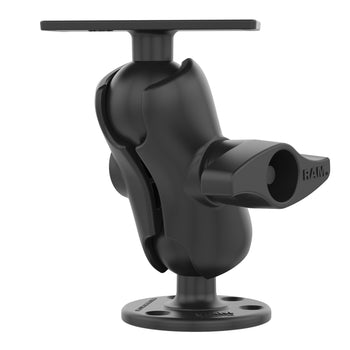

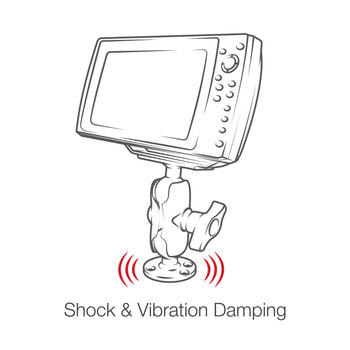

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with Humminbird 8, 9 & 10 models. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.
Features
- Complete flat surface, drill-down mounting solution for the Humminbird XPLORE Series, and Helix 8, 9, & 10; RAM® Mounts ball and socket technology allows for near-infinite adjustability

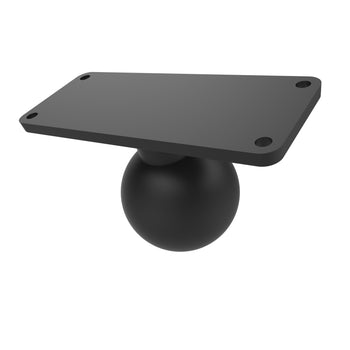

- Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

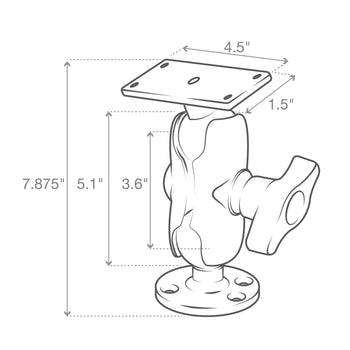

product dimensions:
Overall Height: 7.875"
socket to socket length:
3.6"
hole pattern:
Rectangular Plate: 1.5" x 4.5"
Round Plate: See Drawing
plate size:
Top Plate: 2" x 5"
Bottom Plate: 3.68" Diameter
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
3.0 lb
Additional Information:
For Humminbird devices greater than 10" including Helix, Solix & Apex, the version of this mount with RAM® Hi-Torq™ wrench is recommended for extra support. See RAM-D-202-25-C-202-KNOB9HU.
Questions & Answers
Have a Question?
-
Does this SKU include the hardware needed to bolt it to a flat surface?
No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
At least call out what size screws, not the length, but the screw size required or suggested for the mount.... or show the hole dimensions it on the diagram. Seems lame to not call out what's required to mount it and then blame not knowing what it will be mounted to. You know the size of the hole in your bracket, call it out.
The holes in the bottom base of that kit are .375 inch in diameter. You should use whatever stainless steel screws you can find that will that diameter, at least 1.25 inch long. The drawing with all dimensions for that base is on the RAM-D-202U page.
