RAM® Drill-Down Ball Mount for Humminbird Helix 8-15, XPLORE & Apex
Overview

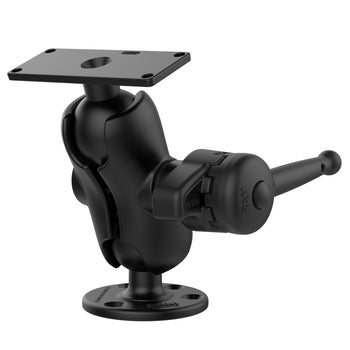

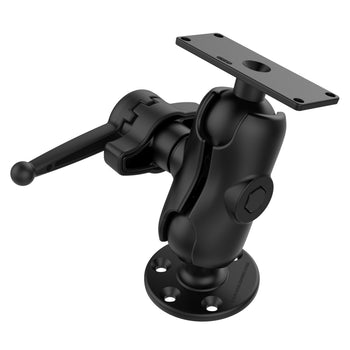

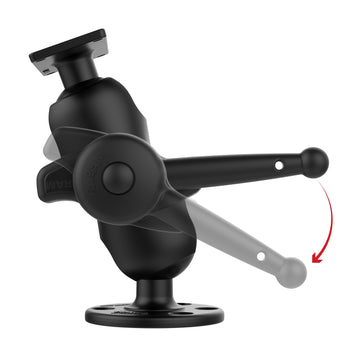

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, a RAM® Hi-Torq™ Wrench, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with various Humminbird models including the Helix 8, 9, 10, 12, 15, Solix 10, 12 15, and Apex 13 & 16. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.
Features
- Complete flat surface, drill-down mounting solution for the Humminbird XPLORE Series, and Helix 8, 9, 10, 12, 15, Solix 10, 12, 15, and Apex 13 & 16; RAM® Mounts ball and socket technology allows for near-infinite adjustability

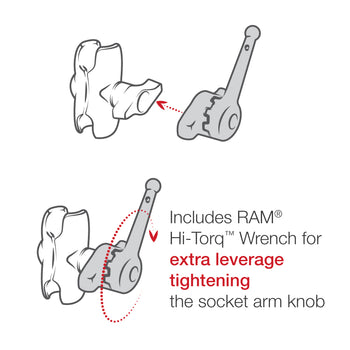

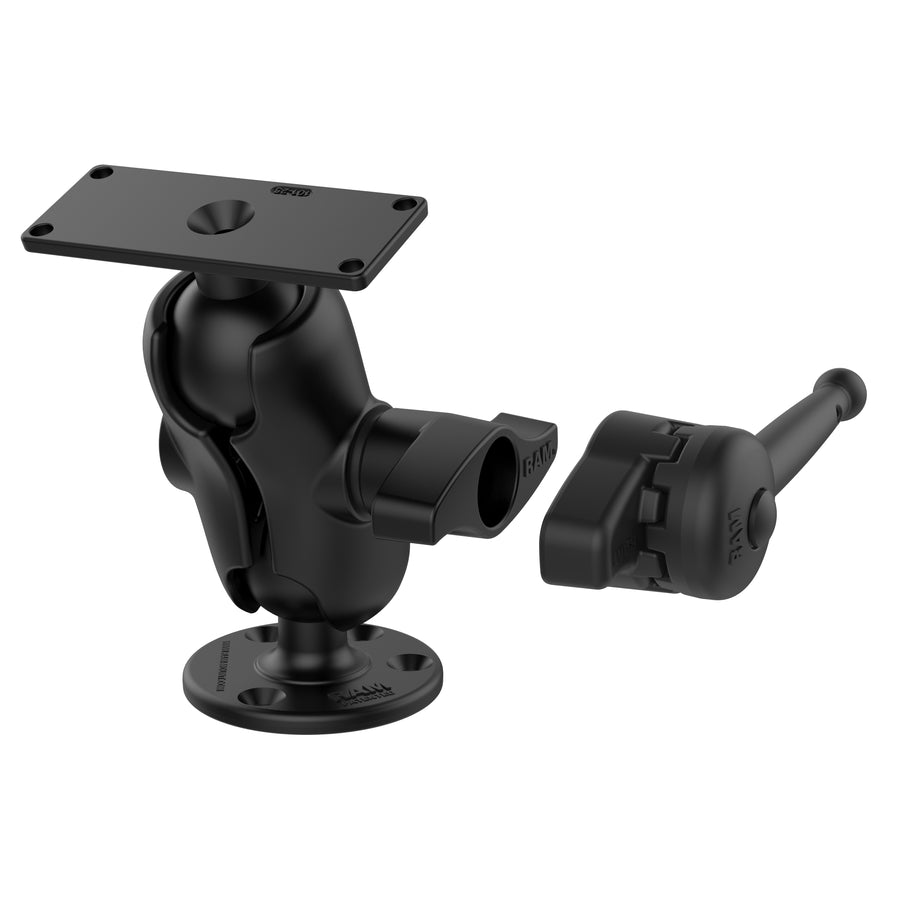

- Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, a RAM® Hi-Torq™ Wrench and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 7.875"
socket to socket length:
3.6"
hole pattern:
Rectangular Plate: 1.5" x 4.5"
Round Plate: See Drawing
plate size:
Top Plate: 2" x 5"
Bottom Plate: 3.68" Diameter
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
3.5 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically, the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
