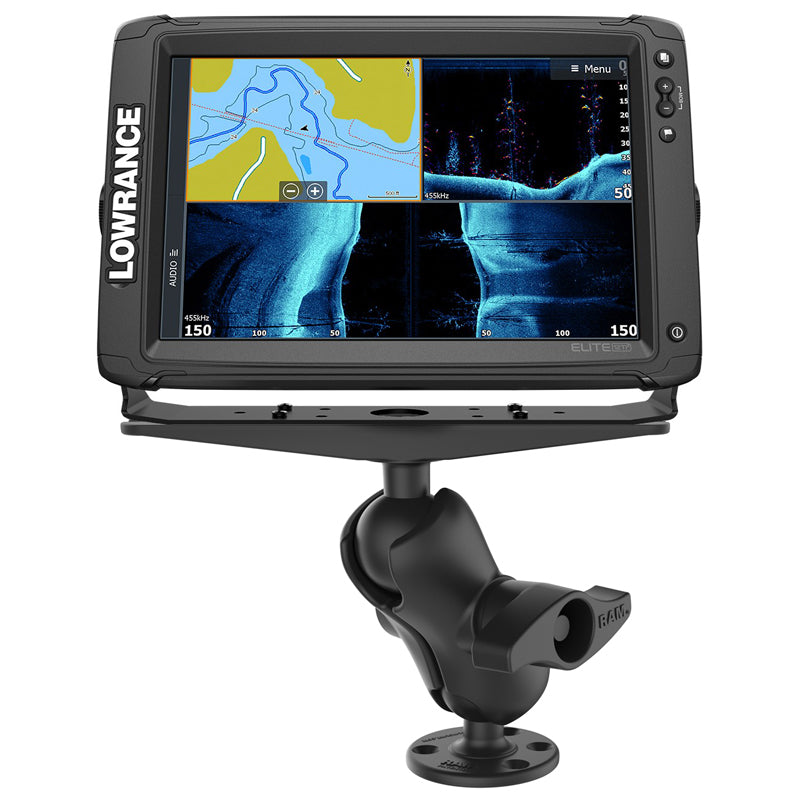

RAM® Large Marine Electronics Mount - D Size Short
D Size
Short Arm
$155.49
Overview

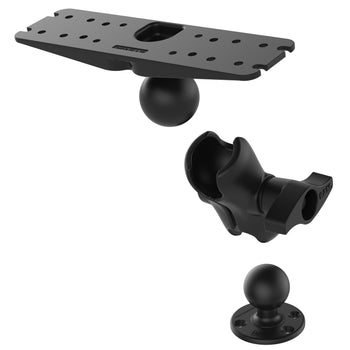

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base, and 11" x 3" rectangle base. The round base includes a 2.25" D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 2.25" D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
Features
- Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 8.125"
- RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
hardware included:
(4) .312" x .187" Shoulder Washers
product dimensions:

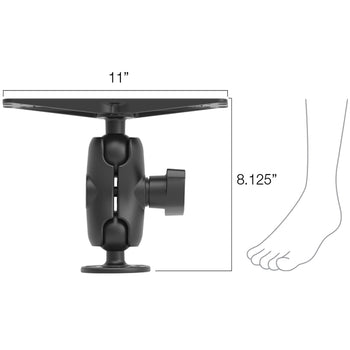

Overall Length: 8.125"
socket to socket length:
3.6"
hole pattern:
See Drawings
plate size:
Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter
ball size:
D Size (2.25")
weight capacity:
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
3.58 lb
Additional Information:
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Questions & Answers
Have a Question?
-
Does this come with different length arms?
Yes, we do offer kits with longer double socket arms. The RAM-D-111U is the kit with the medium length arm, the RAM-D-111U-E is the same kit with the long arm.
-
What screws are used to attach the RAM Mount to the gimbal bracket?
Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
-
What are the 4 shoulder washers used for?
The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
-
I will be mounting this on my kayak, I plan on drilling through the top flat surface to attach the mounting plate. What mounting screws do you suggest? Will I need an inner plate that goes on the inside of the kayak that the screws will go through and tighten up against?
The best resource for that type of information is usually alocal hardware store or the manufacturer of the kayak you are mounting to. Wedo have a Plate Adapter for our D size ball https://rammount.com/products/rap-356u
