RAM® Large Marine Electronics Mount with RAM® Hi-Torq™ Wrench

hardware included

(4) .312" x .187" Shoulder Washers

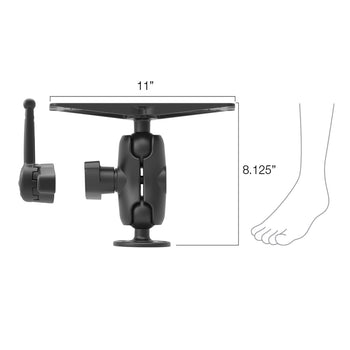

product dimensions

Overall Length: 8.125"

socket to socket length

3.6"

hole pattern

See Drawings

plate size

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminum

packaging type

Retail Box

Weight

4.1 lb

Components

RAM-D-202U:RAM-D-202U_1:RAM Large Round Plate with Ball

RAM-D-202U:RAM-D-202U_2:RAM Large Round Plate with Ball

RAM® Large Round Plate with Ball RAM-D-202U $35.49

RAM-D-201U-C:RAM-D-201U-C_1:RAM Double Socket Arm

RAM® Double Socket Arm RAM-D-201U-C $56.49

RAM-D-111BU:RAM-D-111BU_1:RAM Large Marine Electronics Ball Adapter

RAM-D-111BU:RAM-D-111BU_2:RAM Large Marine Electronics Ball Adapter

RAM® Large Marine Electronics Ball Adapter RAM-D-111BU $57.99

RAM-KNOB9HU:RAM-KNOB9HU_1:RAM Hi-Torq™ Wrench for D Size Socket Arms

RAM-KNOB9HU:RAM-KNOB9HU_2:RAM Hi-Torq™ Wrench for D Size Socket Arms

RAM® Hi-Torq™ Wrench for D Size Socket Arms RAM-KNOB9HU $29.49

Compatible Devices

echoMAP 70DV

ECHOMAP Ultra 122sv

ECHOMAP Ultra 126sv

GPSMAP 740s

GPSMAP 1020xs

GPSMAP 1040xs

GPSMAP 1222/xsv Touch

GPSMAP 1242xsv/Touch

Fishfinders and GPS Chartplotters

HDS Carbon 9

HDS Carbon 12

Hook²-12

Elite-9 CHIRP

Elite-9 Ti

Elite-9 Ti²

Elite-12 Ti

Elite-12 Ti²

Fishfinders and GPS Chartplotters

Axiom 7

Axiom 9

C120

Fishfinders and GPS Chartplotters

800 & 900 Series

RAM® Accessories for D Size Knobs

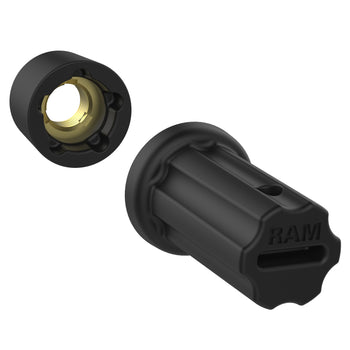

RAP-S-NUT5U:RAP-S-NUT5U_1:RAM Pin-Lock™ Security Nut for D & E Size Socket Arms

RAP-S-NUT5U:RAP-S-NUT5U_2:RAM Pin-Lock™ Security Nut for D & E Size Socket Arms

RAM® Pin-Lock™ Security Nut for D & E Size Socket Arms RAP-S-NUT5U $9.49

RAM® Hi-Torq™ Wrench for D Size Socket Arms RAM-KNOB9HU $29.49

Accessories for 3-Hole Pattern (Large) Components

RAP-402U:RAP-402U_1:RAM Cable Manager for Large Electronic Mounts

RAP-402U:RAP-402U_2:RAM Cable Manager for Large Electronic Mounts

RAM® Cable Manager for Large Electronic Mounts RAP-402U $23.49

RAP-356U:RAP-356U_1:RAM Adapt-To-RAM™ Hole Pattern Plate Adapter

RAP-356U:RAP-356U_2:RAM Adapt-To-RAM™ Hole Pattern Plate Adapter

RAM® Adapt-To-RAM™ Hole Pattern Plate Adapter RAP-356U $20.99
