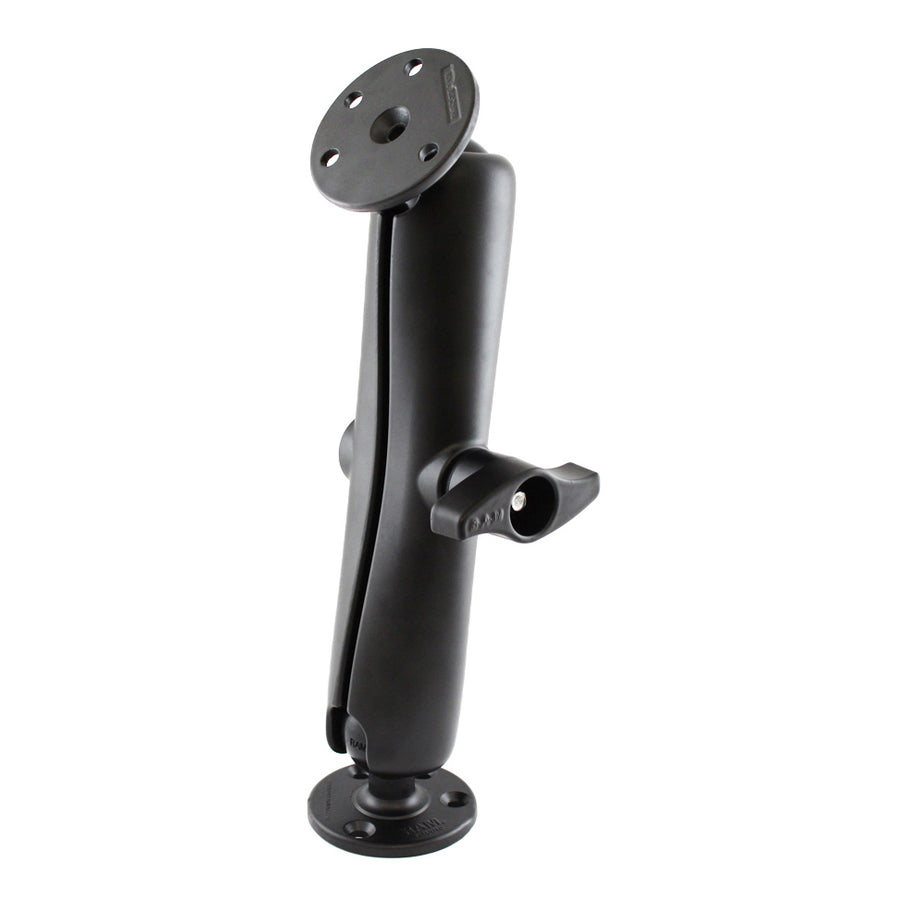

RAM® Double Ball Mount with Two Large Round Plates - D Size Long

Part #: RAM-D-101U-E
UPC: 793442310157
Ball Size: D
Arm Length: Long
Price: $206.49

Overview

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and LONG length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Specifications

product dimensions	Overall Height: 15.5"
socket to socket length	11.41"
hole pattern	See Drawing
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	5.2 lb

Kit Components

RAM-D-202U RAM® Large Round Plate with Ball - D Size
RAM-D-201U-E RAM® Double Socket Arm - D Size Long

Compatibility

Honeywell: Thor CV30, Thor CV31, Thor VX8, Thor VX9

Full compatibility list: rammount.com/products/ram-d-101u-e

RAM® Double Ball Mount with Two Large Round Plates - D Size Long

Part#: RAM-D-101U-E

UPC: 793442310157

$206.49

Short, medium, and long double socket arms compared side by side. This product uses a Long arm — Arm lengths

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length	Measurement	A Size	B Size	C Size	D Size — this product's ball size	E Size
Short	Overall Length	N/A	2.42"	3.56"	5.69"	5.69"
Short	Socket-to-Socket Length	N/A	1.75"	2.5"	4.66"	4.66"
Medium	Overall Length	2.42"	3.73"	5.69"	8.44"	12.63"
Medium	Socket-to-Socket Length	1.75"	3"	4.66"	6.88"	9.88"
Long	Overall Length	3.56"	6"	9.13"	12.98" — this product	N/A
Long	Socket-to-Socket Length	3.12"	5.31"	8"	11.41"	N/A

Overview

product dimensions:

Overall Height: 15.5"

socket to socket length:

11.41"

hole pattern:

See Drawing

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

5.2 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Drawing File: D Size Round Ball Plate
