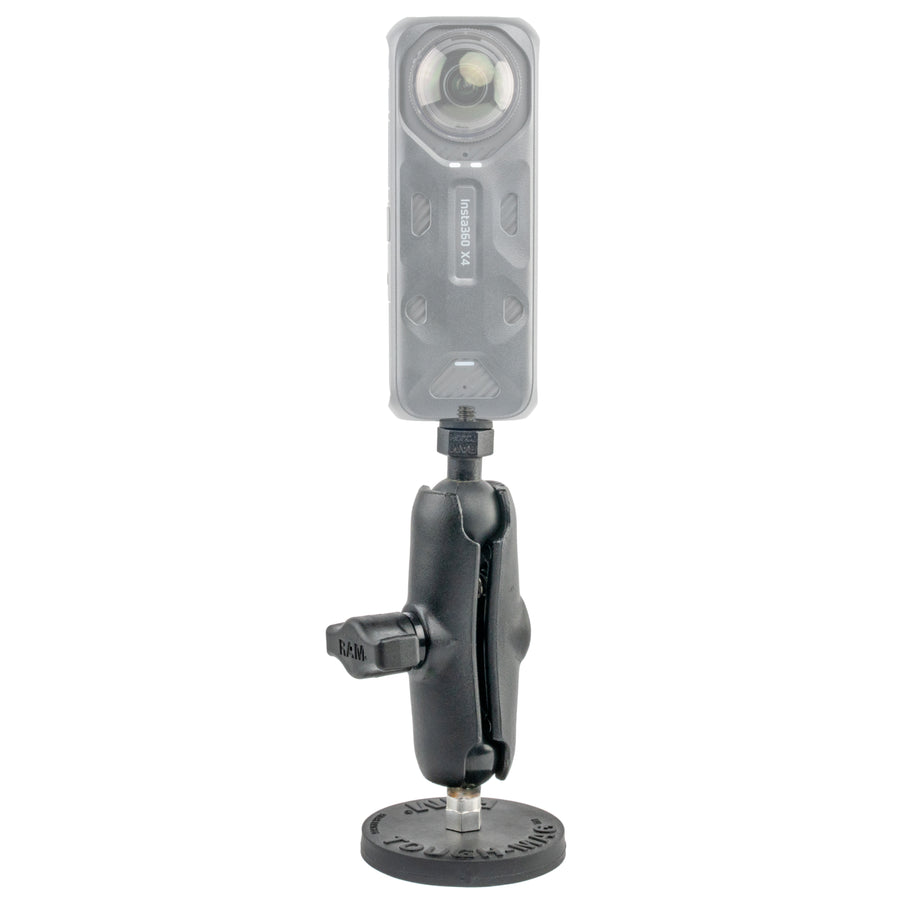

RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360

Part #: RAM-B-MAG66-379-252025-RWU UPC: 793442023132

Features

RAM® Tough-Ball™ features a 1/4"-20 x .25" male threaded post and rubber washer for secure connection to Insta360
Includes B size medium length socket arm and RAM® Tough-Mag™ base, ideal for ferrous surfaces
Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360

Product Information

Overview

The RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360 (RAM-B-MAG66-379-252025-RWU) is a versatile mounting solution that easily magnetizes to any ferrous metal surface. Secure the Insta360 by screwing the RAM® Tough-Ball™ and rubber washer onto the base of the device. The RAM® Tough-Mag™ features a 2.6" diameter base and industrial-strength N35 grade magnet paired with a rubber coating that protects the metal surface it secures to. The RAM® Mounts ball and socket system allows near-infinite adjustment to capture the perfect angle.

Specifications
hardware included	(1) Rubber Friction Washer
socket to socket length	3"
thread pitch	1/4"-20 x .25"
plate size	2.6" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High-strength composite Rubber
packaging type	Poly Bag
Weight	0.71 lb

RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360

Name: RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360
Brand: RAM Mounts
SKU: RAM-B-MAG66-379-252025-RWU
Price: 69.49 USD
Availability: InStock

Part#: RAM-B-MAG66-379-252025-RWU

UPC: 793442023132

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
