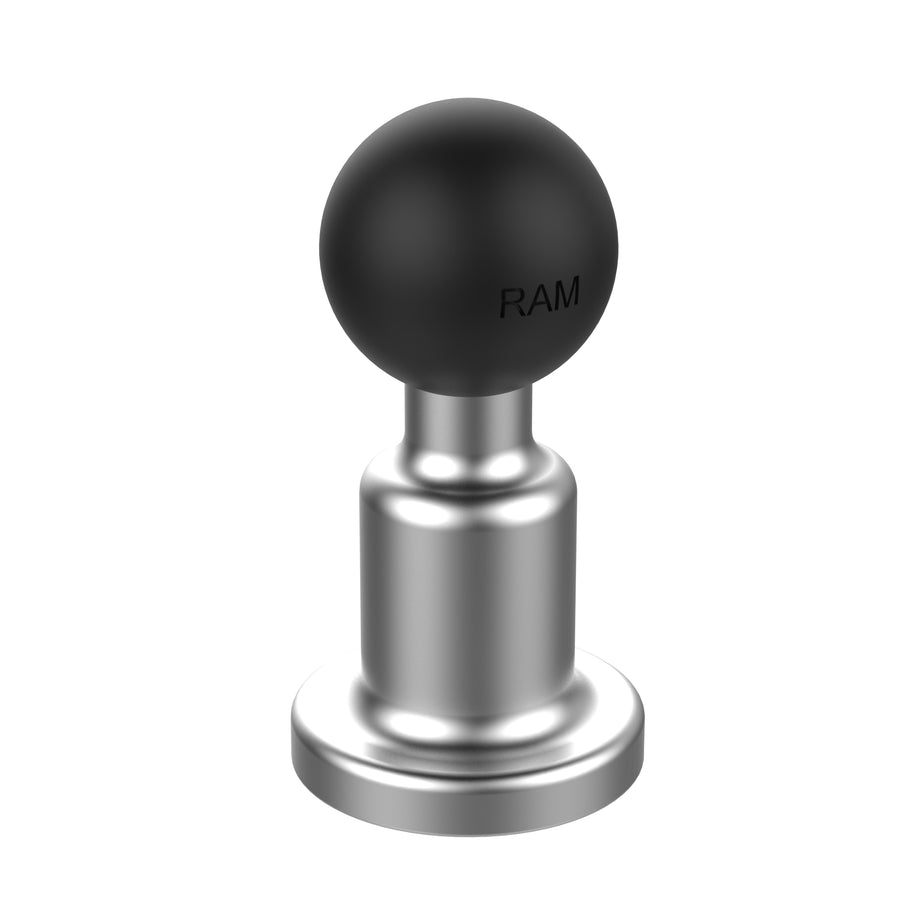

RAM^® Aluminum Pin-Lock Ball Adapter with 1/4"-20 Female Thread - B Size
Part #: RAM-B-463U UPC: 793442100161 Features Includes 1" B size rubber ball with pin-lock and 1/4-20" threaded hole Features patented RAM^® Pin-Lock^™ pattern on the bottom so it will lock up with other RAM^® Pin-Lock^™ components Made of marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information
Overview	This RAM^® ball adapter is made up of a B size 1" ball molded to a marine-grade aluminum base. This ball adapter features the RAM^® Pin-Lock^™ pattern for use with RAM^® Tough-Claw^™, Tough-Clamp^™ and many other RAM^® product lines. Compatible with a variety of B size RAM^® double socket arms.

Specifications
product dimensions	Overal Height: 2.36" Plate Diameter: 1.25" Thread Depth: .875"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.12 lb

RAM<sup>®</sup> Aluminum Pin-Lock Ball Adapter with 1/4"-20 Female Thread - B Size

Questions about our products? Email us for support.

RAM^® Aluminum Pin-Lock Ball Adapter with 1/4"-20 Female Thread - B Size

Part#: RAM-B-463U

UPC: 793442100161

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$14.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

This RAM^® ball adapter is made up of a B size 1" ball molded to a marine-grade aluminum base. This ball adapter features the RAM^® Pin-Lock^™ pattern for use with RAM^® Tough-Claw^™, Tough-Clamp^™ and many other RAM^® product lines. Compatible with a variety of B size RAM^® double socket arms.

Features

Includes 1" B size rubber ball with pin-lock and 1/4-20" threaded hole
Features patented RAM^® Pin-Lock^™ pattern on the bottom so it will lock up with other RAM^® Pin-Lock^™ components
Made of marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

product dimensions:

Overal Height: 2.36"
Plate Diameter: 1.25"
Thread Depth: .875"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.12 lb

Print

Questions & Answers

Have a Question?

Ask a Question

What is the length?

The length of the RAM-B-463U is 2.4".
