Overview

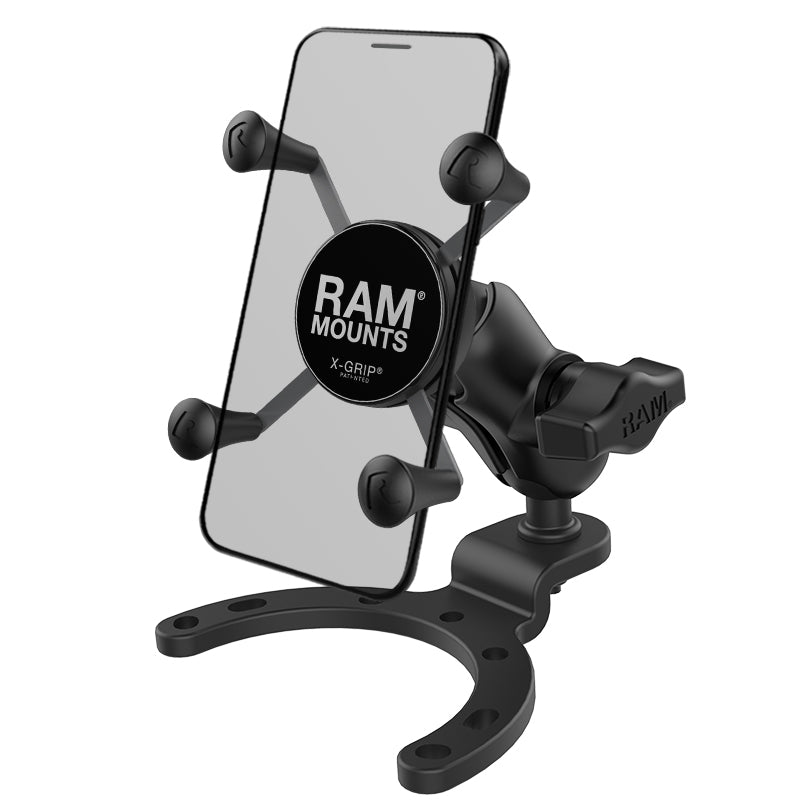

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(4) M5-.8 x 40mm Socket Head Cap Screws
(3) M5-.8 x 25mm Socket Head Cap Screws
(4) M5 Stainless Steel Washers
holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max
socket to socket length:
1.75"
hole pattern:
See Drawing
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.68 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this work on my 2018 Ninja 650 KRT edition?
Yes this should fit the 2018 Ninja 650 KRT.
-
I noticed my phone can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
