RAM^® Large Gas Tank Mount with Universal Action Camera Adapter
Part #: RAM-B-411-A-GOP1U UPC: 793442952753

Product Information

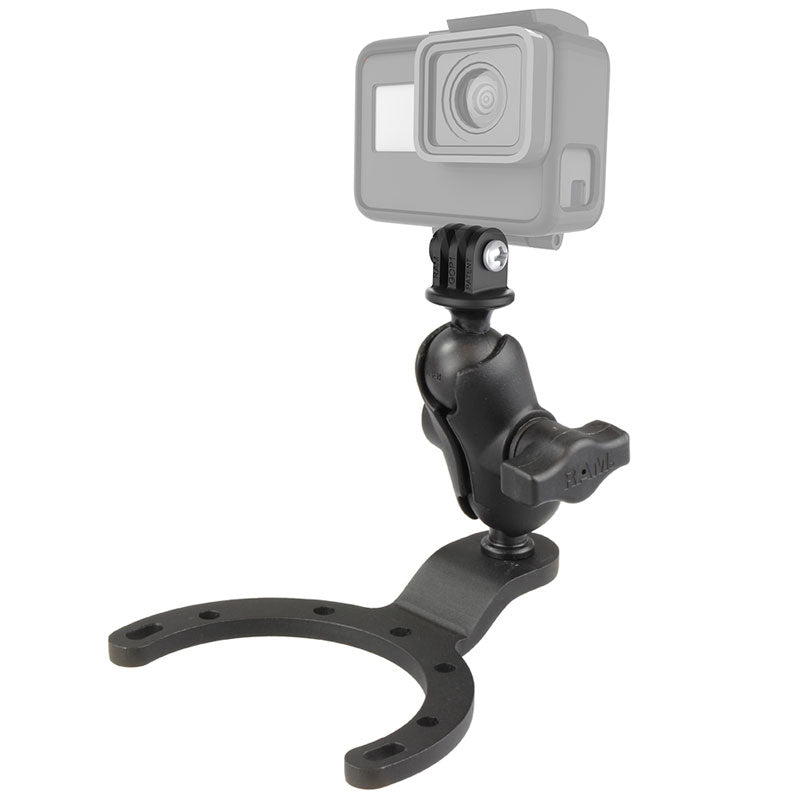

Overview	The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the mount for GoPro and Garmin style action cameras.

Product Information

Overview

The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminum base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. Included is the mount for GoPro and Garmin style action cameras.

Specifications
hardware included	Assembly Hardware (4) M5-.8 x 40mm Socket Head Cap Screws (3) M5-.8 x 25mm Socket Head Cap Screws (4) M5 Stainless Steel Washers
socket to socket length	1.75"
hole pattern	See Drawing
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.66 lb
Additional Information	To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".

RAM<sup>®</sup> Large Gas Tank Mount with Universal Action Camera Adapter

Questions about our products? Email us for support.

RAM^® Large Gas Tank Mount with Universal Action Camera Adapter

Part#: RAM-B-411-A-GOP1U

UPC: 793442952753

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$66.99

Options

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

hardware included:

Assembly Hardware
(4) M5-.8 x 40mm Socket Head Cap Screws
(3) M5-.8 x 25mm Socket Head Cap Screws
(4) M5 Stainless Steel Washers

socket to socket length:

1.75"

hole pattern:

See Drawing

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.66 lb

Additional Information:

To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 4".

Print

Instructions

Gas Tank Mount Assembly Guide

Documents

Motorcycle Compatibility Guide

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

Will this fit ninja 400 ?

Unfortunately this will not fit any year of the Kawasaki Ninja 400 motorcycles. They are compatible with our RAM-B-346U and the RAM-B-309-7U.
