Overview

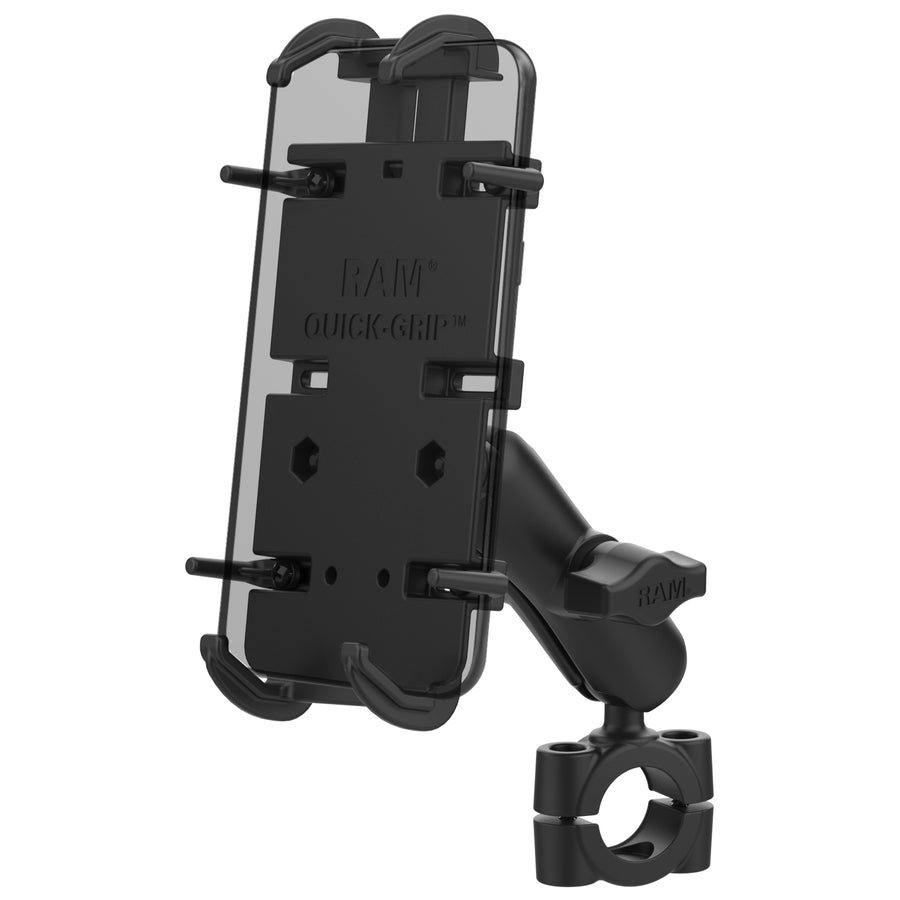

The RAM® Quick-Grip™ XL Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD4U) is a universal phone mounting kit with a base built that securely installs to rails. The spring-loaded RAM® Quick-Grip™ allows users to easily insert and remove their phone with one hand, while the adjustable side supports for a secure fit. The RAM® Torque™ mounting base is compatible with rails 3/4” to 1” in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM® ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

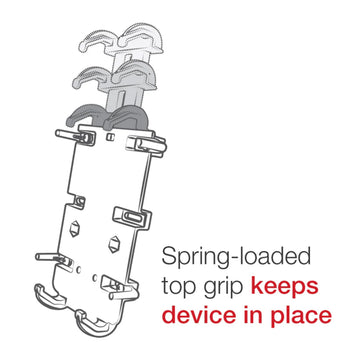

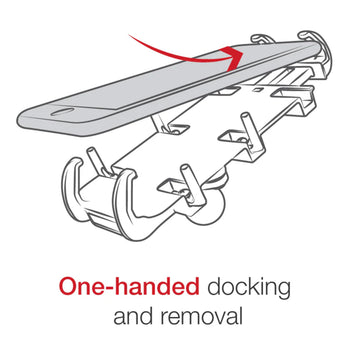

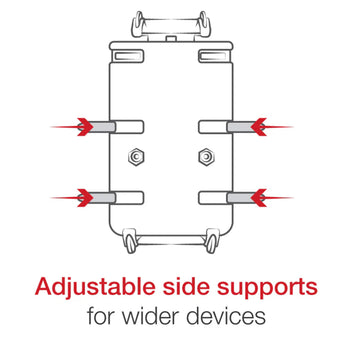

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Includes medium Torque™ base that accommodates rails 3/4” to 1” in diameter and a medium length B size RAM® double socket arm
- Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench
holder dimensions:
Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"
clamp range:
.75" - 1" diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.97 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
