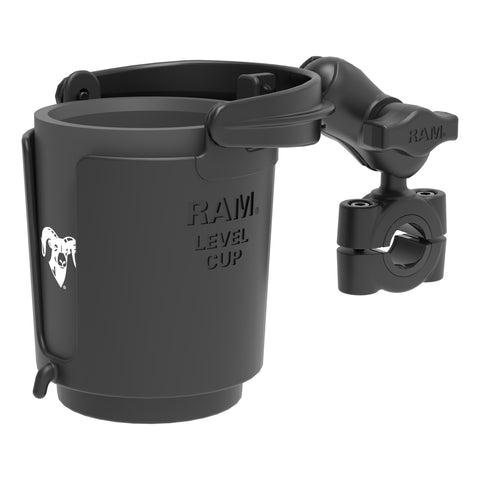

RAM® Level Cup™ 16oz Drink Holder with RAM® Torque™ Medium Rail Base
Part #: RAM-B-408-75-1-A-132U UPC: 793442952678

Product Information
Overview	Take your drink on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1" ball base that accommodate bars 3/4" to 1" in diameter with a B-size short length arm and Level Cup™ Drink Holder & Koozie.

Specifications
hardware included	(2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nyloc Nuts (2) .75" Composite Bushings (2) .9" Composite Bushings (1) 88.9mm Rubber Strip (1) 5/32" Hex Key Wrench
drink size	12-16 oz
clamp range	.75" - 1" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.91 lb

RAM® Level Cup™ 16oz Drink Holder with RAM® Torque™ Medium Rail Base

Name: RAM® Level Cup™ 16oz Drink Holder with RAM® Torque™ Medium Rail Base
Brand: RAM Mounts
SKU: RAM-B-408-75-1-A-132U
Price: 76.49 USD
Availability: InStock

Part#: RAM-B-408-75-1-A-132U

UPC: 793442952678

$76.49

Options

Overview

Take your drink on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1" ball base that accommodate bars 3/4" to 1" in diameter with a B-size short length arm and Level Cup™ Drink Holder & Koozie.

hardware included:

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nyloc Nuts
(2) .75" Composite Bushings
(2) .9" Composite Bushings
(1) 88.9mm Rubber Strip
(1) 5/32" Hex Key Wrench

drink size:

12-16 oz

clamp range:

.75" - 1" diameter

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.91 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Torque Base Installation Guide

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

RAM® Level Cup™ 16oz Drink Holder with RAM® Torque™ Medium Rail Base

$76.49

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size	Ball Diameter	Max Load*	Best For
A	0.56" (14.3 mm)	0.5 lb	Action cameras and other ultra-light devices
B — this product	1" (25.4 mm)	2 lbs	Phones, GPS units, and small tablets — the most common size
C	1.5" (38.1 mm)	4 lbs	Large tablets, fish finders, and rougher rides
D	2.25" (57.2 mm)	6 lbs	Rugged tablets, laptops, and heavy equipment
E	3.38" (85.9 mm)	15 lbs	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Short, medium, and long double socket arms compared side by side. This product uses a Short arm — Arm lengths

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length	Measurement	A Size	B Size — this product's ball size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42" — this product	3.56"	5.69"	5.69"
Short	Socket-to-Socket Length	N/A	1.75"	2.5"	4.66"	4.66"
Medium	Overall Length	2.42"	3.73"	5.69"	8.44"	12.63"
Medium	Socket-to-Socket Length	1.75"	3"	4.66"	6.88"	9.88"
Long	Overall Length	3.56"	6"	9.13"	12.98"	N/A
Long	Socket-to-Socket Length	3.12"	5.31"	8"	11.41"	N/A
