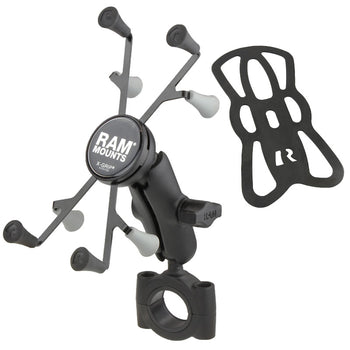

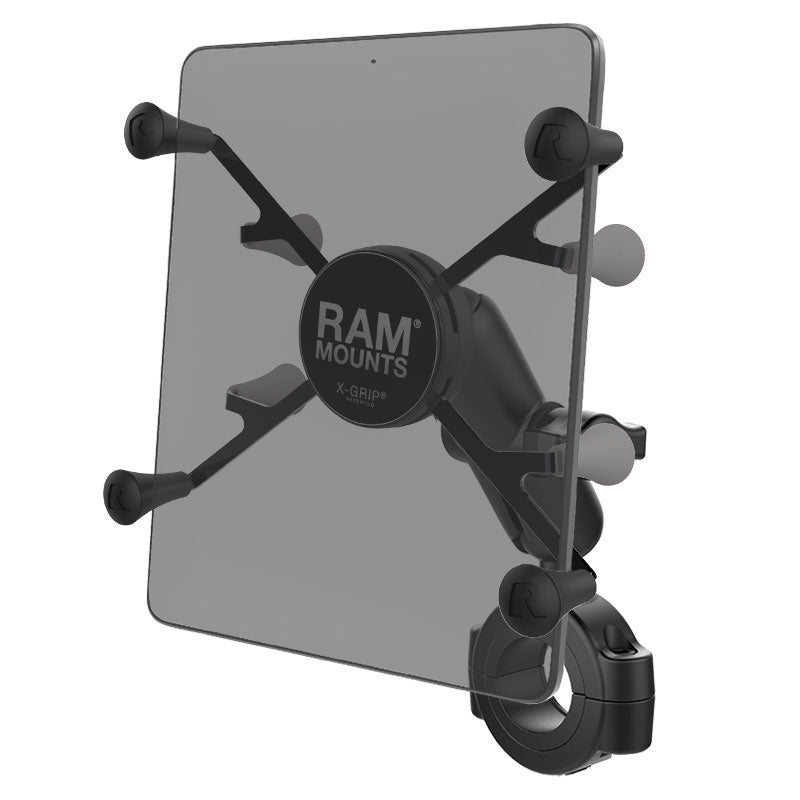

RAM® X-Grip® with RAM® Torque™ Large Rail Base for 7"-8" Tablets
Part #: RAM-B-408-112-15-UN8U UPC: 793442951060 Patented

Product Information
Overview	Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball that accommodates bars 1 1/8" to 1 ½” in diameter with a B-size standard length arm and the dynamic X-Grip® for 7”-8” tablets. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Product Information

Overview

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball that accommodates bars 1 1/8" to 1 ½” in diameter with a B-size standard length arm and the dynamic X-Grip® for 7”-8” tablets. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications
hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps (2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) 1.12" Split Reducing Bushings (2) 1.27" Split Reducing Bushings (1) 5/32" Hex Key Wrench (1) 127mm x 17mm Rubber Adhesive Strip
holder dimensions	Width Range: 2.5" - 5.75" Depth Range: .875" max
clamp range	1.125" - 1.5" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.86 lb

RAM® X-Grip® with RAM® Torque™ Large Rail Base for 7"-8" Tablets

Patented

RAM® X-Grip® with RAM® Torque™ Large Rail Base for 7"-8" Tablets

Part#: RAM-B-408-112-15-UN8U

UPC: 793442951060

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
