RAM^® Torque^™ Large Rail Base with Universal Action Camera Adapter
Part #: RAM-B-408-112-15-A-GOP1U UPC: 793442952661

Product Information

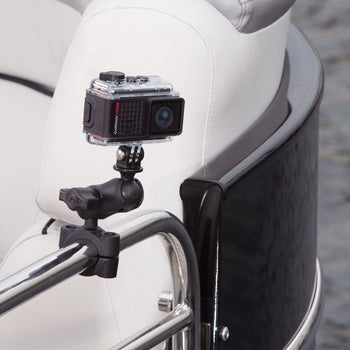

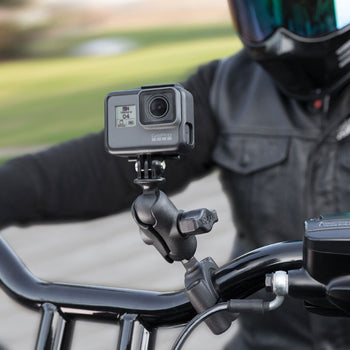

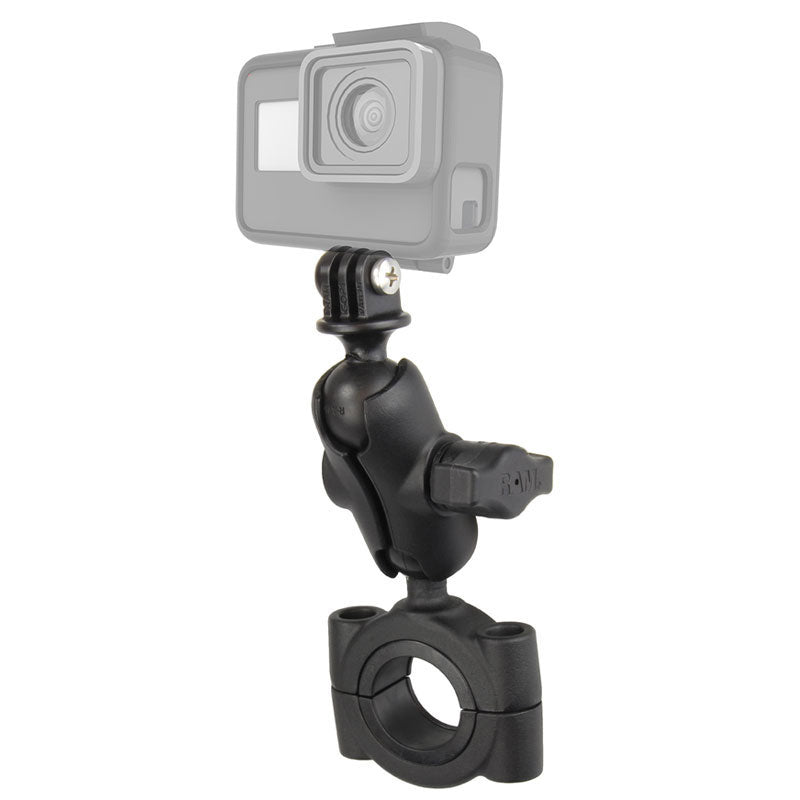

Overview	The RAM^® Torque^™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a GoPro/Action Camera mount.

Specifications
hardware included	Assembly Hardware (2) #10-24 x 1" Socket Head Cap Screws (2) #10-24 Nylock Nuts (2) 1.12" Split Reducing Bushings (2) 1.27" Split Reducing Bushings (1) 5/32" Hex Key Wrench (1) 127mm x 17mm Rubber Adhesive Strip
clamp range	1.125" - 1.5" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.56 lb

RAM<sup>®</sup> Torque<sup>™</sup> Large Rail Base with Universal Action Camera Adapter

Questions about our products? Email us for support.

RAM^® Torque^™ Large Rail Base with Universal Action Camera Adapter

Part#: RAM-B-408-112-15-A-GOP1U

UPC: 793442952661

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

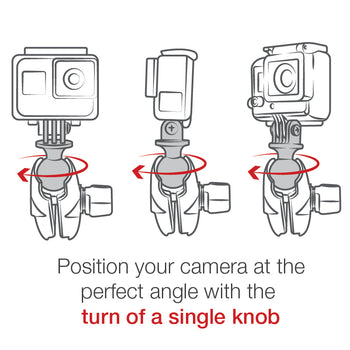

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

GoPro

Hero

Session

Garmin

Virb

SJCAM

SJ4000

SJ5000X Elite 4K

Muvi

veho K-Series K-2 Pro 4K

Xcel

1080C

Vivitar

ACTIVEON

CX Gold

Discovery

Kids Photo & Video Adventure Camera

AEE

ACE S70 Black 16MP 2"

AKASO

EK7000 4K WIFI Sports

AEDILYS

4K WIFI Sports

Lightdow

LD4000 1080P HD

WiMiUS

Q2 Black 1080P Wifi

Vtin

WiFi
