Patent Pending

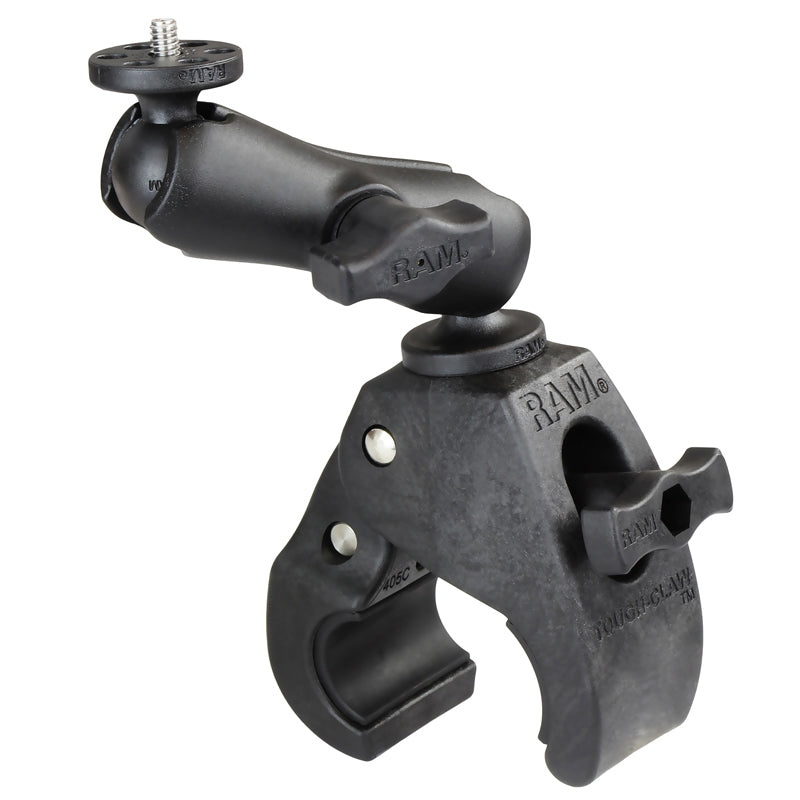

RAM® Tough-Claw™ Medium Clamp Mount with 1/4"-20 Camera Adapter

Part#: RAM-B-404-366U
UPC: 793442948992

Kit Components

Previous Slide Next Slide
$77.49

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Medium arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" — this product 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A

Features

  • Clamping mount used in place of a camera tripod while out on the trail; Included B size 1" RAM® rubber ball with 1/4"-20 threaded stud for industry standard DSLR and mirrorless cameras
  • Includes B size medium length socket arm and medium size RAM® Tough-Claw™ designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Backed by a lifetime warranty

clamp range:

1" - 1.6" diameter

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.94 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Ask a Question

  • What is the difference between the B-404-A-366U and the B-404-366U?

    The B-404-A-366U includes a small double socket arm (RAM-B-201U-A), which adds about 1.75" to the length. The B-404-366U includes a medium double socket arm (RAM-B-201U), which adds about 3" to the length.
