RAM® Tough-Claw™ Small Clamp Mount with Garmin Spine Clip Holder
Part #: RAM-B-400-GA76U UPC: 793442012471 Patented & Pats. Pend. Features Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, medium double socket arm and RAM® Tough-Claw™ clamping base Holder secures any Garmin handheld device with an integrated spine connection Quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface Backed by a lifetime warranty

Part #: RAM-B-400-GA76U UPC: 793442012471 Patented & Pats. Pend.

Features

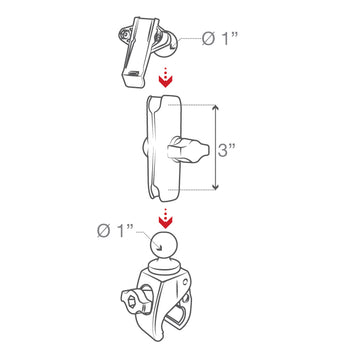

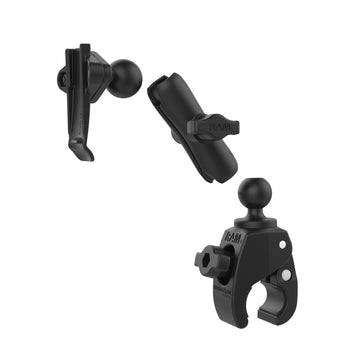

Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, medium double socket arm and RAM® Tough-Claw™ clamping base
Holder secures any Garmin handheld device with an integrated spine connection

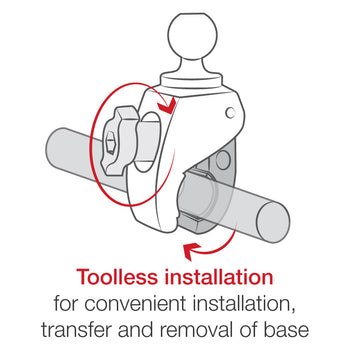

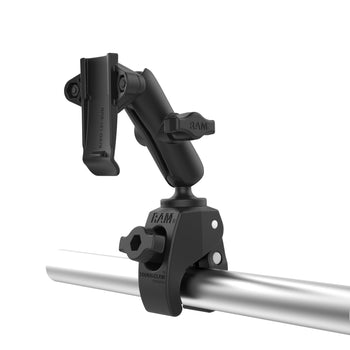

Quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Backed by a lifetime warranty

RAM® Tough-Claw™ Small Clamp Mount with Garmin Spine Clip Holder

Product Information
Overview	The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. With the RAM® Tough-Claw™ base, you can easily attach Garmin spine mount to round, square, and odd-shaped rails and bars ranging from .625” to 1.14” in outer diameter.

Specifications
hardware included	Assembly Hardware
clamp range	.625" - 1.14" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.74 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Tough-Claw™ Small Clamp Mount with Garmin Spine Clip Holder

Part#: RAM-B-400-GA76U

UPC: 793442012471

Compatible Devices

Garmin

Alpha® 100

Approach® G3

Approach® G5

Astro® 320

Astro® 430

Astro® 900

Dakota® 10

Dakota® 20

eTrex® 10

eTrex® 20

eTrex® 20x

eTrex® 22x

eTrex® 30

eTrex® 30x

eTrex® 32x

eTrex® SE

eTrex® Solar

eTrex® Touch 25

eTrex® Touch 35

eTrex® Touch 35t

GPSMAP® 62

GPSMAP® 62s

GPSMAP® 62sc

GPSMAP® 62st

GPSMAP® 62stc

GPSMAP® 64

GPSMAP® 64s

GPSMAP® 64sc

GPSMAP® 65s

GPSMAP® 66i

GPSMAP® 66s

GPSMAP® 66st

GPSMAP 67 Series

GPSMAP® 79s

GPSMAP® 79sc

GPSMAP® 86 Series

inReach Explorer®+

inReach® Mini

inReach SE®

Oregon® 200

Oregon® 300

Oregon® 400c

Oregon® 400i

Oregon® 400t

Oregon® 450

Oregon® 450t

Oregon® 550

Oregon® 550t

Oregon® 600

Oregon® 600t

Oregon® 650

Oregon® 650t

Oregon® 700

Oregon® 750

Oregon® 750t

Rino® 610

Rino® 650

Rino® 650t

Rino® 655t

Rino® 700

Rino® 750

Rino® 755t

Sport PRO™

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Garmin

Alpha® 100

Approach® G3

Approach® G5

Astro® 320

Astro® 430

Astro® 900

Dakota® 10

Dakota® 20

eTrex® 10

eTrex® 20

eTrex® 20x

eTrex® 22x

eTrex® 30

eTrex® 30x

eTrex® 32x

eTrex® SE

eTrex® Solar

eTrex® Touch 25

eTrex® Touch 35

eTrex® Touch 35t

GPSMAP® 62

GPSMAP® 62s

GPSMAP® 62sc

GPSMAP® 62st

GPSMAP® 62stc

GPSMAP® 64

GPSMAP® 64s

GPSMAP® 64sc

GPSMAP® 65s

GPSMAP® 66i

GPSMAP® 66s

GPSMAP® 66st

GPSMAP 67 Series

GPSMAP® 79s

GPSMAP® 79sc

GPSMAP® 86 Series

inReach Explorer®+

inReach® Mini

inReach SE®

Oregon® 200

Oregon® 300

Oregon® 400c

Oregon® 400i

Oregon® 400t

Oregon® 450

Oregon® 450t

Oregon® 550

Oregon® 550t

Oregon® 600

Oregon® 600t

Oregon® 650

Oregon® 650t

Oregon® 700

Oregon® 750

Oregon® 750t

Rino® 610

Rino® 650

Rino® 650t

Rino® 655t

Rino® 700

Rino® 750

Rino® 755t

Sport PRO™

$71.49

Options

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM® Spine Clip holder is a mount adapter that easily clips into the integrated spine connection on a wide variety of Garmin devices. With the RAM® Tough-Claw™ base, you can easily attach Garmin spine mount to round, square, and odd-shaped rails and bars ranging from .625” to 1.14” in outer diameter.

Features

Kit includes RAM® Spine Clip Holder for Garmin, B size diamond ball base, medium double socket arm and RAM® Tough-Claw™ clamping base
Holder secures any Garmin handheld device with an integrated spine connection
Quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Backed by a lifetime warranty

hardware included:

Assembly Hardware

clamp range:

.625" - 1.14" diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.74 lb
