RAM® Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™
Overview

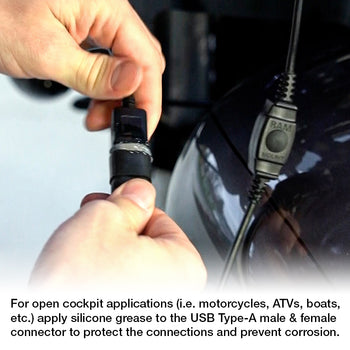

The RAM® Quick-Grip™ 15W Waterproof Wireless Charging Mount with Tough-Claw™ (RAM-B-400-A-UN14W-V7M-1) combines secure, one-handed phone access with fast, Qi-compatible wireless charging. This waterproof charging cradle uses the spring-loaded RAM® Quick-Grip™ design to provide a reliable hold and easy insertion/removal. Rubber-coated top and bottom cups keep your phone firmly in place while delivering up to 15W of power as long as it’s within the listed compatible dimensions. A device tether is included and recommended for demanding outdoor environments. The included RAM® Tough-Claw™ base clamps quickly onto round, square, or irregular rails and bars from 0.625” to 1.14” in diameter, making setup fast and tool-free. A connected Type-A male pigtail with an in-line power switch lets you turn the charging module on or off as needed. For in-vehicle use, simply connect the pigtail to the included 1.2m Type-A male to Type-A female extension cable. For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.
Features
- Waterproof Qi comaptible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

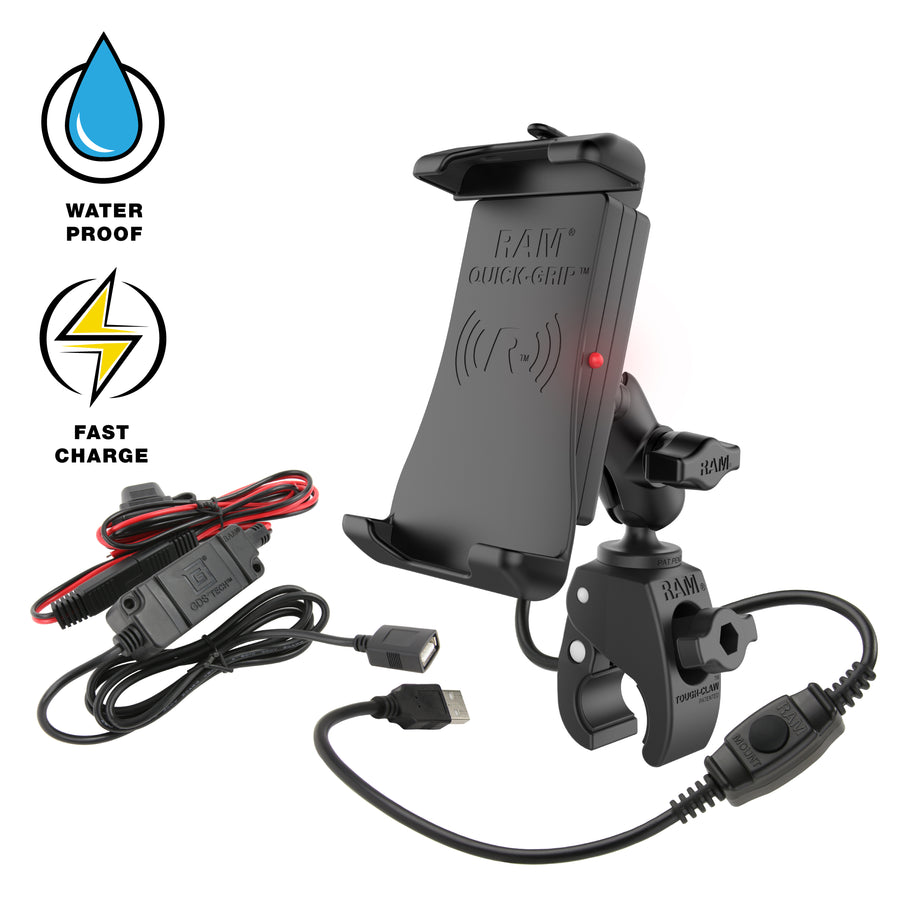

- Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
hardware included:
(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection

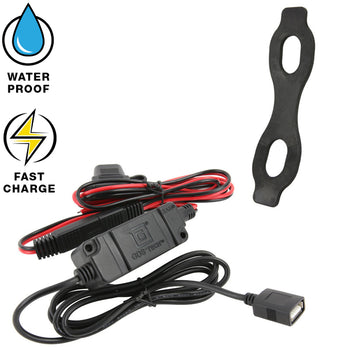

(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
holder dimensions:
Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"
clamp range:
.625" - 1.14" diameter
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Retail Box
power specifications:
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature:
0°C to +37.7°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty:
1 year warranty
Weight:
3.13 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
