B Size
Short Arm

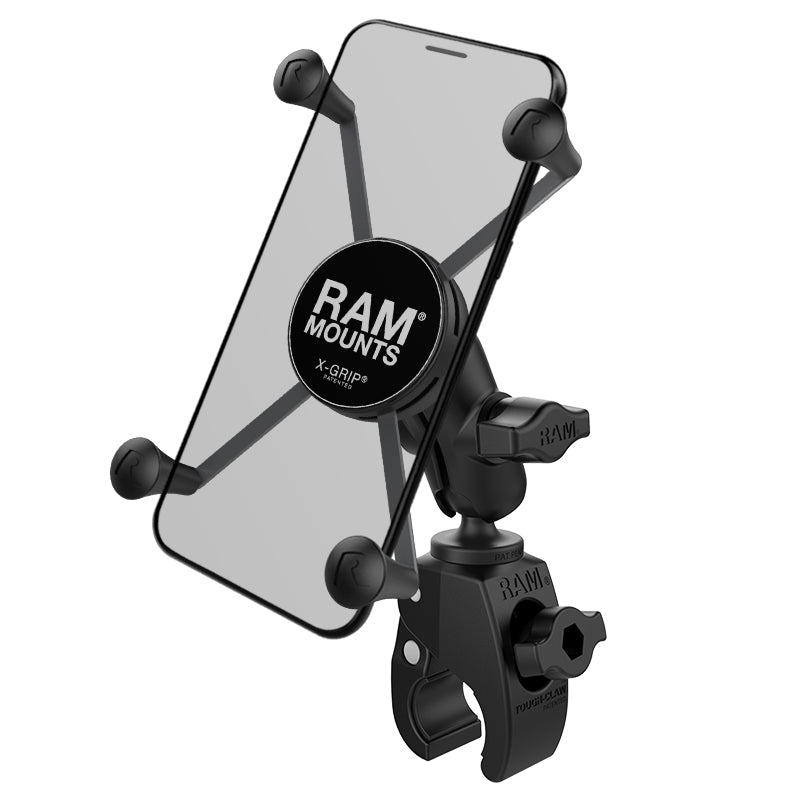

RAM® X-Grip® Large Phone Mount with Tough-Claw™ Small Clamp Base - Short
B Size
Short Arm
$91.49
Overview

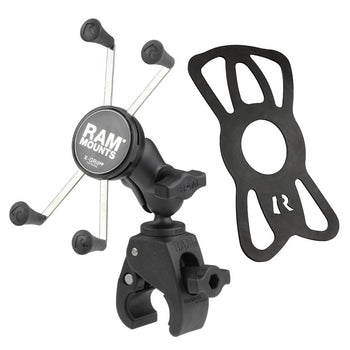

The RAM-B-400-A-HOL-UN7BU consists of the Tough-Claw™ rail clamp base, SHORT length double socket arm and universal spring loaded X-Grip® cradle for phones. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

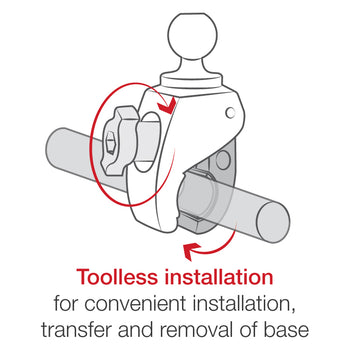

- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions:

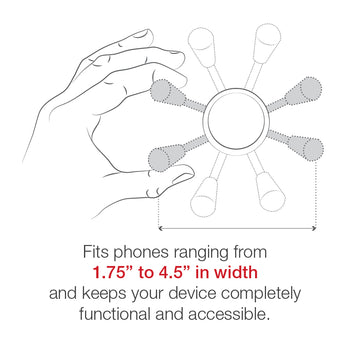

Width Range: 1.75" - 4.5"
Depth Range: .875" max
clamp range:
.625" - 1.14" diameter
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.73 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Questions & Answers
Have a Question?
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
-
Hello. I have an iPhone 11 Pro Max in an Otter Box. I just want to confirm that the rubber caps on the "X" are large enough (deep enough) to grip the Otter Box case. The depth of the case measures about 15 mm. Please advise. Thanks.
Yes, the RAM-HOL-UN10BU will accommodate a device in a case up to .875" (22mm) thick.
