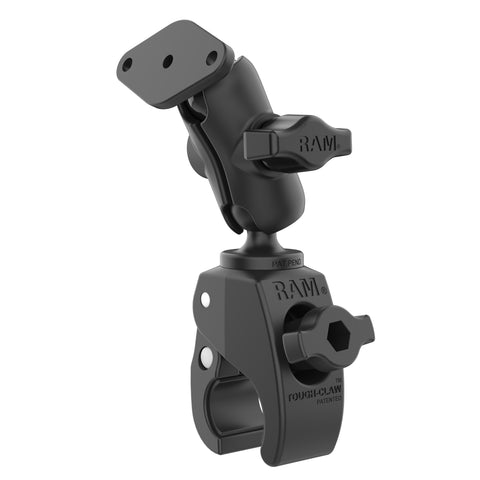

RAM® Tough-Claw™ Small Clamp Mount with Diamond Plate - Short Arm

Part#: RAM-B-400-A-238U
UPC: 793442022586

Kit Components

Previous Slide Next Slide
$65.49

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Short arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" — this product 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A

Overview

The RAM® Tough-Claw™ Small Clamp Mount with Diamond Plate - Short Arm (RAM-B-400-A-238U) consists of the small Tough-Claw™ base, short double socket arm, and diamond plate ball base. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd-shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The diamond plate ball base contains the industry standard, universal AMPS 2-hole pattern, which will connect to a large variety of RAM Mount and third-party cradles. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles.

Features

  • Small RAM® Tough-Claw™ designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 0.625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Diamond plate ball base connects to RAM® B size device holders containing the universal AMPS hole pattern
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

clamp range:

.625" - 1.14" diameter

socket to socket length:

1.75"

hole pattern:

2-Hole AMPS: 1.912"

plate size:

2.43" x 1.31"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.59 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
