RAM® X-Grip® Large Phone Mount with Motorcycle Handlebar Clamp Base
Part #: RAM-B-367-UN10U UPC: 793442951084 Patented

Product Information

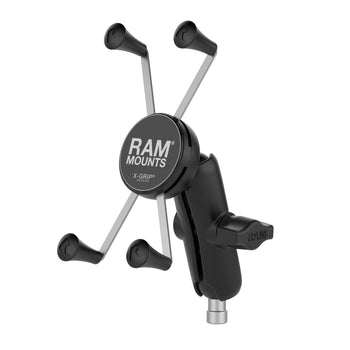

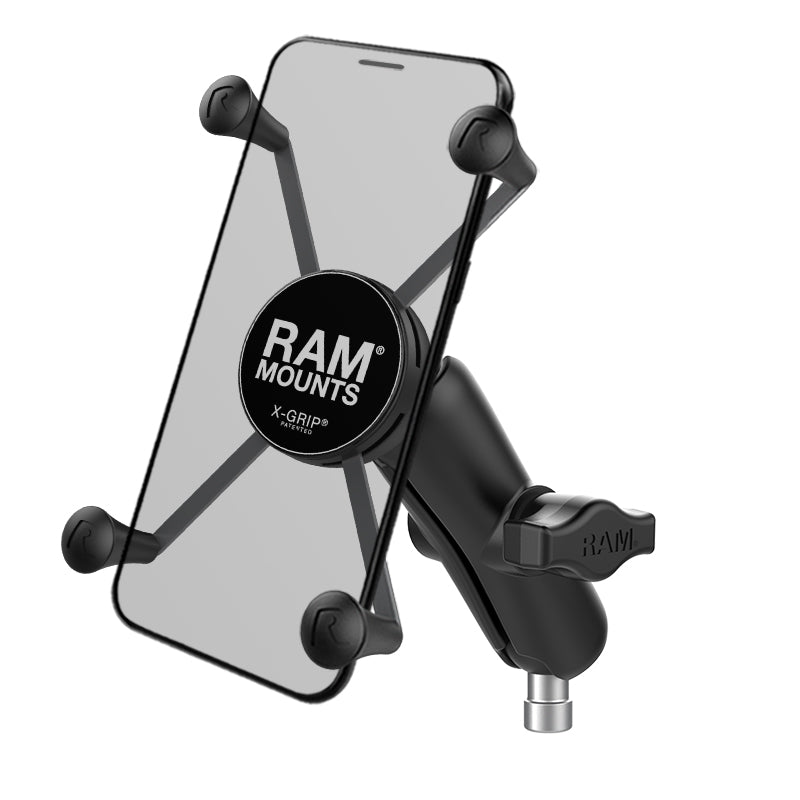

Overview	The RAM-B-367-UN10U consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Product Information

Overview

The RAM-B-367-UN10U consists of a motorcycle handlebar clamp base with M8 threads, double socket arm and universal X-Grip® cradle. This mount will replace one of the M8 bolt heads on your handlebar clamp system, positioning your device clean in the center. The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications

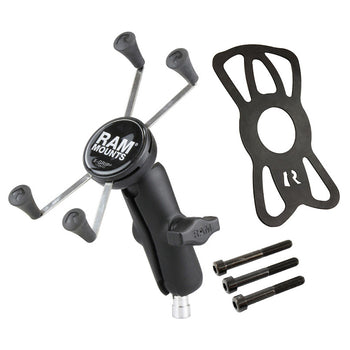

hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps (1) M8 x 55mm Socket Head Cap Screw (1) M8 x 60mm Socket Head Cap Screw (1) M8 x 65mm Socket Head Cap Screw

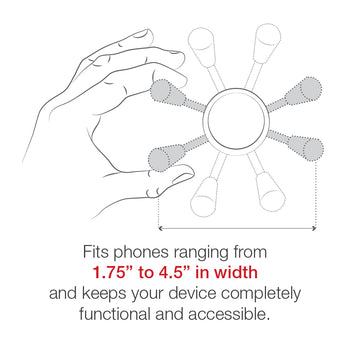

holder dimensions	Width Range: 1.75" - 4.5" Depth Range: .875" max
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite Stainless steel
packaging type	Poly Bag
Weight	0.73 lb
Additional Information	Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

RAM® X-Grip® Large Phone Mount with Motorcycle Handlebar Clamp Base

Questions about our products? Email us for support.

Patented

RAM® X-Grip® Large Phone Mount with Motorcycle Handlebar Clamp Base

Part#: RAM-B-367-UN10U

UPC: 793442951084

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPhone 6s Plus

iPhone 7 Plus

iPhone 8 Plus

iPhone Xs Max

iPhone 11 Pro Max

iPhone 12 Pro Max

iPhone 13 Pro Max

iPhone 14 Plus

iPhone 14 Pro Max

iPhone 15

iPhone 15 Plus

iPhone 15 Pro Max

iPhone 16

iPhone 16 Plus

iPhone 16 Pro

iPhone 16 Pro Max

iPhone 16e

Blackberry

Evolve X

Blackview

BV9900

BV9900 Pro

Cat

S42

S62

S62 Pro

Garmin

Drive 50

Drive 51 LM

Drive 52

Drive 61 LM

DriveSmart 51 LMT-S

DriveSmart 61 LMT-S

DriveTrack 71

Nuvi 2788LM

RV 660LMT

RV 770 LMT-S

Google

Pixel 2 XL

Pixel 3 XL

Pixel 3a XL

Pixel 7 Pro

Pixel 8 Pro

HTC

Bolt

U Ultra

Huawei

Mate 20 X

Kyocera

DuraSport 5G

LG

Fiesta 2 LTE

Fiesta LTE

G8S ThinQ

Harmony

Stylo 2 V

Stylo 3

Stylo 3 Plus Titan

Stylo 4

V20

V50 ThinQ

X charge

X venture

Magellan

TR5

TR7

Motorola

moto e4 plus

moto g4

moto z2

moto z2 play

moto z3

Rand

McNally Road Explorer 5

McNally TND 540

Razer

Phone 2

Samsung

Galaxy A7

Galaxy A7 (2017)

Galaxy A7 (2018)

Galaxy A8

Galaxy A8 (2016)

Galaxy A9 (2016)

Galaxy A9 Pro (2016)

Galaxy A9 (2018)

Galaxy A15

Galaxy A70

Galaxy A80

Galaxy A90 5G

Galaxy C7

Galaxy C7 Pro

Galaxy C9 Pro

Galaxy E7

Galaxy Grand Neo Plus

Galaxy J7

Galaxy J7 Max

Galaxy J7 V

Galaxy Note 5

Galaxy Note 10 Plus

Galaxy Note20 Ultra

Galaxy On7

Galaxy S10 5G

Galaxy S8

Galaxy S8 Active

Galaxy S21 5G

Galaxy S21+ 5G

Galaxy S21 Ultra 5G

Galaxy S22 Ultra 5G

Galaxy S23+

Galaxy S23 Ultra

Galaxy S24+

Galaxy S24 Ultra

Galaxy S25+

Galaxy S25 Ultra

Galaxy XCover7

Social

Mobile Rhino C6

Sonim

RS60

Sony

Xperia C4

Xperia L2

Xperia XA Ultra

Xperia XA1 Ultra

Xperia XA2 Ultra

Xperia XZ Premium

Additonal Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.
