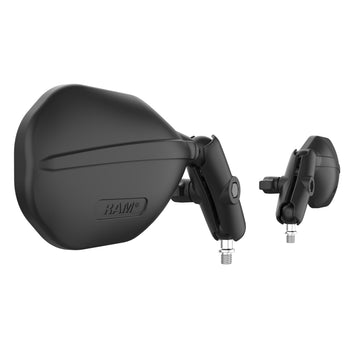

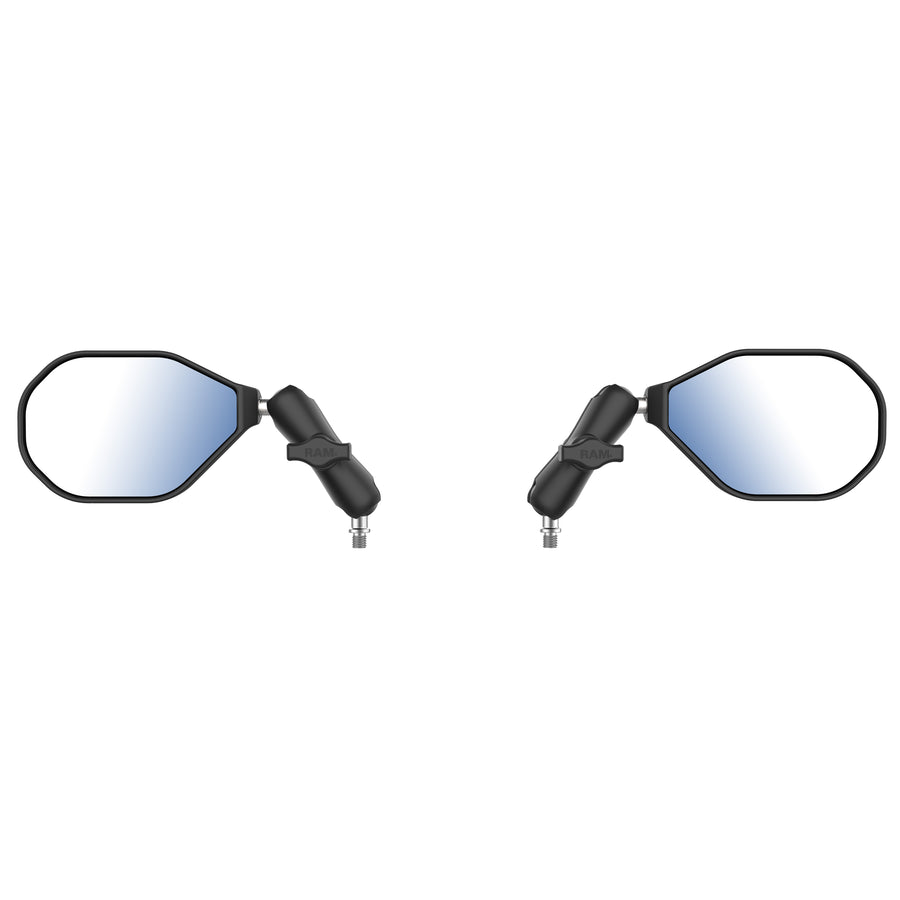

| RAM® Tough-Mirror™ Kit with M10-1.25 Bases - Medium Arm | |
|---|---|
|
Part #:
RAM-B-349-465RL
UPC:
793442017247
Features
|
|
| Product Information | |
|---|---|
| Overview | The RAM® Tough-Mirror™ Kit with M10-1.25 Bases - Medium Arm (RAM-B-349-465RL) is designed for the adventurer. Whether you're cruising down the interstate or pushing limits on technical trails, you can trust the RAM® Tough-Mirror™ to have your back. This kit features 100% genuine RAM® ball & socket components to guarantee a secure connection throughout the system. The large mirrors offer the most visibility on the market and the housing is intentionally designed to be aerodynamic and cut through wind resistance. RAM® Mounts components are rugged and made with powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite to withstand the most demanding environments. This kit comes with everything you need to get the RAM® Tough-Mirrors™ installed on your bike with two M10-1.25 RAM® ball bases, two medium B size RAM® arms, one left RAM® Tough-Mirror™, and one right RAM® Tough-Mirror™. RAM® mounting components are backed by a lifetime warranty. |
| Specifications | |
|---|---|
| socket to socket length | 3" |

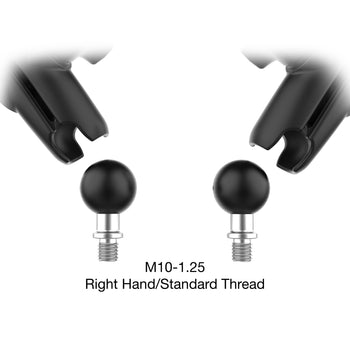

| thread pitch | Left & Right: M10-1.25 Right Hand/Standard Thread |
| ball size | B Size (1") |
| weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
| materials | Marine-grade aluminum High strength composite |
| packaging type | Retail Box |
| Weight | 1.78 lb |
| Additional Information | This kit contains ball bases for connecting to standard (right hand) M10-1.25 threads on both left and right mirrors of your bike. It is strongly recommended to confirm the thread pitch on both sides of your bike before ordering. |
RAM® Tough-Mirror™ Kit with M10-1.25 Bases - Medium Arm
Part#:
RAM-B-349-465RL
UPC:
793442017247
B Size
Medium Arm
Size Guide
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
A Size
Holds .5 lbs.
Trail Cameras
B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs.
Heavy Monitors
E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Aprilia
Caponord 1200 ABS
Caponord 1200 ABS Rally
Dorsoduro 1200
Dorsoduro 750
Dorsoduro 900
Mana 850
Mana 850 GT
Shiver 750
Shiver 750 GT
Shiver 900
SVX450
SVX550
Tuono 1000 R
Tuono 1000 R Factory
Tuono 660
Tuono 660 Factory
Tuono V4 1100
Tuono V4 1100 Factory
Tuono V4 1100 RR
Tuono V4 1100 RR Misano
Tuono V4 R
Tuono V4 R APRC
BMW
C400X
C600 Sport
C650 Sport
C650GT
F800GT
F800R
F800S
F800ST
F900XR
G310R
G650 Xchallenge
G650 Xcountry
G650 Xmoto
G650GS
G650GS Sertao
HP2 Sport
HP4 Race
K1200GT
K1200LT
K1200LT Exodus
K1200LTC
K1200LTI Icon
K1200LTS
Honda
ADV150
Africa Twin
Africa Twin Adventure Sports
Africa Twin Adventure Sports DCT
Africa Twin Adventure Sports ES
Africa Twin DCT
CB1000R
CB1000R ABS
CB1000R Black Edition ABS
CB1100
CB1100 ABS
CB1100 DLX
CB1100EX
CB1100RS
CB300F
CB300R
CB300R ABS
CB500F
CB500F ABS
CB500X
CB500X ABS
CB600F 599 Hornet
CB650F
CB650R
CB650R ABS
CB750 Hornet
CRF230M
CRF250L
CRF250L ABS
CRF250L Rally
CRF250L Rally ABS
CRF300L
CRF300L ABS
CRF300L Rally
CRF300L Rally ABS
CRF450L
CRF450RL
Crosstourer
CTX1300
CTX1300 Deluxe ABS
CTX700
CTX700 DCT
CTX700N
CTX700N DCT
Grom MSX125
Grom MSX125 ABS
Metropolitan NCH50
Metropolitan NCW50
Monkey
Monkey ABS
NAVI
NC700X
NC700X DCT ABS
NC750X
NC750X ABS
NC750X DCT ABS
PCX125
PCX150
PCX150 ABS
Rebel 1100 ABS
Rebel 1100 ABS DCT
Rebel 1100T DCT
Rebel 300
Rebel 300 ABS
Rebel 500
Rebel 500 ABS
Rebel 500 ABS SE
Rebel CMX250C
Silver Wing ABS FSC600
Silver Wing FSC600D
Valkyrie GL1800C
Varadero XL1000VA
VT1300CR Stateline
VT1300CRA Stateline ABS
VT1300CS Custom Sabre
VT1300CS Sabre
VT1300CSA
VT1300CT Interstate
VT1300CTA Interstate ABS
VT1300CX Fury
VT1300CXA Fury ABS
VT750C Shadow Aero
VT750C2 Shadow Spirit
VT750C2A Shadow Phantom
VT750C2B Shadow 750 Phantom
VT750C2B Shadow Phantom
VT750C2B Shadow750 Phantom
VT750C2BA Shadow Phantom
VT750C2SA Shadow Spirit ABS
VT750CA Shadow Aero ABS
VT750CS Shadow Aero ABS
VT750RS Shadow RS
VT750S
XR650L
Husqvarna
701 Enduro
701 Supermoto
FE350 S
FE501 S
FS450
FX350
FX450
Norden 901
Norden 901 Expedition
SMR 511
Svartpilen 401
Svartpilen 701
Vitpilen 401
Vitpilen 701
Kawasaki
ER-6n
KLR650
KLR650 ABS
KLR650 Adventure
KLR650 Adventure ABS
KLR650 S ABS
KLR650 Traveler ABS
KLX140G
KLX150
KLX230
KLX230 ABS
KLX230S
KLX230S ABS
KLX230SE
KLX230SM
KLX230SM ABS
KLX250
KLX250S
KLX250SF
KLX300
KLX300SM
Ninja 1000
Ninja 1000 ABS
Ninja 1000R
Ninja 1000SX
Versys 1000
Versys 1000 LT
Versys 1000 SE LT Plus
Versys 650
Versys 650 ABS
Versys 650 LT
W800 ABS
W800 Cafe ABS
Z H2
Z H2 SE
Z1000
Z1000 ABS
Z1000SX
Z125 Pro
Z400 ABS
Z650
Z650 50th Anniversary Edition
Z650 ABS
Z650RS
Z750
Z800 ABS
Z900
Z900 50th Anniversary Edition
Z900 ABS
Z900 SE
Z900RS
Z900RS ABS
Z900RS Cafe ABS
Z900RS SE
KTM
105 SX
105 XC
125 SX
125 XC
150 SX
150 XC
150 XC-W
150 XC-W TPI
200 XC
200 XC-W
250 EXC-F
250 R
250 SX
250 SX-F
250 SX-F Factory Edition
250 XC
250 XC TPI
250 XC-F
250 XC-W
250 XC-W TPI
250 XCF-W
250R Freeride
300 SX
300 XC
300 XC TPI
300 XC-W
300 XC-W Erzbergrodeo
300 XC-W Six Days
300 XC-W TPI
300 XC-W TPI Erzbergrodeo
300 XC-W TPI Six Days
350 EXC-F
350 SX-F
350 XC-F
350 XC-F Factory Edition
350 XC-F Kailub Russel
350 XCF-W
400 XC-W
450 EXC
450 EXC-F Six Days
450 EXC-R
450 Rally Replica
450 SMR
450 SX-F
450 SX-F Factory Edition
450 XC-F
450 XC-W
450 XCF-W
50 SX
50 SX Factory Edition
50 SX Mini
50 SXR Pro Jr
500 EXC
500 EXC-F
500 EXC-F Six Days
500 XC-W
500 XCF-W
530 EXC
530 XC-W
530 XCW Six Days
625 SXC
65 SX
690 Enduro
690 Enduro R
690 SM
85 SX (17/14)
85 SX (19/16)
85 XC
950 Super Enduro R
SX-E 5
Moto
Guzzi Audace
Guzzi Breva 750
Guzzi California 1400 Custom
Guzzi California 1400 Touring
Guzzi California Vintage
Guzzi Eldorado
Guzzi Griso 1200 8V
Guzzi Griso 8V SE
Guzzi MGX-21 Flying Fortress
Guzzi Norge 1200 GT 8V
Guzzi Stelvio 1200
Guzzi Stelvio 1200 NTX
Guzzi V100 Mandello
Guzzi V100 Mandello S
Guzzi V7 Classic
Guzzi V7 II Racer ABS
Guzzi V7 II Scrambler ABS
Guzzi V7 II Special
Guzzi V7 II Stone ABS
Guzzi V7 II Stornello
Guzzi V7 III Anniversario
Guzzi V7 III Carbon
Guzzi V7 III Carbon Shine
Guzzi V7 III Milano
Guzzi V7 III Racer
Guzzi V7 III Rough
Guzzi V7 III Special
Guzzi V7 III Stone
Guzzi V7 Racer
Guzzi V7 Scrambler
Guzzi V7 Special
Guzzi V7 Stone
Guzzi V85 TT
Guzzi V85 TT Adventure
Guzzi V85 TT Travel
Guzzi V9 Bobber
Guzzi V9 Bobber Sport
Guzzi V9 Roamer
Suzuki
Burgman 200
Burgman 400
C50 Boulevard
C50 Boulevard SE
C50B Boulevard
C50C Boulevard
C50T Boulevard
C90B Boulevard
C90T Boulevard
DR-Z400E
DR-Z400S
DR-Z400SM
DR200
DR200S
DR200SE
DR650S
DR650SE
GS500
GS500F
GSF1200S Bandit
GSF1250S Bandit
GSF1250S Bandit ABS
GSR 600
GSR 750
GSX-8S
GSX-S1000
GSX-S1000F
GSX-S1000FZ
GSX-S1000GT
GSX-S1000GT Plus
GSX-S1000Z
GSX-S750
GSX-S750Z
GSX-S750Z ABS
GSX1300BK B-King
GW250
GW250F
GZ250
Katana GSX-S1000S
M109R BOSS Boulevard
M109R Boulevard
M109R Boulevard Limited Edition
M50 Boulevard
M50 Boulevard Limited
M90 Boulevard
S40 Boulevard
SFV650 Gladius
SV650
SV650 ABS
SV650X ABS
TU250X
V-Strom 1000
V-Strom 1000 Adventure
V-Strom 1000XT
V-Strom 1050
V-Strom 1050DE
V-Strom 1050DE Adventure
V-Strom 1050XT
V-Strom 1050XT Adventure
V-Strom 650
V-Strom 650 Adventure
V-Strom 650XT
V-Strom 650XT Adventure
V-Strom 800DE
V-Strom 800DE Adventure
VanVan 200
VZ Intruder M800
Triumph
Bonneville
Bonneville Bobber
Bonneville Bobber Black
Bonneville SE
Bonneville Speed Twin
Bonneville Street Cup
Bonneville Street Scrambler
Bonneville Street Twin
Bonneville T100
Bonneville T120
Scrambler 900
Speedmaster
Street Triple 675
Street Triple 675 R
Thunderbird
Thunderbird 1600
Thunderbird ABS
Thunderbird Commander
Thunderbird LT
Thunderbird SE
Thunderbird Storm
Tiger 1050
Tiger 1200 Cxa
Tiger 1200 GT
Tiger 1200 GT Explorer
Tiger 1200 GT Pro
Tiger 1200 Rally Explorer
Tiger 1200 Rally Pro
Tiger 1200 XCx
Tiger 1200 XR
Tiger 1200 XRt
Tiger 1200 XRx
Tiger 1200 XRx Low
Tiger 800
Tiger 800 XC
Tiger 800 XCa
Tiger 800 XCx
Tiger 800 XR
Tiger 800 XRt
Tiger 800 XRx
Tiger 850 Sport
Tiger 900
Tiger 900 Bond Edition
Tiger 900 GT
Tiger 900 GT Low
Tiger 900 GT Pro
Tiger 900 Rally
Tiger 900 Rally Pro
Tiger Explorer
Tiger Explorer XC
Tiger Explorer XCa
Tiger Explorer XCx
Tiger Explorer XCx Low
Tiger Explorer XR
Tiger Explorer XRt
Tiger Explorer XRx
Tiger Explorer XRx Low
Tiger Sport 660
Trident 660
Additonal Information:
This kit contains ball bases for connecting to standard (right hand) M10-1.25 threads on both left and right mirrors of your bike. It is strongly recommended to confirm the thread pitch on both sides of your bike before ordering.
Kit Components
Previous Slide
Next Slide
$145.99
B Size
Medium Arm
Size Guide
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.
A Size
Holds .5 lbs.
Trail Cameras
B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs.
Heavy Monitors
E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
| Size | A Size | B Size | C Size | D Size | E Size |
|---|---|---|---|---|---|
| Short Arm | Overall Length N/A |
Overall Length 2.42" |
Overall Length 3.56" |
Overall Length 5.69" |
Overall Length 5.69" |
| Socket-to-Socket Length N/A |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 2.5" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
| Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
| Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
| Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
| Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Vehicles
Aprilia
Caponord 1200 ABS
Caponord 1200 ABS Rally
Dorsoduro 1200
Dorsoduro 750
Dorsoduro 900
Mana 850
Mana 850 GT
Shiver 750
Shiver 750 GT
Shiver 900
SVX450
SVX550
Tuono 1000 R
Tuono 1000 R Factory
Tuono 660
Tuono 660 Factory
Tuono V4 1100
Tuono V4 1100 Factory
Tuono V4 1100 RR
Tuono V4 1100 RR Misano
Tuono V4 R
Tuono V4 R APRC
BMW
C400X
C600 Sport
C650 Sport
C650GT
F800GT
F800R
F800S
F800ST
F900XR
G310R
G650 Xchallenge
G650 Xcountry
G650 Xmoto
G650GS
G650GS Sertao
HP2 Sport
HP4 Race
K1200GT
K1200LT
K1200LT Exodus
K1200LTC
K1200LTI Icon
K1200LTS
Honda
ADV150
Africa Twin
Africa Twin Adventure Sports
Africa Twin Adventure Sports DCT
Africa Twin Adventure Sports ES
Africa Twin DCT
CB1000R
CB1000R ABS
CB1000R Black Edition ABS
CB1100
CB1100 ABS
CB1100 DLX
CB1100EX
CB1100RS
CB300F
CB300R
CB300R ABS
CB500F
CB500F ABS
CB500X
CB500X ABS
CB600F 599 Hornet
CB650F
CB650R
CB650R ABS
CB750 Hornet
CRF230M
CRF250L
CRF250L ABS
CRF250L Rally
CRF250L Rally ABS
CRF300L
CRF300L ABS
CRF300L Rally
CRF300L Rally ABS
CRF450L
CRF450RL
Crosstourer
CTX1300
CTX1300 Deluxe ABS
CTX700
CTX700 DCT
CTX700N
CTX700N DCT
Grom MSX125
Grom MSX125 ABS
Metropolitan NCH50
Metropolitan NCW50
Monkey
Monkey ABS
NAVI
NC700X
NC700X DCT ABS
NC750X
NC750X ABS
NC750X DCT ABS
PCX125
PCX150
PCX150 ABS
Rebel 1100 ABS
Rebel 1100 ABS DCT
Rebel 1100T DCT
Rebel 300
Rebel 300 ABS
Rebel 500
Rebel 500 ABS
Rebel 500 ABS SE
Rebel CMX250C
Silver Wing ABS FSC600
Silver Wing FSC600D
Valkyrie GL1800C
Varadero XL1000VA
VT1300CR Stateline
VT1300CRA Stateline ABS
VT1300CS Custom Sabre
VT1300CS Sabre
VT1300CSA
VT1300CT Interstate
VT1300CTA Interstate ABS
VT1300CX Fury
VT1300CXA Fury ABS
VT750C Shadow Aero
VT750C2 Shadow Spirit
VT750C2A Shadow Phantom
VT750C2B Shadow 750 Phantom
VT750C2B Shadow Phantom
VT750C2B Shadow750 Phantom
VT750C2BA Shadow Phantom
VT750C2SA Shadow Spirit ABS
VT750CA Shadow Aero ABS
VT750CS Shadow Aero ABS
VT750RS Shadow RS
VT750S
XR650L
Husqvarna
701 Enduro
701 Supermoto
FE350 S
FE501 S
FS450
FX350
FX450
Norden 901
Norden 901 Expedition
SMR 511
Svartpilen 401
Svartpilen 701
Vitpilen 401
Vitpilen 701
Kawasaki
ER-6n
KLR650
KLR650 ABS
KLR650 Adventure
KLR650 Adventure ABS
KLR650 S ABS
KLR650 Traveler ABS
KLX140G
KLX150
KLX230
KLX230 ABS
KLX230S
KLX230S ABS
KLX230SE
KLX230SM
KLX230SM ABS
KLX250
KLX250S
KLX250SF
KLX300
KLX300SM
Ninja 1000
Ninja 1000 ABS
Ninja 1000R
Ninja 1000SX
Versys 1000
Versys 1000 LT
Versys 1000 SE LT Plus
Versys 650
Versys 650 ABS
Versys 650 LT
W800 ABS
W800 Cafe ABS
Z H2
Z H2 SE
Z1000
Z1000 ABS
Z1000SX
Z125 Pro
Z400 ABS
Z650
Z650 50th Anniversary Edition
Z650 ABS
Z650RS
Z750
Z800 ABS
Z900
Z900 50th Anniversary Edition
Z900 ABS
Z900 SE
Z900RS
Z900RS ABS
Z900RS Cafe ABS
Z900RS SE
KTM
105 SX
105 XC
125 SX
125 XC
150 SX
150 XC
150 XC-W
150 XC-W TPI
200 XC
200 XC-W
250 EXC-F
250 R
250 SX
250 SX-F
250 SX-F Factory Edition
250 XC
250 XC TPI
250 XC-F
250 XC-W
250 XC-W TPI
250 XCF-W
250R Freeride
300 SX
300 XC
300 XC TPI
300 XC-W
300 XC-W Erzbergrodeo
300 XC-W Six Days
300 XC-W TPI
300 XC-W TPI Erzbergrodeo
300 XC-W TPI Six Days
350 EXC-F
350 SX-F
350 XC-F
350 XC-F Factory Edition
350 XC-F Kailub Russel
350 XCF-W
400 XC-W
450 EXC
450 EXC-F Six Days
450 EXC-R
450 Rally Replica
450 SMR
450 SX-F
450 SX-F Factory Edition
450 XC-F
450 XC-W
450 XCF-W
50 SX
50 SX Factory Edition
50 SX Mini
50 SXR Pro Jr
500 EXC
500 EXC-F
500 EXC-F Six Days
500 XC-W
500 XCF-W
530 EXC
530 XC-W
530 XCW Six Days
625 SXC
65 SX
690 Enduro
690 Enduro R
690 SM
85 SX (17/14)
85 SX (19/16)
85 XC
950 Super Enduro R
SX-E 5
Moto
Guzzi Audace
Guzzi Breva 750
Guzzi California 1400 Custom
Guzzi California 1400 Touring
Guzzi California Vintage
Guzzi Eldorado
Guzzi Griso 1200 8V
Guzzi Griso 8V SE
Guzzi MGX-21 Flying Fortress
Guzzi Norge 1200 GT 8V
Guzzi Stelvio 1200
Guzzi Stelvio 1200 NTX
Guzzi V100 Mandello
Guzzi V100 Mandello S
Guzzi V7 Classic
Guzzi V7 II Racer ABS
Guzzi V7 II Scrambler ABS
Guzzi V7 II Special
Guzzi V7 II Stone ABS
Guzzi V7 II Stornello
Guzzi V7 III Anniversario
Guzzi V7 III Carbon
Guzzi V7 III Carbon Shine
Guzzi V7 III Milano
Guzzi V7 III Racer
Guzzi V7 III Rough
Guzzi V7 III Special
Guzzi V7 III Stone
Guzzi V7 Racer
Guzzi V7 Scrambler
Guzzi V7 Special
Guzzi V7 Stone
Guzzi V85 TT
Guzzi V85 TT Adventure
Guzzi V85 TT Travel
Guzzi V9 Bobber
Guzzi V9 Bobber Sport
Guzzi V9 Roamer
Suzuki
Burgman 200
Burgman 400
C50 Boulevard
C50 Boulevard SE
C50B Boulevard
C50C Boulevard
C50T Boulevard
C90B Boulevard
C90T Boulevard
DR-Z400E
DR-Z400S
DR-Z400SM
DR200
DR200S
DR200SE
DR650S
DR650SE
GS500
GS500F
GSF1200S Bandit
GSF1250S Bandit
GSF1250S Bandit ABS
GSR 600
GSR 750
GSX-8S
GSX-S1000
GSX-S1000F
GSX-S1000FZ
GSX-S1000GT
GSX-S1000GT Plus
GSX-S1000Z
GSX-S750
GSX-S750Z
GSX-S750Z ABS
GSX1300BK B-King
GW250
GW250F
GZ250
Katana GSX-S1000S
M109R BOSS Boulevard
M109R Boulevard
M109R Boulevard Limited Edition
M50 Boulevard
M50 Boulevard Limited
M90 Boulevard
S40 Boulevard
SFV650 Gladius
SV650
SV650 ABS
SV650X ABS
TU250X
V-Strom 1000
V-Strom 1000 Adventure
V-Strom 1000XT
V-Strom 1050
V-Strom 1050DE
V-Strom 1050DE Adventure
V-Strom 1050XT
V-Strom 1050XT Adventure
V-Strom 650
V-Strom 650 Adventure
V-Strom 650XT
V-Strom 650XT Adventure
V-Strom 800DE
V-Strom 800DE Adventure
VanVan 200
VZ Intruder M800
Triumph
Bonneville
Bonneville Bobber
Bonneville Bobber Black
Bonneville SE
Bonneville Speed Twin
Bonneville Street Cup
Bonneville Street Scrambler
Bonneville Street Twin
Bonneville T100
Bonneville T120
Scrambler 900
Speedmaster
Street Triple 675
Street Triple 675 R
Thunderbird
Thunderbird 1600
Thunderbird ABS
Thunderbird Commander
Thunderbird LT
Thunderbird SE
Thunderbird Storm
Tiger 1050
Tiger 1200 Cxa
Tiger 1200 GT
Tiger 1200 GT Explorer
Tiger 1200 GT Pro
Tiger 1200 Rally Explorer
Tiger 1200 Rally Pro
Tiger 1200 XCx
Tiger 1200 XR
Tiger 1200 XRt
Tiger 1200 XRx
Tiger 1200 XRx Low
Tiger 800
Tiger 800 XC
Tiger 800 XCa
Tiger 800 XCx
Tiger 800 XR
Tiger 800 XRt
Tiger 800 XRx
Tiger 850 Sport
Tiger 900
Tiger 900 Bond Edition
Tiger 900 GT
Tiger 900 GT Low
Tiger 900 GT Pro
Tiger 900 Rally
Tiger 900 Rally Pro
Tiger Explorer
Tiger Explorer XC
Tiger Explorer XCa
Tiger Explorer XCx
Tiger Explorer XCx Low
Tiger Explorer XR
Tiger Explorer XRt
Tiger Explorer XRx
Tiger Explorer XRx Low
Tiger Sport 660
Trident 660
Additonal Information:
This kit contains ball bases for connecting to standard (right hand) M10-1.25 threads on both left and right mirrors of your bike. It is strongly recommended to confirm the thread pitch on both sides of your bike before ordering.
Kit Components
Previous Slide
Next Slide
Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-349-465RL!
We'll email you once the item is available.
RAM® Tough-Mirror™ Kit with M10-1.25 Bases - Medium Arm
ram-b-349-465rl
Overview

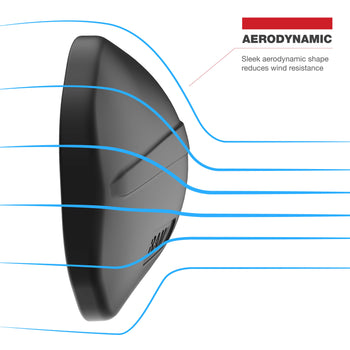

The RAM® Tough-Mirror™ Kit with M10-1.25 Bases - Medium Arm (RAM-B-349-465RL) is designed for the adventurer. Whether you're cruising down the interstate or pushing limits on technical trails, you can trust the RAM® Tough-Mirror™ to have your back. This kit features 100% genuine RAM® ball & socket components to guarantee a secure connection throughout the system. The large mirrors offer the most visibility on the market and the housing is intentionally designed to be aerodynamic and cut through wind resistance. RAM® Mounts components are rugged and made with powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite to withstand the most demanding environments. This kit comes with everything you need to get the RAM® Tough-Mirrors™ installed on your bike with two M10-1.25 RAM® ball bases, two medium B size RAM® arms, one left RAM® Tough-Mirror™, and one right RAM® Tough-Mirror™. RAM® mounting components are backed by a lifetime warranty.
Features

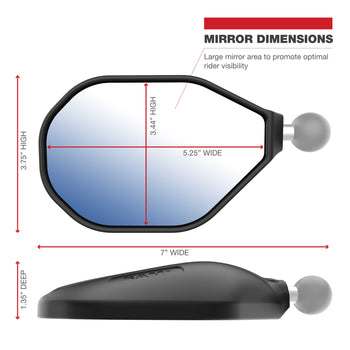

- Rugged vehicle accessory mirrors designed to provide the most visibility on the market

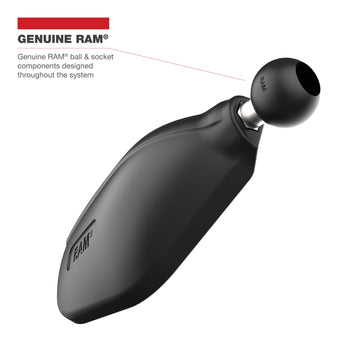

- 100% genuine RAM® components ensure secure connection points and long-term system quality
- Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system and vibration damping
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® mounting components backed by a lifetime warranty
socket to socket length:
3"
thread pitch:
Left & Right: M10-1.25 Right Hand/Standard Thread
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Retail Box
Weight:
1.78 lb
Additional Information:
This kit contains ball bases for connecting to standard (right hand) M10-1.25 threads on both left and right mirrors of your bike. It is strongly recommended to confirm the thread pitch on both sides of your bike before ordering.
Add-on & Accessories
RAM® Tough-Mirror™ Accessories
Previous Slide
Next Slide
