Patented

RAM® Dashboard Mount for Motive AI Dashcam with Extension Bracket

Part#: RAM-B-347-379-252025-KEY5-MTVU
UPC: 793442034404

Kit Components

Previous Slide Next Slide
$110.49

Overview

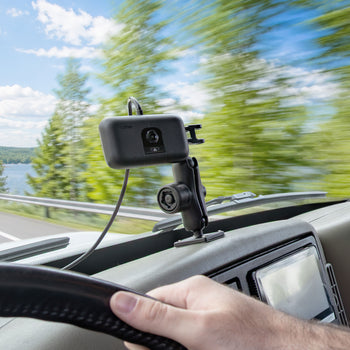

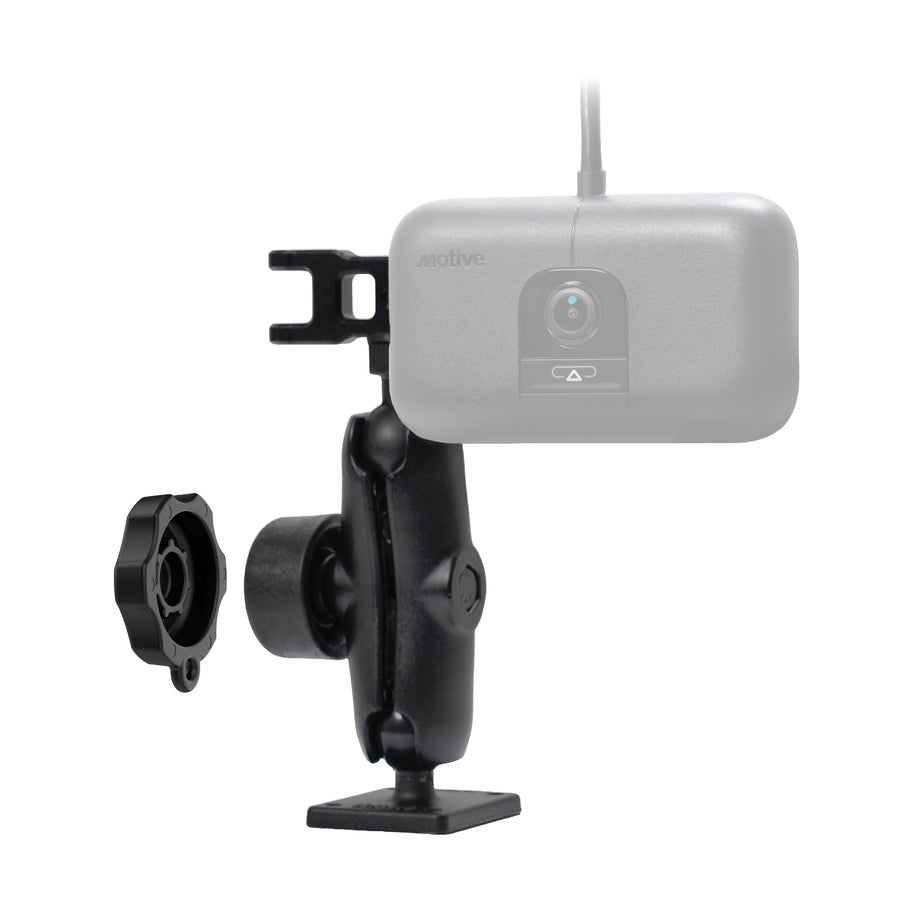

The RAM® Dashboard Mount for Motive AI Dashcam with Extension Bracket (RAM-B-347-379-252025-KEY5-MTVU) is a complete mounting solution for securing the Motive AI Dashcam to a dashboard. This kit includes a Threaded Camera Extension Bracket, B-size RAM® Tough-Ball™ with 1/4" threaded stud, RAM® Pin-Lock™ B-size medium double socket arm, backing plate adapter, and adhesive mounting pad. Choose between the backing plate adapter for a permanent drill-down installation or the included adhesive pad for a no-drill mounting option. The extension bracket provides additional camera adjustability while maintaining full visibility of both the front and rear cameras. For added security, the RAM® Pin-Lock™ Security Knob helps deter theft and tampering while keeping the camera secure. Built on the RAM® Mounts ball-and-socket system, this mount provides near-infinite adjustability for optimal camera positioning.

Features

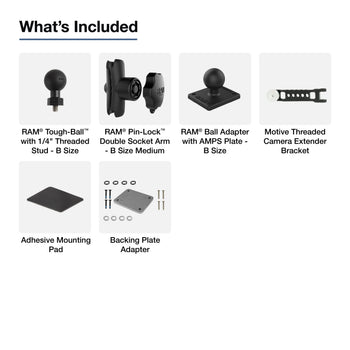

  • Bundle includes Motive Threaded Camera Extension Bracket, B Size RAM® Tough-Ball™ with 1/4" Threaded Stud, RAM® Pin-Lock™ B Size Medium Double Socket Arm, Backing Plate Adapter, and Adhesive Mounting Pad
  • Included Adhesive Mounting Pad provides no-drill installation option
  • Extension bracket allows for use of both front and rear cameras on Motive AI Dashcam
  • Locking knob on arm provides additional theft deterrence
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

hardware included:

(1) Extension Bracket
(1) Knob Key
(1) Dash Adhesive Pad
(1) Dash Backing Plate
(4) #10-24 x 1" Machine Screws
(4) #10 Lock Washers
(4) #8-32 x 1" Machine Screws
(4) #8 Lock Washers

socket to socket length:

3"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

thread pitch:

1/4"-20

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

0.95 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Motive AI Dashcam Dashboard Mount Instructions

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Dashboard Mount for Motive AI Dashcam with Extension Bracket
$110.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
