RAM® Motorcycle Fork Stem Mount with 1/4"-20 Action Camera Adapter | |
---|---|
Part #:
RAM-B-342-366U
UPC:
793442943836
|
![]() |
Product Information | |
---|---|

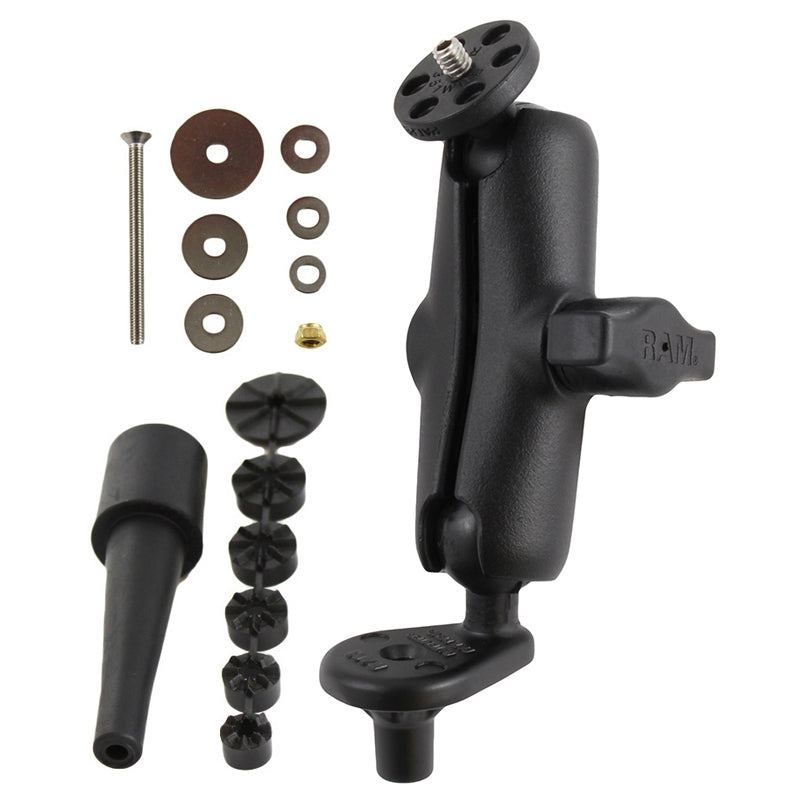

Overview | The RAM-B-342-366U consists of a fork stem base, double socket arm and 1" diameter rubber ball, connected to a round plate with 1/4"-20 camera thread. The RAM® Motorcycle Fork Stem Base is one of the cleanest and most popular solutions for mounting your device cleanly on the center of your bike. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”). |
Specifications | |
---|---|
hardware included | (1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes (1) M5 x 60mm Machine Screw (1) Steel Washer Set (1) Nut Pocket Washer Set (1) Brass Nylock Nut |
socket to socket length | 3" |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum High strength composite |
packaging type | Poly Bag |
Weight | 0.59 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Cameras
that contain 1/4"-20 Female Threaded Hole
Compatible Vehicles
Aprilia
RS 660
RS 660 Extrema
RSV4 1100
RSV4 1100 Factory
RSV4 APRC ABS SBK SE
RSV4 Factory APRC
RSV4 R
RSV4 R APRC
RSV4 RF
RSV4 RR
RSV4 RR Misano
Tuono V4 1100
Tuono V4 1100 Factory
Tuono V4 1100 RR
Tuono V4 1100 RR Misano
Tuono V4 R
Tuono V4 R APRC
prilia
RSV4
BMW
F650
F800R
HP4 Race
M1000R
M1000RR
R nineT Racer
S1000RR
CFMOTO
300SS
Ducati
848
1199 Panigale
1199 Panigale R
1199 Panigale S
1199 Panigale S Tricolore
1199 Superleggera
1299 Panigale
1299 Panigale R Final Edition
1299 Panigale S
1299 Superleggera
899 Panigale
959 Panigale
959 Panigale Corse
Panigale V2
Panigale V2 Bayliss
Panigale V4
Panigale V4 R
Panigale V4 S
Panigale V4 S Corse
Panigale V4 SP
Panigale V4 SP2
Superleggera V4
Honda
CBR250R
CBR250R ABS
VFR1200
VFR1200 DCT
VFR1200X ABS
VFR1200X DCT ABS
Kawasaki
Ninja H2
Ninja H2 SX
Ninja H2 SX SE
Ninja H2 SX SE Plus
Ninja H2R
Ninja ZX-14
Ninja ZX-14R
Ninja ZX-14R ABS
Ninja ZX-14RR
Moto
Guzzi MGX-21 Flying Fortress
Suzuki
GSX-R1000
GSX-R1000R
GSX-R1000RZ
GSX-R600
GSX-R600Z
GSX-R750
GSX-R750Z
Hayabusa
Hayabusa GSX1300R
V-Strom 1000
V-Strom 1000 Adventure
V-Strom 1000XT
V-Strom 1050
V-Strom 1050DE
V-Strom 1050DE Adventure
V-Strom 1050XT
V-Strom 1050XT Adventure
Triumph
Daytona Moto2 765
Speed Triple 765 Moto 2
Street Triple 675
Street Triple 675 R
Street Triple 765 Moto 2
Street Triple 765 R
Street Triple 765 RS
Street Triple 765 S
Yamaha
MT-10
MT-10 SP
R1
R1 LE
R1 World GP
R1M
R1S
R6
R6 GYTR
R6 World GP
R6S
XV1900 Star Eluder
Kit Components


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Cameras
that contain 1/4"-20 Female Threaded Hole
Compatible Vehicles
Aprilia
RS 660
RS 660 Extrema
RSV4 1100
RSV4 1100 Factory
RSV4 APRC ABS SBK SE
RSV4 Factory APRC
RSV4 R
RSV4 R APRC
RSV4 RF
RSV4 RR
RSV4 RR Misano
Tuono V4 1100
Tuono V4 1100 Factory
Tuono V4 1100 RR
Tuono V4 1100 RR Misano
Tuono V4 R
Tuono V4 R APRC
prilia
RSV4
BMW
F650
F800R
HP4 Race
M1000R
M1000RR
R nineT Racer
S1000RR
CFMOTO
300SS
Ducati
848
1199 Panigale
1199 Panigale R
1199 Panigale S
1199 Panigale S Tricolore
1199 Superleggera
1299 Panigale
1299 Panigale R Final Edition
1299 Panigale S
1299 Superleggera
899 Panigale
959 Panigale
959 Panigale Corse
Panigale V2
Panigale V2 Bayliss
Panigale V4
Panigale V4 R
Panigale V4 S
Panigale V4 S Corse
Panigale V4 SP
Panigale V4 SP2
Superleggera V4
Honda
CBR250R
CBR250R ABS
VFR1200
VFR1200 DCT
VFR1200X ABS
VFR1200X DCT ABS
Kawasaki
Ninja H2
Ninja H2 SX
Ninja H2 SX SE
Ninja H2 SX SE Plus
Ninja H2R
Ninja ZX-14
Ninja ZX-14R
Ninja ZX-14R ABS
Ninja ZX-14RR
Moto
Guzzi MGX-21 Flying Fortress
Suzuki
GSX-R1000
GSX-R1000R
GSX-R1000RZ
GSX-R600
GSX-R600Z
GSX-R750
GSX-R750Z
Hayabusa
Hayabusa GSX1300R
V-Strom 1000
V-Strom 1000 Adventure
V-Strom 1000XT
V-Strom 1050
V-Strom 1050DE
V-Strom 1050DE Adventure
V-Strom 1050XT
V-Strom 1050XT Adventure
Triumph
Daytona Moto2 765
Speed Triple 765 Moto 2
Street Triple 675
Street Triple 675 R
Street Triple 765 Moto 2
Street Triple 765 R
Street Triple 765 RS
Street Triple 765 S
Yamaha
MT-10
MT-10 SP
R1
R1 LE
R1 World GP
R1M
R1S
R6
R6 GYTR
R6 World GP
R6S
XV1900 Star Eluder
Kit Components

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-342-366U!
We'll email you once the item is available.
Overview
The RAM-B-342-366U consists of a fork stem base, double socket arm and 1" diameter rubber ball, connected to a round plate with 1/4"-20 camera thread. The RAM® Motorcycle Fork Stem Base is one of the cleanest and most popular solutions for mounting your device cleanly on the center of your bike. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).
hardware included:
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
0.59 lb
