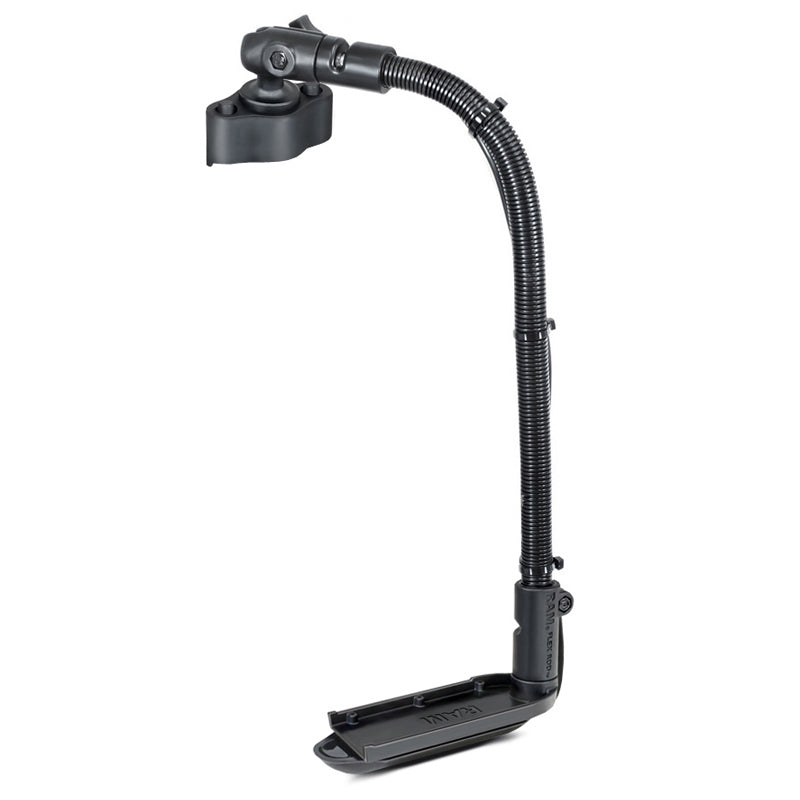

RAM^® Track Ball^™ Transducer Mount for Lowrance StructureScan
Part #: RAM-B-316-18-TRA3-383 UPC: 793442942464 Patented

Product Information

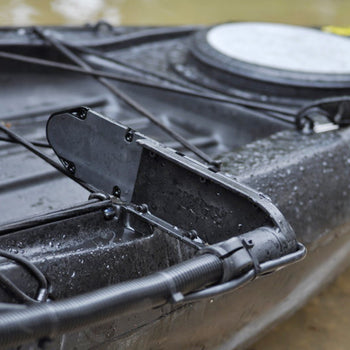

Overview	Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. This transducer mount enables quick, effective deployment and retrieval of your Lowrance StructureScan LSS transducer, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the transducer mount can quickly be moved to a different kayak with an existing 1" RAM ball. Add a RAM ball mount for the Lowrance HDS-7 Fishfinder, and you have a complete mounting solution for your next fishing adventure. Compatible transducers include the Lowrance StructureScan LSS-2 and the Lowrance StructureScan LSS-1. This product is not recommended for top loading gear tracks.

Product Information

Overview

Kayak fishing is all about adaptability. RAM Mount offers the widest selection of kayak fishing accessories to adapt to a wide range of fishing scenarios. This transducer mount enables quick, effective deployment and retrieval of your Lowrance StructureScan LSS transducer, while protecting it from damage. Perfect for kayak applications, the included rigid mounting arm can quickly be retrieved if you enter shallow water or when beaching your kayak. With little effort, the transducer mount can quickly be moved to a different kayak with an existing 1" RAM ball. Add a RAM ball mount for the Lowrance HDS-7 Fishfinder, and you have a complete mounting solution for your next fishing adventure. Compatible transducers include the Lowrance StructureScan LSS-2 and the Lowrance StructureScan LSS-1. This product is not recommended for top loading gear tracks.

Specifications
hardware included	Assembly Hardware (6) #6-32 x 3/8" Sheet Metal Screws
t bolt dimensions	.248" x .93"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Box
Weight	2.98 lb

RAM<sup>®</sup> Track Ball<sup>™</sup> Transducer Mount for Lowrance StructureScan

Questions about our products? Email us for support.

Patented

RAM^® Track Ball^™ Transducer Mount for Lowrance StructureScan

Part#: RAM-B-316-18-TRA3-383

UPC: 793442942464

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
