Overview

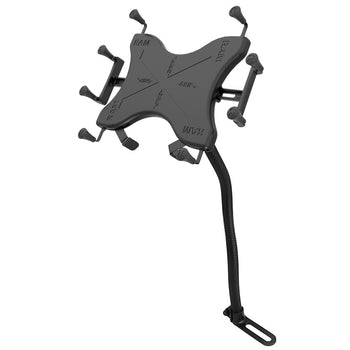

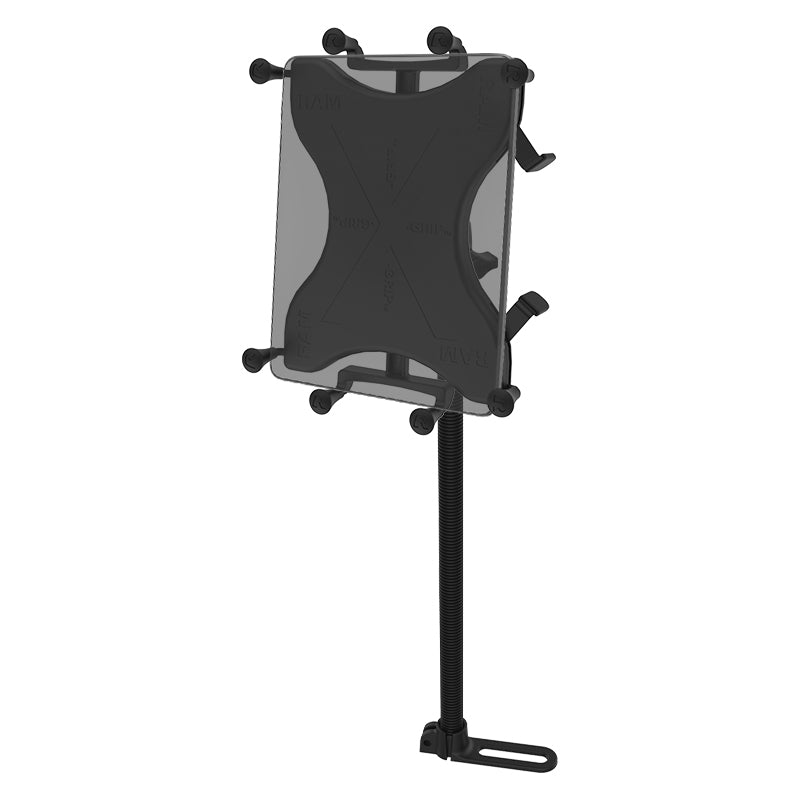

The RAM-B-316-1-UN9 consists of the RAM POD I universal No-Drill® vehicle base, 18” rigid aluminum rod, socket system and universal X-Grip® clamping cradle for 9"-11" tablets. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device to its optimum viewing location. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.
Features
- Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware

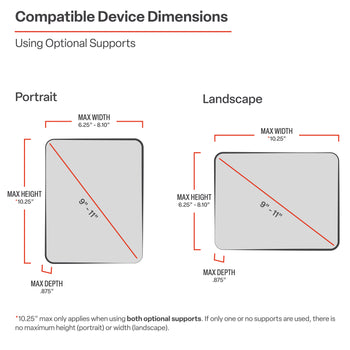

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.3 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
This part says it has a maxium height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the option side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
-
Will this holder not work if the additional side supports do not fit my tablet?

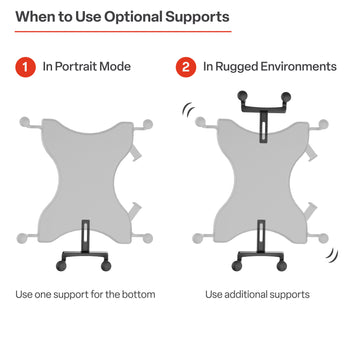

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
Details advise that 10.25" height is achievable with "Optional Supports". Are these support provided as part of this item? Or do they need to be purchased separately?

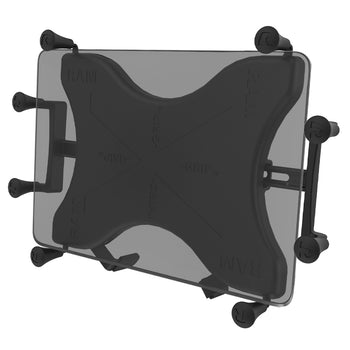

The optional side supports are provided with the RAM-HOL-UN9U, you won't need to purchase those separately.
