RAM^® Pod^™ I Vehicle Mount with 18" Aluminum Rod and Round Plate - B Size
Part #: RAM-B-316-1-202U UPC: 793442921193 Patented Features Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM^® device holders Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Pod^™ I Vehicle Mount with 18" Aluminum Rod and Round Plate - B Size

Part #: RAM-B-316-1-202U UPC: 793442921193 Patented

Features

Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM^® device holders
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Pod<sup>™</sup> I Vehicle Mount with 18

Product Information

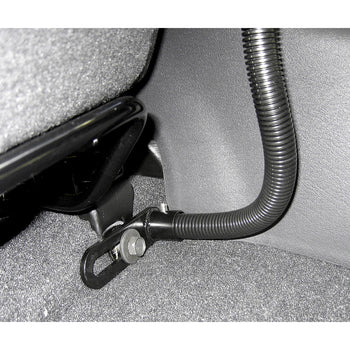

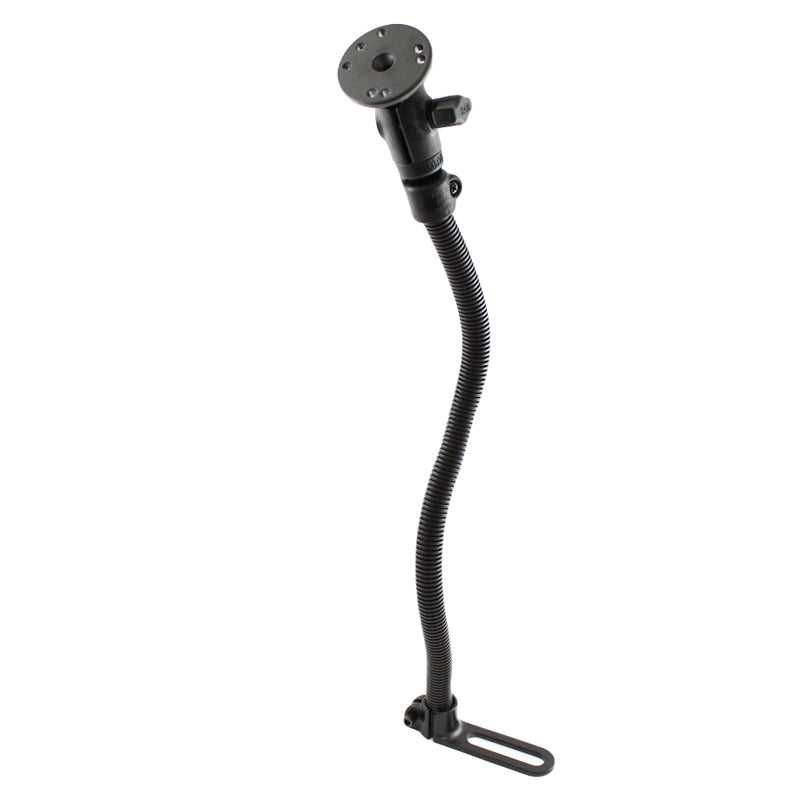

Overview	The RAM^® No-Drill^™ RAM-B-316-1-202U vehicle mount consists of the RAM^® POD^™ I base, 18” rigid aluminum rod, B Size 1" ball socket arm, and a round ball plate. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device an ideal viewing and operating angle. The 2.5" diameter round base adapter contains the universal AMPS hole pattern. For proper fit, make sure your vehicle has an appropriate bolt to mount the base securely. The RAM-B-316-1-202U is not compatible with 2014 and newer Chevrolet seats that have the seat hook system.

Product Information

Overview

The RAM^® No-Drill^™ RAM-B-316-1-202U vehicle mount consists of the RAM^® POD^™ I base, 18” rigid aluminum rod, B Size 1" ball socket arm, and a round ball plate. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device an ideal viewing and operating angle. The 2.5" diameter round base adapter contains the universal AMPS hole pattern. For proper fit, make sure your vehicle has an appropriate bolt to mount the base securely. The RAM-B-316-1-202U is not compatible with 2014 and newer Chevrolet seats that have the seat hook system.

Specifications
hardware included	Assembly Hardware
product dimensions	Overall Height: 21"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.35 lb

RAM<sup>®</sup> Pod<sup>™</sup> I Vehicle Mount with 18" Aluminum Rod and Round Plate - B Size

Questions about our products? Email us for support.

Patented

RAM^® Pod^™ I Vehicle Mount with 18" Aluminum Rod and Round Plate - B Size

Part#: RAM-B-316-1-202U

UPC: 793442921193

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$48.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM^® device holders
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

product dimensions:

Overall Height: 21"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size:

2.5" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.35 lb

Print

Instructions

RAM Pod I Universal No-Drill Instructions
