Overview

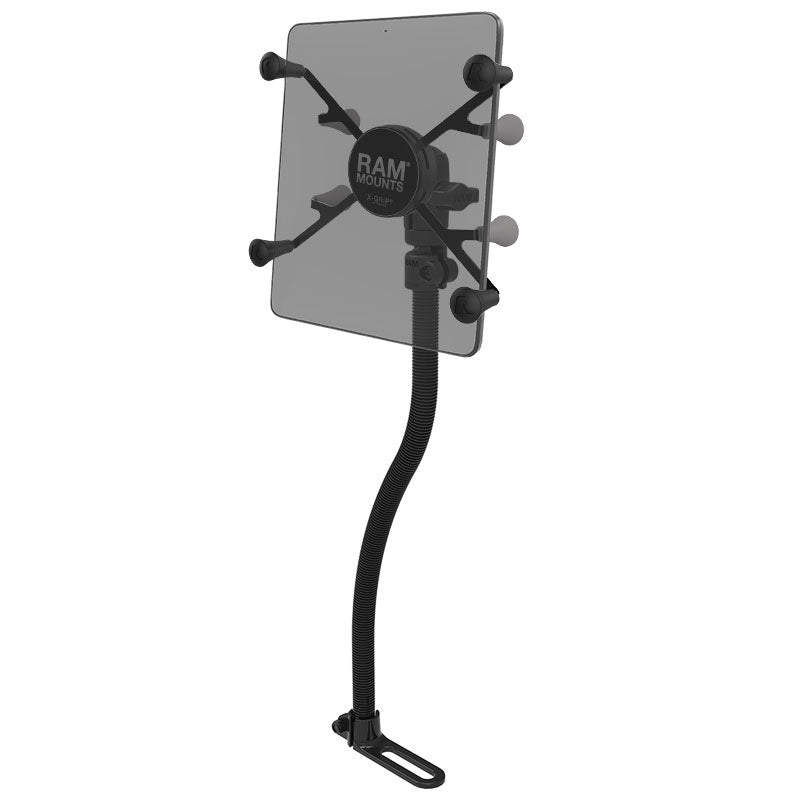

The RAM-B-316-1-UN8B consists of the RAM POD I universal No-Drill™ vehicle base, 18" rigid aluminum rod, socket system and universal spring loaded X-Grip® cradle for 7"-8" tablets. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminum rod can be bent to position your device to its optimum viewing location. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
- Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7"-8" tablets and includes optional device tether for peace of mind during rugged use
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps
holder dimensions:
Width Range: 2.5" - 5.75"
Depth Range: .875" max
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Box
Weight:
3.25 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
I noticed my tablet can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
