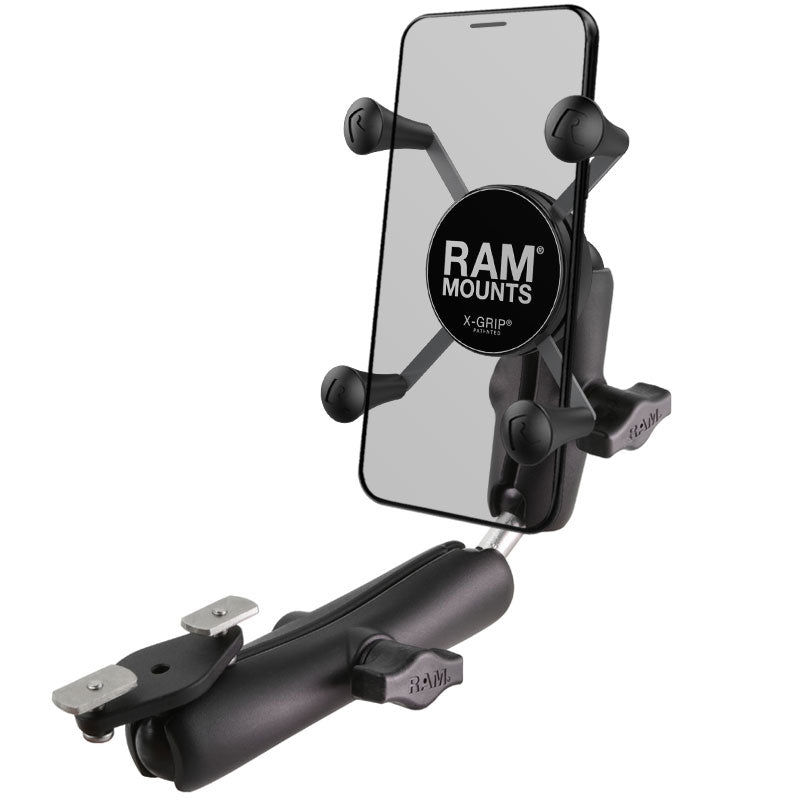

RAM® X-Grip® Phone Mount for Wheelchair Armrests
Part #: RAM-B-238-WCT-2-UN7 UPC: 793442008115 Patented

Product Information
Overview	This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the armrest on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included long double socket arm, double ball adapter, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.

Product Information

Overview

This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the armrest on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included long double socket arm, double ball adapter, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.

Specifications
hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps (2) #10-32 T-Nuts (2) #10-32 Flat Weld Nuts (2) #10-32 x 1/2" Machine Screws (2) M4 x 12mm Machine Screws (2)M4 x 20mm Machine Screws (2) M4 Stainless Steel Washers (2) M4 Nylock Nuts
holder dimensions	Width Range: 1.875" - 3.25" Depth Range: .875" max
t bolt dimensions	Large: .48" x .95" Small: .375" x .593"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite Stainless steel
packaging type	Retail Bag
Weight	1.32 lb

RAM® X-Grip® Phone Mount for Wheelchair Armrests

Patented

RAM® X-Grip® Phone Mount for Wheelchair Armrests

Part#: RAM-B-238-WCT-2-UN7

UPC: 793442008115

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$121.49

Options

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts

holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

t bolt dimensions:

Large: .48" x .95"
Small: .375" x .593"

hole pattern:

2-Hole AMPS: 1.912"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Stainless steel

packaging type:

Retail Bag

Weight:

1.32 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Wheelchair Ball

Documents

Drawing File - Diamond Ball Plate

Wheelchair Mount Compatibility Guide
