$44.49
Short Arm

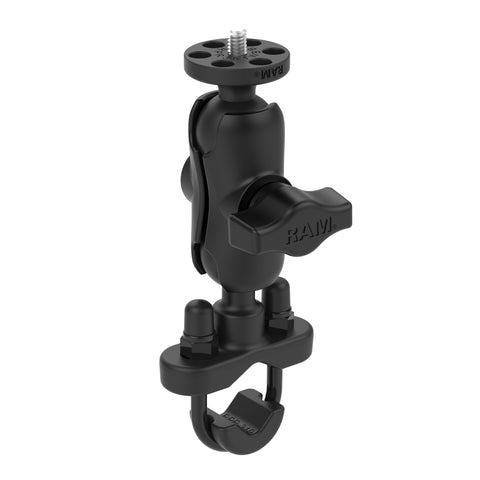

RAM® Handlebar U-Bolt Mount with 1/4"-20 Threaded Stud - Short
Part#:RAM-B-231Z-A-366U UPC:793442932007 Patented
The RAM-B-231Z-A-366U consists of a zinc coated u-bolt base, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The composite rail adapter can narrow the rail to a minimum width of 0.5". The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.51 lb

Components

RAM® Ball Adapter with 1/4"-20 Threaded Stud for Action Cameras - B Size RAP-B-366U $12.49
RAM® Double Socket Arm - B Size Short RAM-B-201U-A $17.49
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU $19.99
