RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - B Size

Part #: RAM-B-231U UPC: 793442002229 Patented

Features

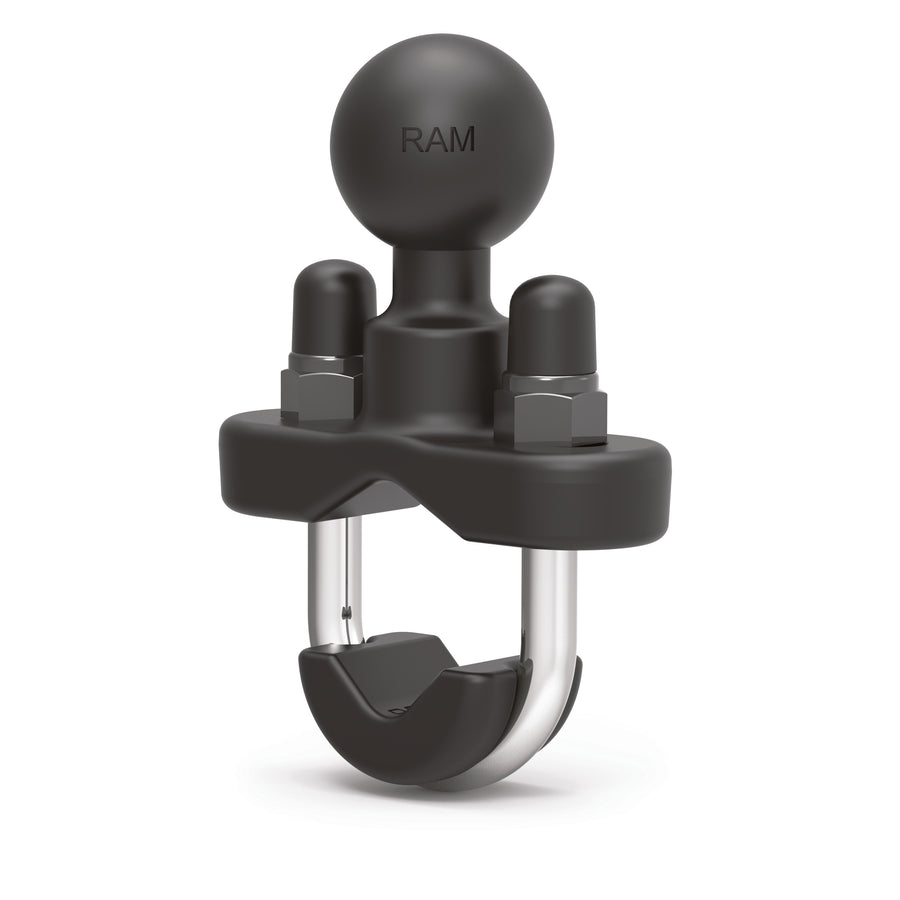

Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Handlebar U-Bolt Base for Rails 0.5

Product Information

Overview

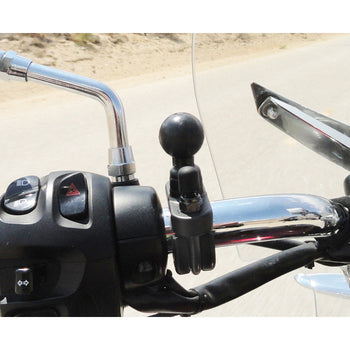

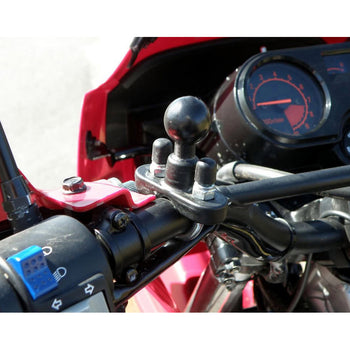

The RAM® Handlebar U-Bolt Base (RAM-B-231U) is a rugged mounting base designed for rails 0.5" to 1" in diameter, with an integrated B size rubber ball. This base is compatible with all B size socket arms. The stainless steel u-bolt is secured to rails or handlebars by two nylock nuts and comes with an optional composite adapter that narrows the attachment to the minimum compatible rail width of .5". Cover the end of the u-bolt with the included two rubber caps, ensuring no clothing or equipment get snagged.

Specifications
hardware included	(1) 1/4"-20 U-Bolt for .5" - 1" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.22 lb

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - B Size

Patented

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - B Size

Name: RAM® Handlebar U-Bolt Base for Rails 0.5" to 1" in Diameter - B Size
Brand: RAM Mounts
SKU: RAM-B-231U
Price: 23.49 USD
Availability: InStock

Part#: RAM-B-231U

UPC: 793442002229

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
