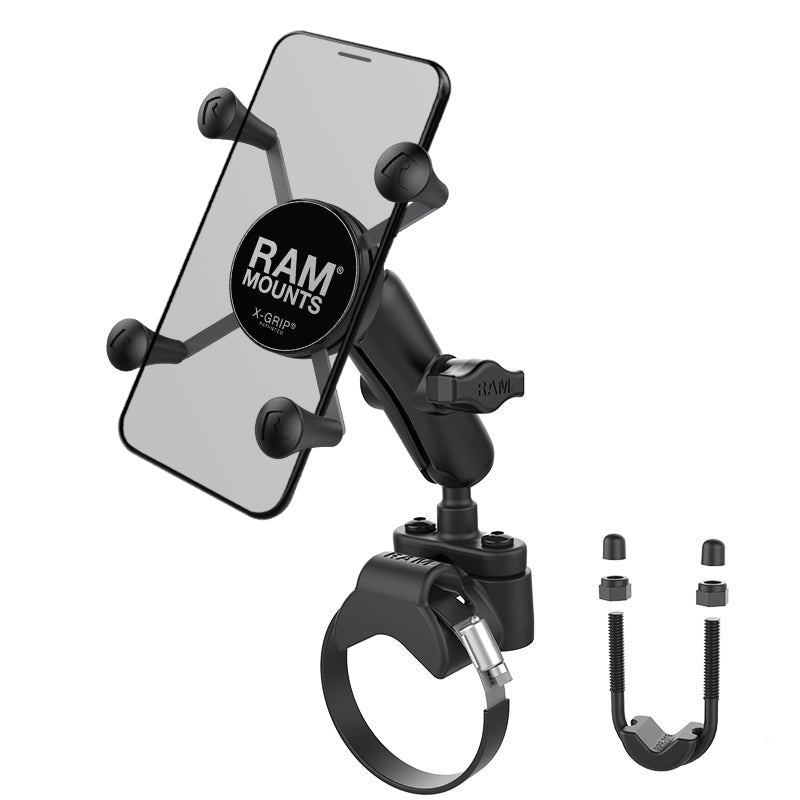

RAM® X-Grip® Phone Mount with ATV/UTV Rail Base
Part#: RAM-B-231-2-UN7U
UPC: 793442951992
Ball Icon B Size
Arm Icon Medium Arm
$79.49

Overview

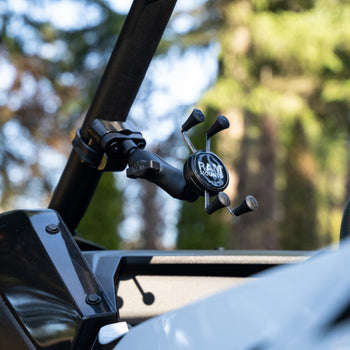

The RAM-B-231-2-UN7U consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

  • Phone mount for ATV/UTVs includes standard size phone holder, rail and bar base with strap clamp and U-bolt components

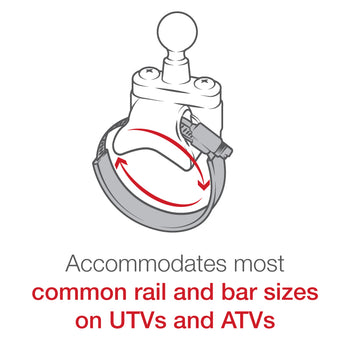

  • RAM® strap mount will accommodate most common roll bar sizes on UTV and handlebar sizes on ATVs
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

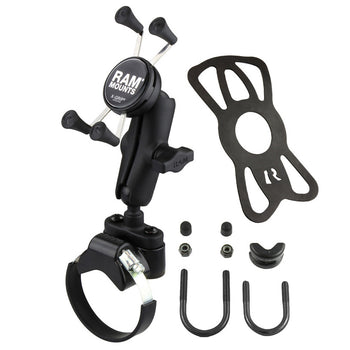

hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions:

Width Range: 1.875" - 3.25"
Depth Range: .875" max

clamp range:

U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Stainless steel

packaging type:

Poly Bag

Weight:

0.9 lb

Additional Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
