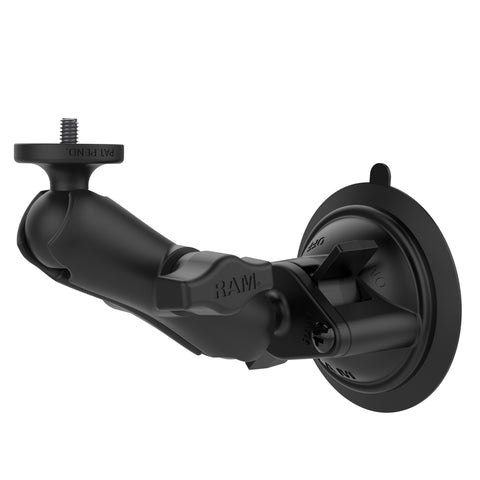

RAM® Twist-Lock™ Suction Cup Mount with 1/4"-20 Camera Adapter - Short
$47.99
Short Arm

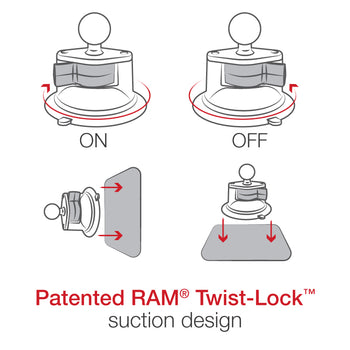

The RAM-B-224-1-A-366U consists of a 3.3" suction cup twist lock base, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
RAM® Twist-Lock™ Suction Cup Mount with 1/4"-20 Camera Adapter - Short
Overview
The RAM-B-224-1-A-366U consists of a 3.3" suction cup twist lock base, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
hardware included
Assembly Hardware
suction size
3.3" Diameter
socket to socket length
1.75"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.48 lb
Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
