RAM® Ball Adapter for Lowrance Eagle 4 & 5, Hook² & Reveal - B Size
Part #: RAM-B-202-LO12 UPC: 793442956089 Patented

Product Information

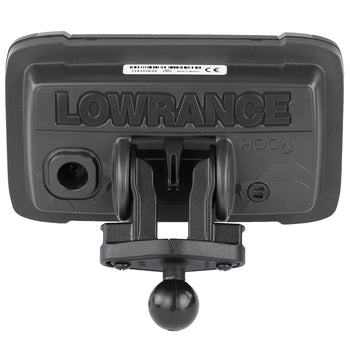

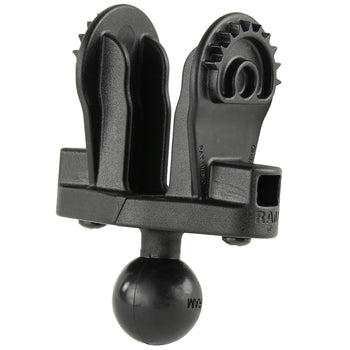

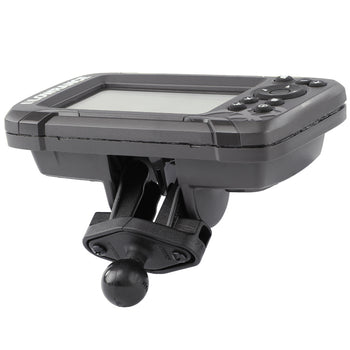

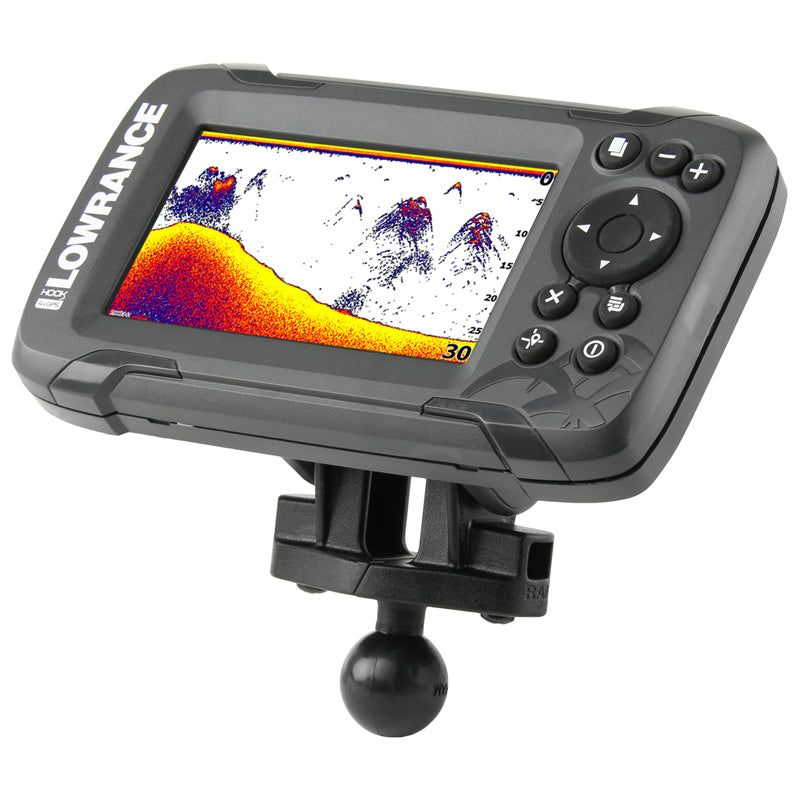

Overview	Designed for light duty use, this B size (1”) ball base kit for the Lowrance Eagle 4 & 5 and Hook² allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook² and you're ready to connect to a variety of compatible RAM mounting solutions. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Eagle 4 & 5 and Hook² secure and stable in rugged environments on your kayak or inflatable.

Product Information

Overview

Designed for light duty use, this B size (1”) ball base kit for the Lowrance Eagle 4 & 5 and Hook² allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Eagle 4 & 5 and Hook² and you're ready to connect to a variety of compatible RAM mounting solutions. Made of high strength composite and powder coated marine grade aluminum, this kit is designed to keep your Eagle 4 & 5 and Hook² secure and stable in rugged environments on your kayak or inflatable.

Specifications
hardware included	Assembly Hardware
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.21 lb

RAM® Ball Adapter for Lowrance Hook² & Reveal Series - B Size

Questions about our products? Email us for support.

Patented

RAM® Ball Adapter for Lowrance Eagle 4 & 5, Hook² & Reveal - B Size

Part#: RAM-B-202-LO12

UPC: 793442956089

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
