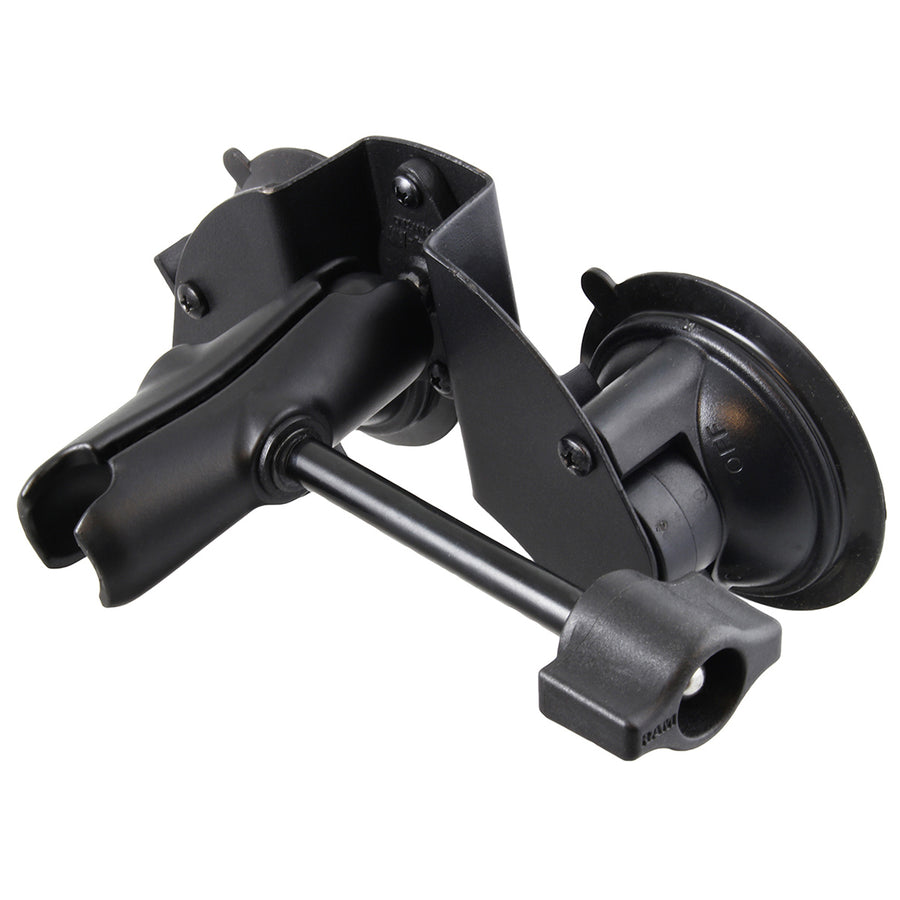

RAM® Twist-Lock™ Dual Suction Cup Base with Socket Arm & Retention Knob
Part #: RAM-B-189B-201-ALA1-KRU UPC: 793442124662 Patented

Product Information

Overview

The RAM-B-189B-201-ALA1-KRU consists of a double 3.3" twist lock suction cup base that is connected to the diamond base with 1" rubber ball. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface. The ball on this base connects to the standard length double socket arm with retention knob. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. The knob extension allows for easy adjustment of the mount and prevents over loosening of the knob. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware
suction size	(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.23 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Patented

RAM® Twist-Lock™ Dual Suction Cup Base with Socket Arm & Retention Knob

Name: RAM® Twist-Lock™ Dual Suction Cup Base with Socket Arm & Retention Knob
Brand: RAM Mounts
SKU: RAM-B-189B-201-ALA1-KRU
Price: 121.49 USD
Availability: InStock

Part#: RAM-B-189B-201-ALA1-KRU

UPC: 793442124662

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
