RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 7"-8" Tablets

Part#: RAM-B-189-UN8-ALA1-KRU UPC: 793442102325 Patented

$162.99

RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 7"-8" Tablets

Part#:RAM-B-189-UN8-ALA1-KRU UPC:793442102325 Patented

Overview

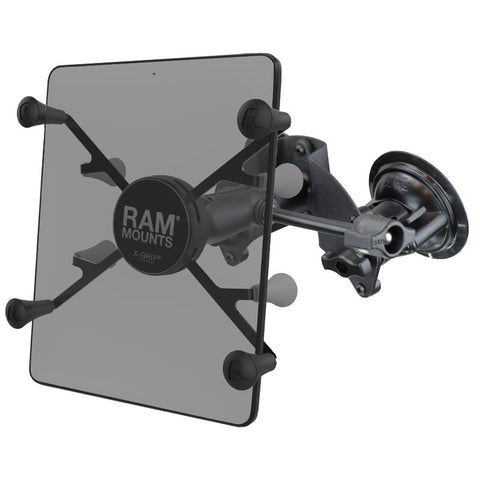

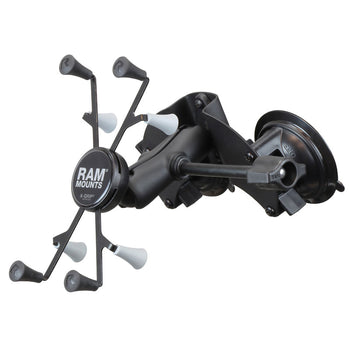

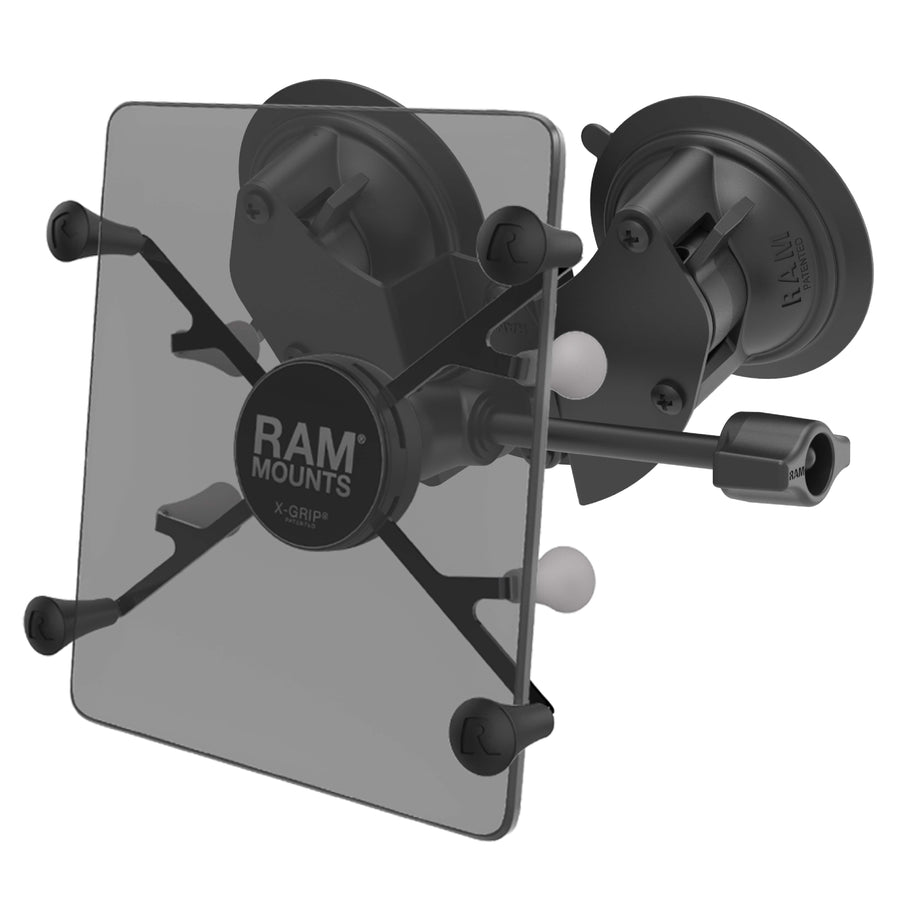

The RAM-B-189-UN8-ALA1-KRU consists of a double 3.3" twist lock suction cup base, STANDARD length double socket arm, easy access retention knob and universal spring loaded X-Grip® cradle for 7"-8" tablets. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-189-UN8-ALA1-KRU expands and contracts for perfect fit of most 7"-8" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

hardware included

Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions

Width Range: 2.5" - 5.75"
Depth Range: .875" max

suction size

(2) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.6 lb

Additional Information

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
