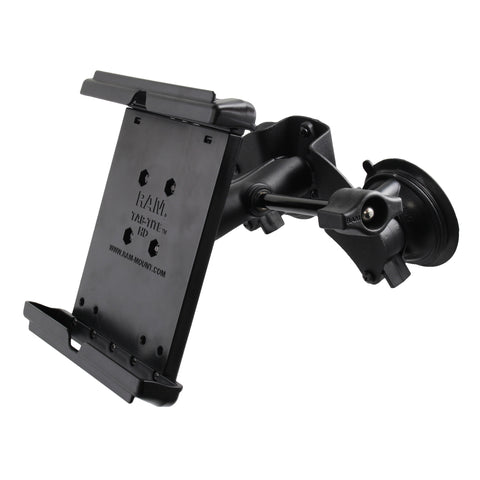

RAM^® Tab-Tite^™ with RAM^® Twist-Lock^™ Dual Suction for 8" Tablets
Part #: RAM-B-189-TAB12-ALA1-KRU UPC: 793442102554 Patented

Product Information
Overview	The RAM-B-189-TAB12-ALA1-KRU consists of a double twist lock suction cup base, diamond base adapter in a recessed pocket for a lower profile, double socket arm with aviation extended retention knob, and Tab-Tite^™ universal clamping cradle. The Tab-Tite^™ backplate features interchangeable end cups, making it modular making it compatible with numerous tablet models. The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Product Information

Overview

The RAM-B-189-TAB12-ALA1-KRU consists of a double twist lock suction cup base, diamond base adapter in a recessed pocket for a lower profile, double socket arm with aviation extended retention knob, and Tab-Tite^™ universal clamping cradle. The Tab-Tite^™ backplate features interchangeable end cups, making it modular making it compatible with numerous tablet models. The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 7.125" - 9.5" Width Range: 5.06" - 5.68" Depth Range: .13" - 1"
suction size	(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	2.03 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

RAM<sup>®</sup> Tab-Tite<sup>™</sup> with RAM<sup>®</sup> Twist-Lock<sup>™</sup> Dual Suction for 8" Tablets

Questions about our products? Email us for support.

Patented

RAM^® Tab-Tite^™ with RAM^® Twist-Lock^™ Dual Suction for 8" Tablets

Part#: RAM-B-189-TAB12-ALA1-KRU

UPC: 793442102554

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

Apple

iPad mini (A17 Pro) with Case

iPad mini 6 with Case

Amazon

Fire 7 Kids

Fire HD 8 Kids

Fire HD 8 with Case

ASUS

MeMO Pad 8 with Case

VivoTab 8 with Case

Dell

Venue 8 with Case

Venue 8 (2014) with Case

Venue 8 7840 with Case

Venue 8 Pro with Case

Huawei

MediaPad M3 with Case

MediaPad M3 Lite with Case

MediaPad T1 8.0 with Case

MediaPad T3 8 with Case

Lenovo

Ideapad Miix 300 with Case

IdeaTab A2107 with Case

Tab 2 A8 with Case

Tab 4 8 with Case

Tab 4 8 Plus with Case

Tab A8-50 with Case

Tab S8 with Case

Tab3 8 with Case

LG

G Pad F 8.0 (2nd Gen) with Case

G Pad F2 8.0 with Case

G Pad II 8.0 with Case

G Pad X II 8.0 with Case

Nvidia

Shield Tablet with Case

Panasonic

Toughpad FZ-M1

Samsung

Galaxy Tab 2 7.0 with Case

Galaxy Tab 3 8.0 with Case

Galaxy Tab A 8.4 with Case

Galaxy Tab A7 Lite 8.7 with Case

Galaxy Tab E 8.0 with Case

Galaxy Tab Pro 8.4 with Case

Social

Mobile Rhino T80

Additonal Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

$157.49
