B Size
Medium Arm
RAM® X-Grip® with RAM® Twist-Lock™ Pivot Suction for 9"-11" Tablets
B Size
Medium Arm
$196.49
Overview

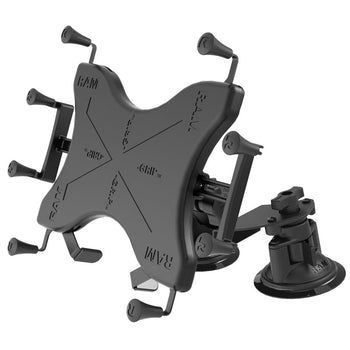

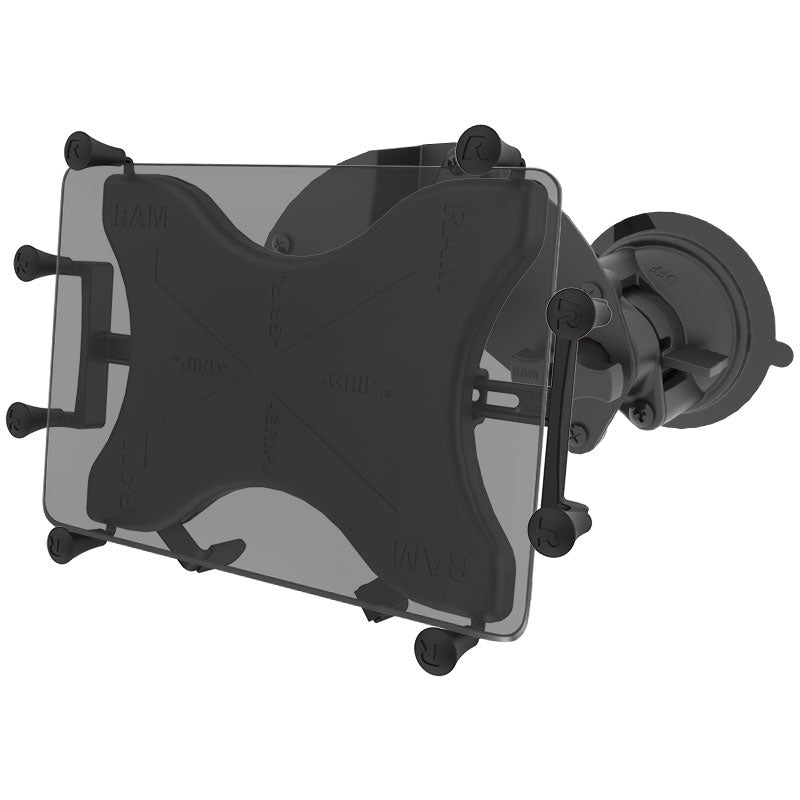

The RAM-B-189-PIV1-UN9-KRU consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 9"-11" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

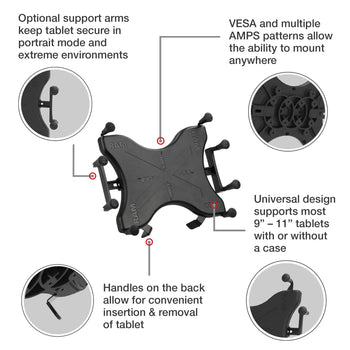

Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composite and steel components for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
hardware included:
Assembly Hardware

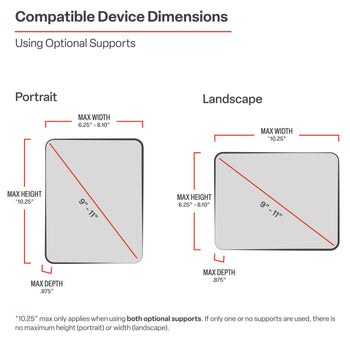

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
suction size:
(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Powder coated steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
2.75 lb
Additional Information:
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
Questions & Answers
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?
In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
This part says it has a maxium height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets
-
This part says it has a maximum height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets
