RAM^® EZ-Roll'r^™ with RAM^® Twist-Lock^™ Dual Suction for iPad mini 1-3
Part #: RAM-B-189-AP14-ALA1-KRU UPC: 793442009174 Patented & Pats. Pend.

Product Information

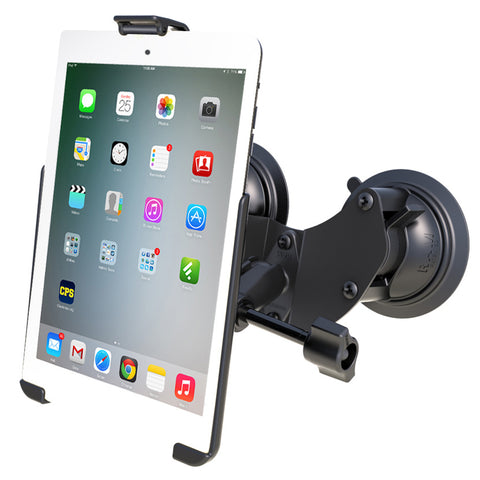

Overview	The RAM-B-189-AP14-ALA1-KRU consists of a double twist lock suction cup base, STANDARD length double socket arm, round base adapter, extended retention knob and EZ-Roll’r^™ model specific cradle for the Apple iPad mini. With a twist lock feature for easy installation and removal of the mount, this go anywhere product is the perfect tablet accessory for all mounting applications. For safety, accessibility, and ease of adjustment for perfect viewing angles, you'll find nothing compares to the design of our patented double socket arm. Renowned for its simplicity and ease of use, this elegant design is just one of many features that sets RAM apart.

Product Information

Overview

The RAM-B-189-AP14-ALA1-KRU consists of a double twist lock suction cup base, STANDARD length double socket arm, round base adapter, extended retention knob and EZ-Roll’r^™ model specific cradle for the Apple iPad mini. With a twist lock feature for easy installation and removal of the mount, this go anywhere product is the perfect tablet accessory for all mounting applications. For safety, accessibility, and ease of adjustment for perfect viewing angles, you'll find nothing compares to the design of our patented double socket arm. Renowned for its simplicity and ease of use, this elegant design is just one of many features that sets RAM apart.

Specifications
hardware included	Assembly Hardware
suction size	(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.76 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM^® warranty policy here.

RAM<sup>®</sup> EZ-Roll'r<sup>™</sup> with RAM<sup>®</sup> Twist-Lock<sup>™</sup> Dual Suction for iPad mini 1-3

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® EZ-Roll'r^™ with RAM^® Twist-Lock^™ Dual Suction for iPad mini 1-3

Part#: RAM-B-189-AP14-ALA1-KRU

UPC: 793442009174

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
