$42.49
Short Arm

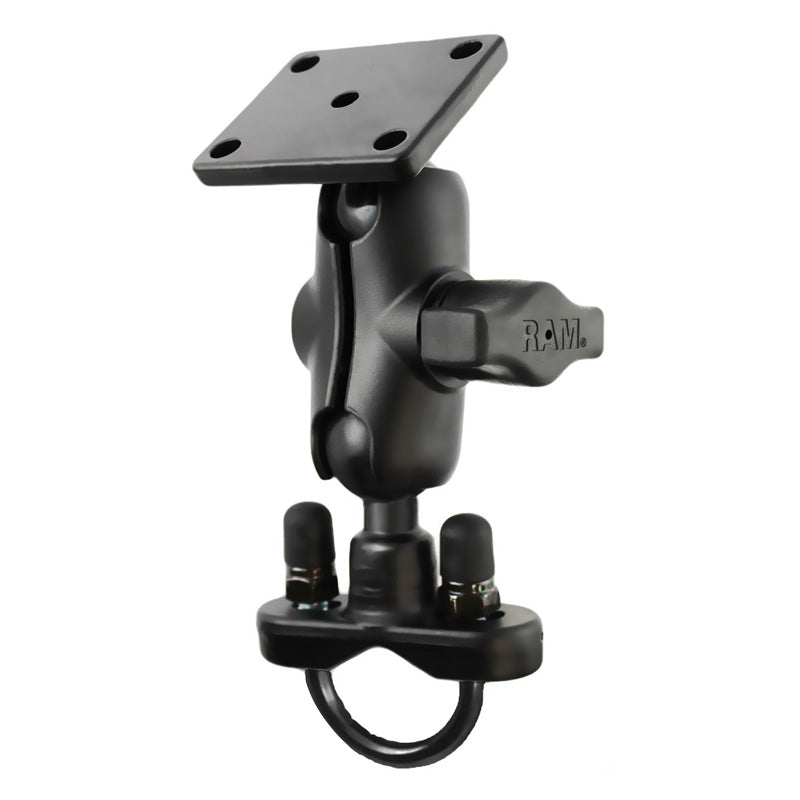

RAM® Handlebar U-Bolt Mount for Garmin zumo 400-660 - Short
Part#:RAM-B-184U-A UPC:793442927171 Patented
The RAM-B-184U consists of a zinc coated u-bolt base, double socket arm and 2" x 1.7" rectangular base that contains the universal AMPs hole pattern. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the short length double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

1.75"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.56 lb

Components

RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU $19.99
RAM® Double Socket Arm - B Size Short RAM-B-201U-A $17.49
RAM® Ball Adapter with AMPS Plate - B Size RAM-B-347U $10.49
