RAM® ATV/UTV Rail Mount with 9mm Angled Bolt Head Adapter - Medium Arm
$54.99

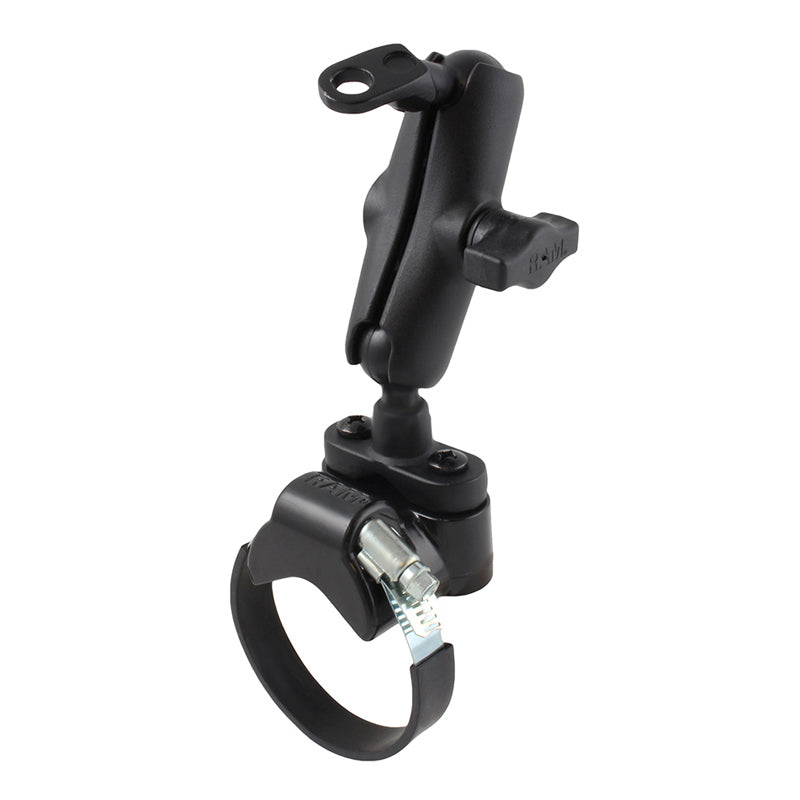

The RAM-B-180-231Z-2NUBU consists of a steel strap base, u-bolt bases, double socket arm and 1" diameter ball base with 9mm hole. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
RAM® ATV/UTV Rail Mount with 9mm Angled Bolt Head Adapter - Medium Arm
Overview
The RAM-B-180-231Z-2NUBU consists of a steel strap base, u-bolt bases, double socket arm and 1" diameter ball base with 9mm hole. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV's, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATV's using the included hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
hardware included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range
1.57" - 3.15"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.7 lb
