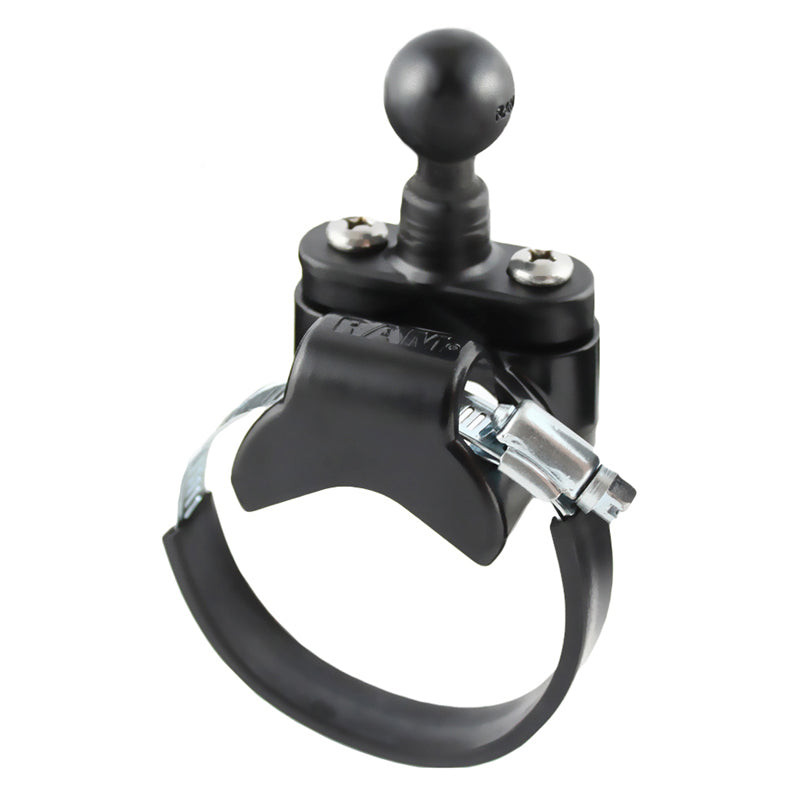

RAM® ATV/UTV Rail Base with no U-Bolts
Part #: RAM-B-231Z-2NUBU UPC: 793442941047

Product Information
Overview	Designed for a clean installation, the RAM-B-231Z-2NUBU accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. With the ball base in place, you have the foundation for mounting everything from GPS, Cell Phones, Radios, or maybe the famous RAM self-leveling drink cup holder. No matter what you choose to do with it, you'll wonder why your UTV or ATV didn't come from the factory with this must-have product.

Product Information

Overview

Designed for a clean installation, the RAM-B-231Z-2NUBU accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. With the ball base in place, you have the foundation for mounting everything from GPS, Cell Phones, Radios, or maybe the famous RAM self-leveling drink cup holder. No matter what you choose to do with it, you'll wonder why your UTV or ATV didn't come from the factory with this must-have product.

Specifications
hardware included	(1) Strap Clamp Adapter (2) 1/4"-20 x 1" Machine Screws (2) 1/4"-20 Nylock Nuts (1) Zinc Worm Drive Strap Clamp (1) 6" Rubber Strip
clamp range	1.57" - 3.15" diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.36 lb

Questions about our products? Email us for support.

RAM® ATV/UTV Rail Base with no U-Bolts

Part#: RAM-B-231Z-2NUBU

UPC: 793442941047

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
