Overview

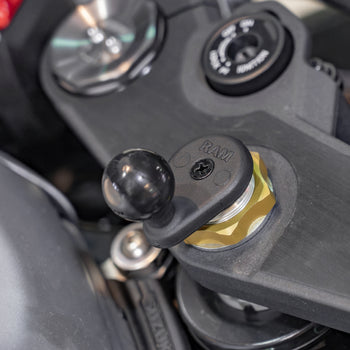

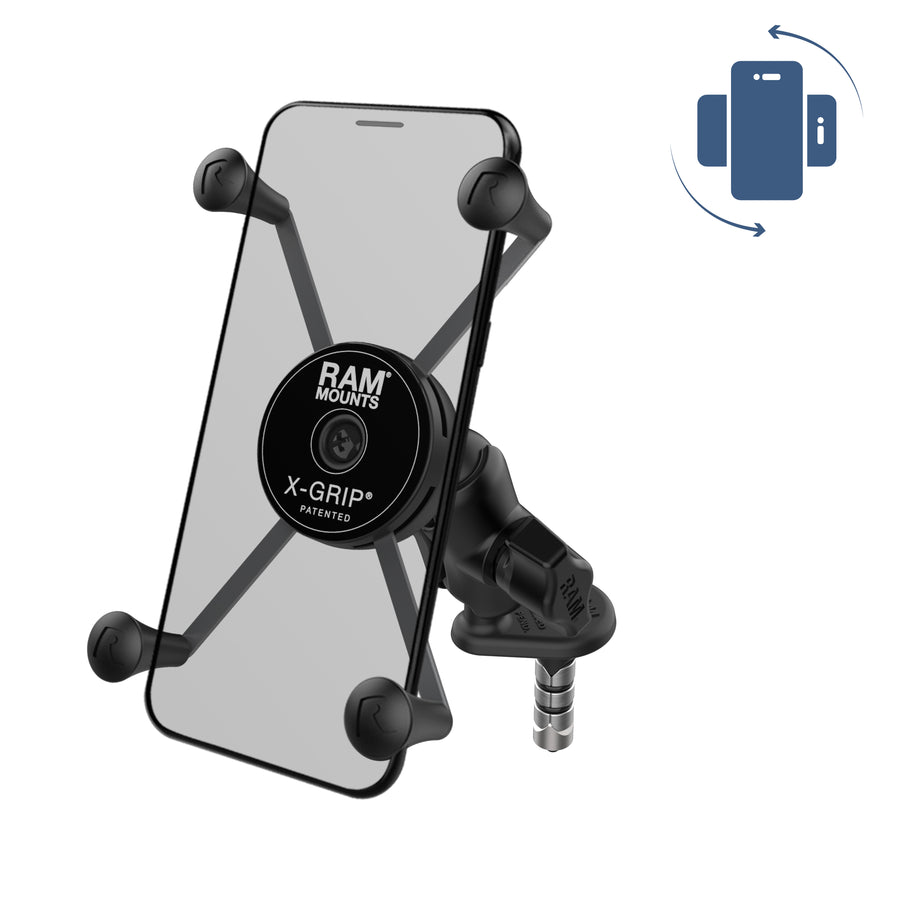

The RAM® Rotating X-Grip® Large Phone Holder with Fork Stem Base - Short (RAM-B-176W1-A-UN10RU) is a combination of the RAM® Rotating X-Grip® Large Phone Holder with Motorcycle Fork Stem Wedge Base. The included fork stem wedge base is a low-profile mounting base designed to attach directly to the cylindrical bore wall of motorcycle fork stems that measure 12mm to 18.75mm in diameter, keeping your device front and center. The RAM® Rotating X-Grip® features the popular spring-loaded 'X' design that expands and contracts to provide a perfect fit for your device and pairs it with rotating hardware, allowing users to pivot their device between landscape and portrait orientations.This product comes with one (1) short B-size arm and one (1) RAM® Motorcycle Fork Stem Wedge Ball Base - 12-18.75mm, and an optional device tether that is recommended for open cockpits and outdoor applications. This large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width - It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

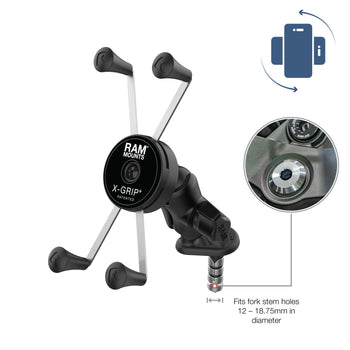

- Designed to fit into the cylindrical bore wall of fork stems 12-18mm

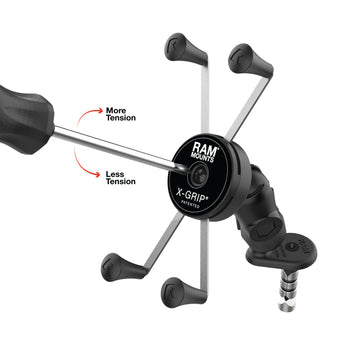

- Easily rotate device without having to loosen the double socket arm
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Small Wedge Assembly
(1) #10-24 x 2" Screw
(1) #10-24 Wedge Nut
holder dimensions:
Width Range: 1.75" - 4.5"
Depth Range: .875" max
wedge dimensions:
12-18mm
socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.67 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
