Overview

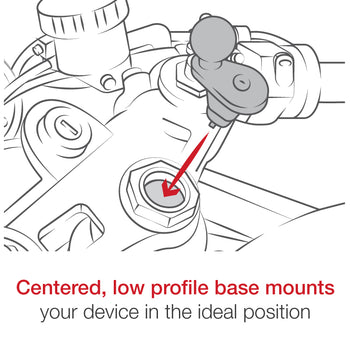

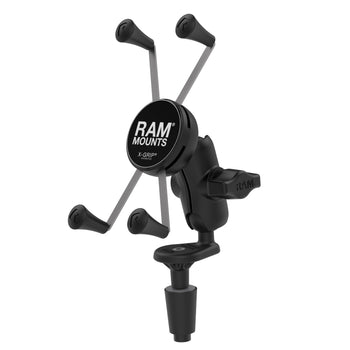

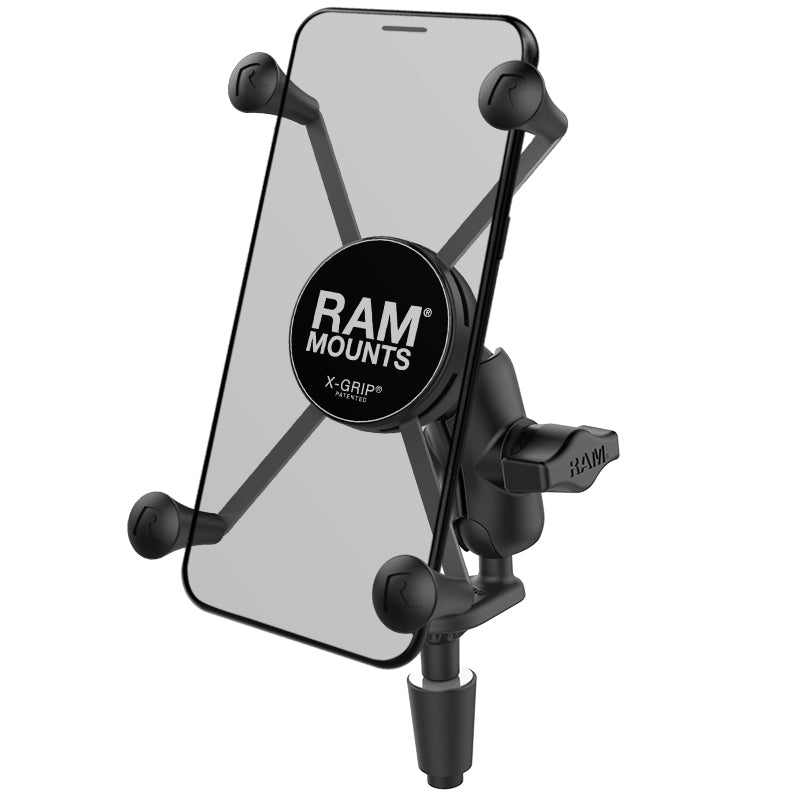

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN10U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps

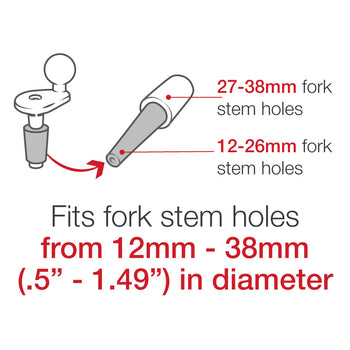

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nyloc Nut
holder dimensions:

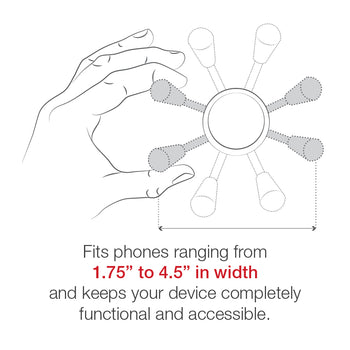

Width Range: 1.75" - 4.5"
Depth Range: .875" max

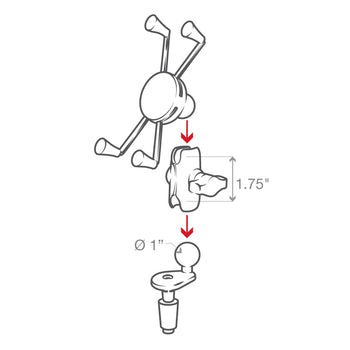

socket to socket length:
1.75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.7 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
Instructions
Documents
QUESTIONS & ANSWERS
Have a Question?
-
I don't see my phone listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this holder in the product information section. If you want to make sure your tablet will fit in this holder you can measure your tablet to make sure it falls within the compatible dimensions.
-
Hi I have a question, will the Fork Stem Base fit in my Kawasaki Ninja 300 fork stem base?
It is universal and will fit if your fork stem hole is between 0.5" and 1.49" in diameter.
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
