$85.99
Brake/Clutch Reservoir Mount

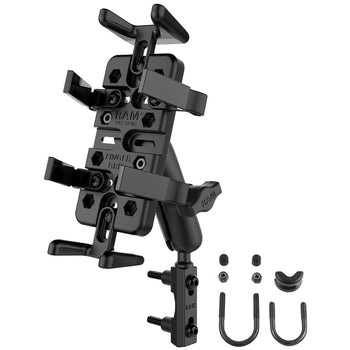

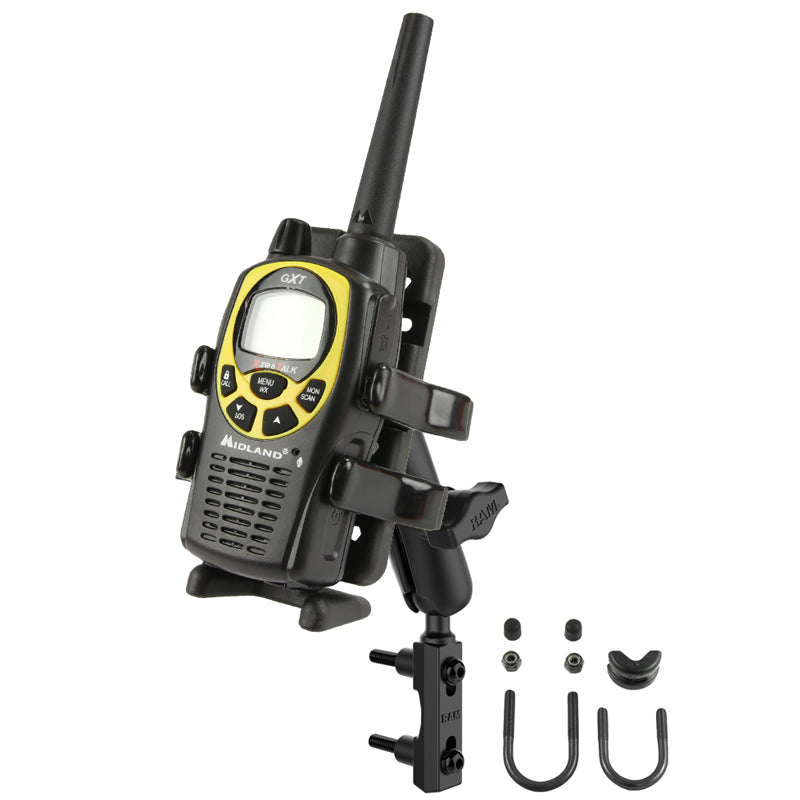

RAM® Finger-Grip™ Universal Mount with Brake/Clutch Reservoir Base
Part#:RAM-B-174-UN4U UPC:793442910524 Patented

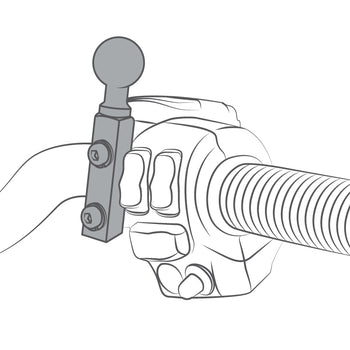

The RAM-B-174-UN4U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, diamond adapter base and high strength universal Finger Grip™ cradle. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

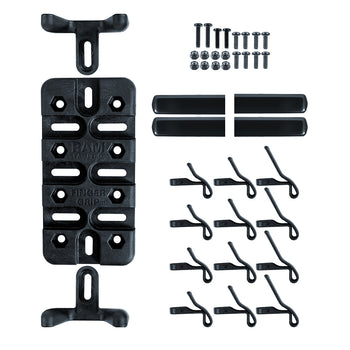

hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions

Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.22 lb

Components

RAM® Finger-Grip™ Universal GPS and Radio Holder RAM-HOL-UN4U $36.99
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium RAM-B-174U $49.49
