RAM® Motorcycle Brake/Clutch Reservoir Mount for Garmin 12 Series
$57.49

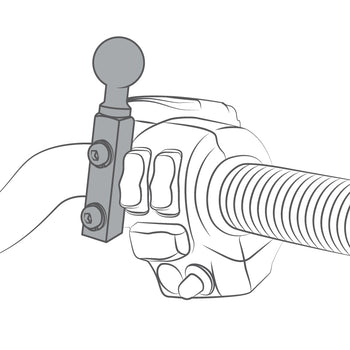

Brake/Clutch Reservoir Mount
The RAM-B-174-G1U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and our 2.5" diameter round plate with universal AMPS Hole pattern and hardware for Garmin Street Pilot III and GPSMAP 172-250.
RAM® Motorcycle Brake/Clutch Reservoir Mount for Garmin 12 Series
Overview
The RAM-B-174-G1U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and our 2.5" diameter round plate with universal AMPS Hole pattern and hardware for Garmin Street Pilot III and GPSMAP 172-250.

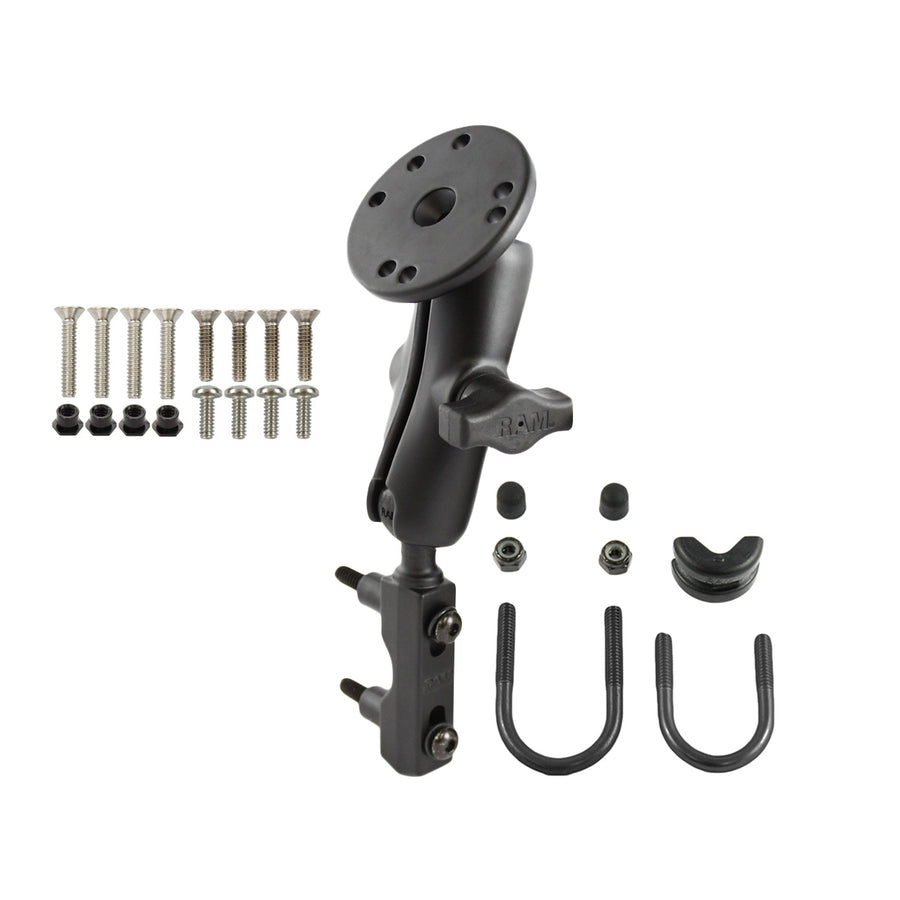

hardware included
(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.69 lb
