RAM® EZ-Roll'r™ Powered Suction Cup Mount for Samsung XCover Pro

Part #: RAM-B-166-SAM9PU UPC: 793442010224 Patented & Pats. Pend.

Features

Powered cradle designed specifically for the Samsung Galaxy XCover Pro

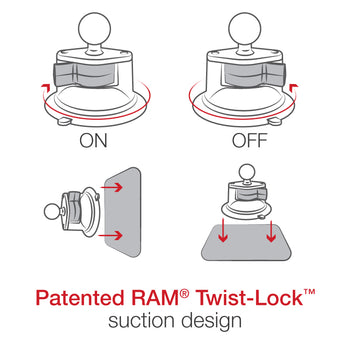

Includes a diamond ball base, medium length RAM® double socket arm, and RAM® Twist-Lock™ suction cup; ball and socket technology allows for near-infinite adjustability
Cradle made of high-strength composites for durability and reliability in the most demanding environments
Mounting components backed by a lifetime warranty; electronic components backed by a 3-year warranty*

RAM® EZ-Roll'r™ Powered Suction Cup Mount for Samsung XCover Pro

Product Information

Overview

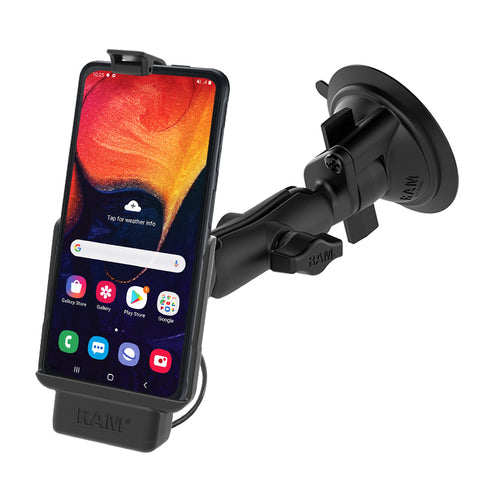

This RAM® EZ-Roll’r™ powered cradle is designed specifically for the Samsung Galaxy XCover Pro, and features two integrated pogo pins that provide charging capabilities to the device. While keeping the XCover Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s buttons and cameras exposed and usable. Ideal for windshield mounting, this kit also includes a diamond ball base, medium length RAM® double socket arm, and a RAM® Twist-Lock™ suction cup. The RAM® EZ-Roll’r™ powered cradle for the Samsung Galaxy XCover Pro includes a USB Type-A male pigtail for power, and is compatible with the GDS® 2-port USB cigarette charger as well as the GDS® modular hardwire charger with USB Type-A female connector.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Warranty	3 year warranty
Weight	0.98 lb
Additional Information	The headphone jack of the Samsung XCover Pro is blocked while in the powered dock. *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Patented & Pats. Pend.

RAM® EZ-Roll'r™ Powered Suction Cup Mount for Samsung XCover Pro

Name: RAM® EZ-Roll'r™ Powered Suction Cup Mount for Samsung XCover Pro
Brand: RAM Mounts
SKU: RAM-B-166-SAM9PU
Price: 133.99 USD
Availability: InStock

Part#: RAM-B-166-SAM9PU

UPC: 793442010224

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
