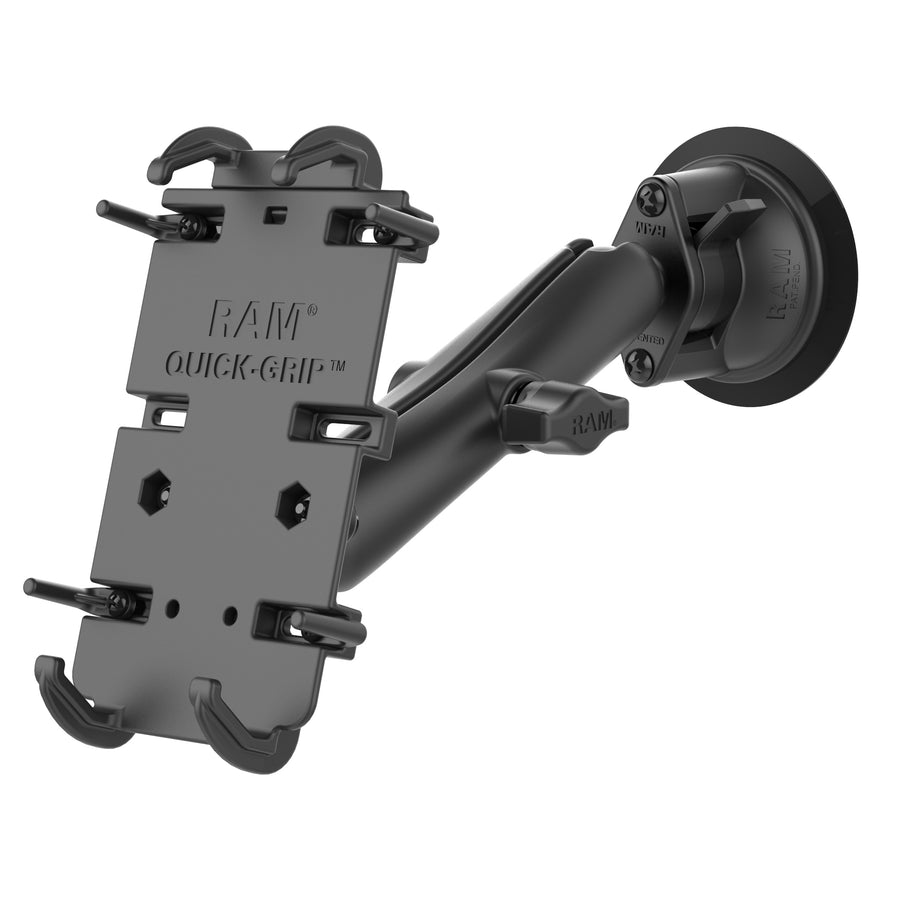

RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Long

Part #: RAM-B-166-C-PD4U UPC: 793442015441 Patented

Features

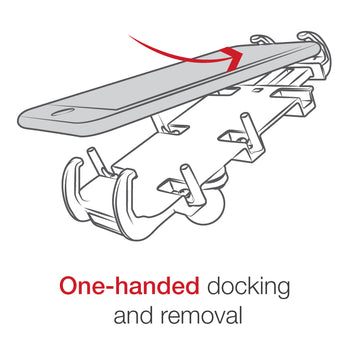

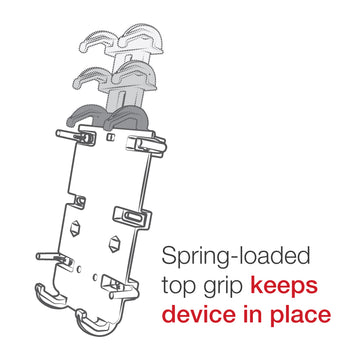

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
Kit includes RAM® Quick-Grip™ XL Holder for large phones with a case, B size diamond ball base, long double socket arm and RAM® Twist-Lock™ Suction Cup base

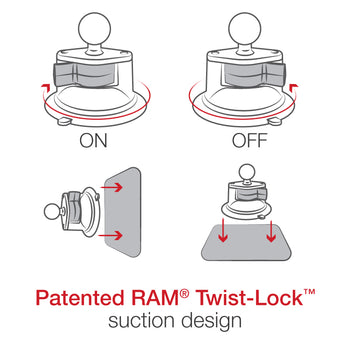

RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Long

Product Information

Overview

This suction cup mount for vehicle windshields includes the spring-loaded RAM® Quick-Grip™ XL holder providing a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that the device stays in place during rough driving and when in landscape mode. Included is a long B size socket arm, B size RAM® diamond ball base with 1" diameter ball and included hardware. Make sure to thoroughly clean the surface you will be mounting the suction cup to ensure a secure hold.

Specifications
hardware included	Assembly Hardware
holder dimensions	Height Range: 5.75" - 7.25" Width Range: 2.625" - 3.625" Max Depth: .72"
suction size	3.3" Diameter
socket to socket length	5.31"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Warranty	3 year warranty
Weight	1.24 lb
Additional Information	Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Patented

RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Long

Name: RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Long
Brand: RAM Mounts
SKU: RAM-B-166-C-PD4U
Price: 82.49 USD
Availability: InStock

Part#: RAM-B-166-C-PD4U

UPC: 793442015441

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
