RAM® Twist-Lock™ Suction Cup for TomTom Rider 2 & Urban Rider - Long
Part #: RAM-B-166-C-347U-TOM1 UPC: 793442945069 Patented

Product Information

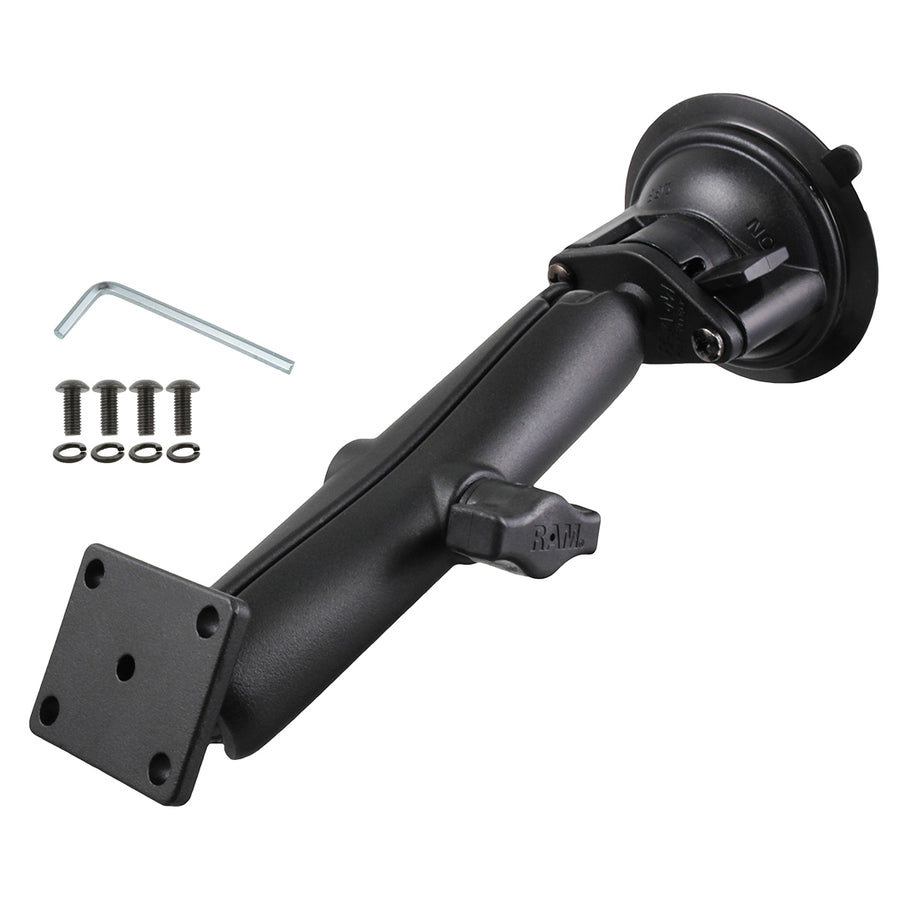

Overview	The RAM-B-166-C-347U-TOM1 consists of a long length B-size arm with a suction cup base and recatgular base with Universal AMPS hole pattern. This mount also includes all of the hardware needed to bolt that rectangular base to a TomTom Rider 2 or Urban Rider.

Specifications
hardware included	Assembly Hardware (4) M5 x 12mm Machine Screws (4) M5 Stainless Steel Lock Washers (1) M3 Hex Key Wrench
product dimensions	Overall Height: 9"
suction size	3.3" Diameter
socket to socket length	5.31"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.92 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Suction Cup for TomTom Rider 2 & Urban Rider - Long

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Suction Cup for TomTom Rider 2 & Urban Rider - Long

Part#: RAM-B-166-C-347U-TOM1

UPC: 793442945069

B Size

Long Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$61.99
